- Light Source:LED
- Item Type:Explosion-proof Lights
- Color Temperature(CCT):Cool White
- IP Rating:IP67
- Certification:CCC
- Certification:CE
- Certification:C-tick
- Certification:EMC
- Certification:FCC
- Certification:LVD
- Certification:PSE
- Certification:RoHS
- Certification:SAA
- Certification:UL
- Emitting Color:White
- Base Type:FESTOON
- Place of Origin:CN;GUA
- LED Light Source:Bridgelux/Cree
- Input Voltage(V):100-277
- Lamp Power(W):180
- Lamp Luminous Flux(lm):20700
- Lamp Luminous Efficiency(lm/w):115
- CRI (Ra>):73
- Working Temperature(℃):-40 - 40
- Working Lifetime(Hour):100000
- Brand Name:CESP
1. CESP is a specilized LED EXPLOSION PROOF LIGHT manufacturer in the passed 8 years, with CE/ROHS/UL/CUL/DLC/SAA/PSE certification, and most important, ATEX and CNEX explosion proof certification.
2. Now we have UL844(class 1 division 2) explosion proof certification, which means we are the only manufacturer who owns these qualifications at the same time.
3. By now we have a whole series LED EXPLOSION PROOF LIGHTS (CES-J), including 20W-185W wide power range and various installation brackets, and also customizable product color. can satisfy most of the hazardous area lighting application.
Key features:
-Die-cast aluminum by 1800 Ton of pressure to make the body strong enough.
-Powder Coated (similar to vehicles coating) and holder are cover with a thin layer of Zink, color can be ---customizable.
-IP 68, highest rating of protection.
-Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.
-5 year warranty.
-Best driver: Meanwell HLG driver.
Main Technology | |
LED Chips: | BridgeLux LED chips packaged professionally ensure the light source kept in optimum performance; mirror surface processed technology collect and reflect the invalid light into efficiency; use of lens controls the horizontal and vertical beam angle actively. |
Power Supply: | To use world’s leading brand MeanWell power supply ensure the fixture works in stableness with better performance and enjoy its long life; power supply is CE RoHS TUV CB certificated. |
Heat Dissipation: | LEDs combined with aluminum radiator directly and closely make the LEDs have better performance of heat dissipation; sufficient area of aluminum radiator and full range air permeability of the fixture reduce the optical attenuation and control LEDs failure. |
Specification:

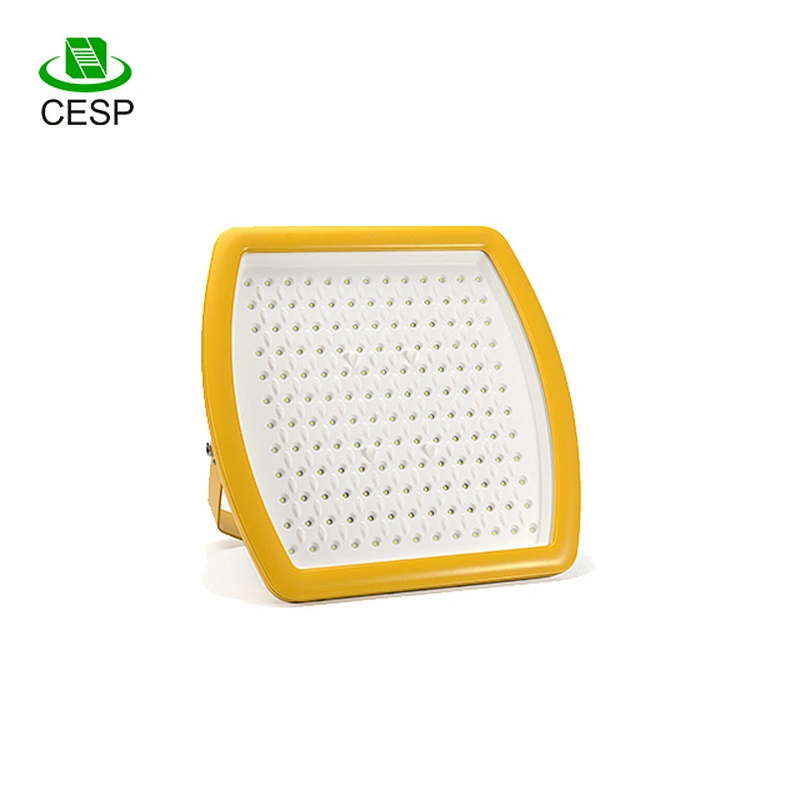

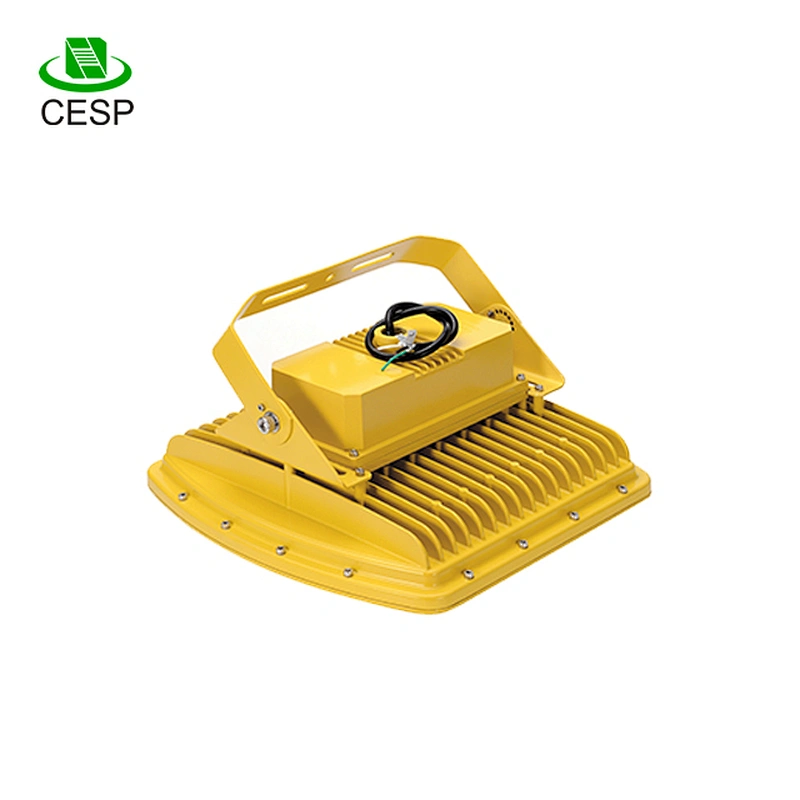

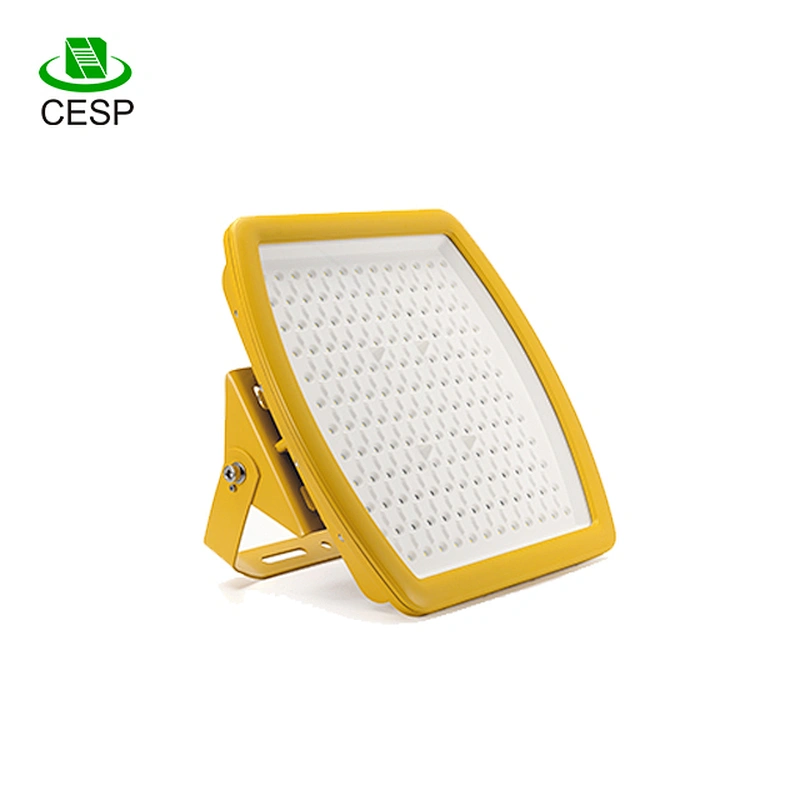

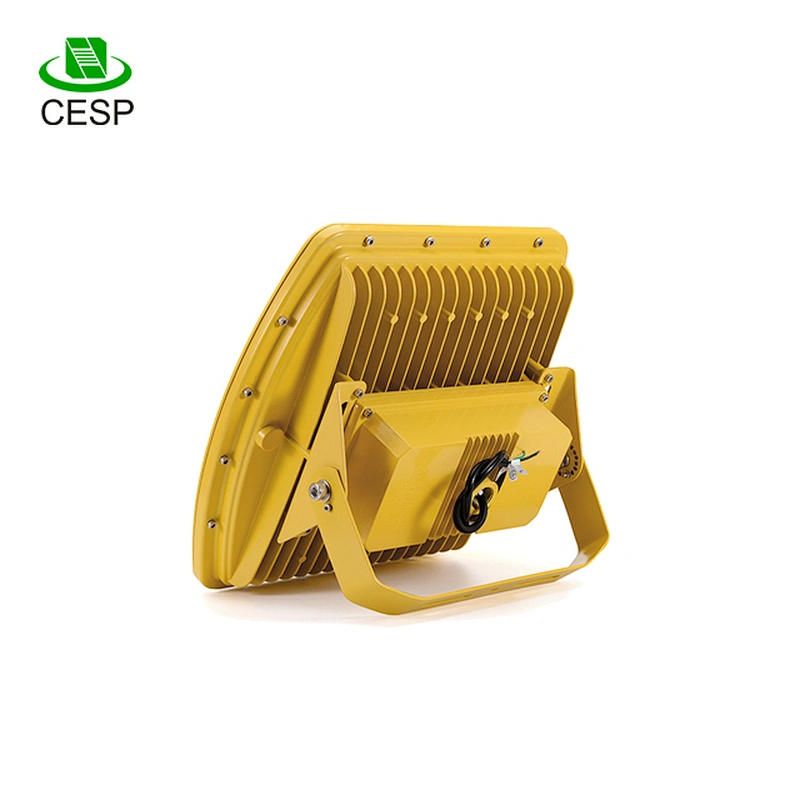

Product image:
Certification:
Application:
Packing: one in a carton, filled in foam ;
Dimension of the carton: 460*460*240mm
Weight: 11.5kg
Shipment: express, by air ,by sea
Shenzhen CESP Co.,LTD is one high quality explosion proof LED light factory ISO9001&ISO14001 certified.
Our factory has one whole industrial park CESP ,more than 20000m2 with one in-house UL authorized lab.
All UL witness testing and IES testing can be done in our factory.
We have UL844,UL1598A ,DLC ,IECEX ,ATEX for our hazardous location lights.
Every year, we attend large lighting fairs in US/ Canada such as 2018 OTC in Houston, US and our booth was Arena 5625.
IES files are available for Dialux .
For any inquiries about lighting in EX areas , just come to us and we will offer the complete solutions for you.
