- Item Type:Flood Lights
- Place of Origin:CN;GUA
- Brand Name:spirit
- IP Rating:IP68
- Lamp Luminous Flux(lm):9840
- Light Source:Fluorescent
- CRI (Ra>):70
- Working Temperature(℃):-40 - 60
- Working Lifetime(Hour):100000
- Certification:CE
- Certification:RoHS
- Certification:UL
- Input Voltage(V):100-277V
- Lamp Power(W):120
- Lamp Body Material:Aluminum Alloy
- Model Number:CES-J120-RF
Our goal is to help customers extend business and get success, help human save more energy and help our world get better and better!
Light Source: | LED | Item Type: | HighBayLights | LED Light Source: | Bridge |
Warranty(Years): | 3 | Input Voltage(V): | 100~240V AC | Lamp Power(W): | 65 |
Lamp Luminous Flux(lm): | 6600 | Lamp Luminous Efficiency(lm/w): | 110 | CRI (Ra>): | 75 |
Color Temperature(CCT): | 2700-6500K | Working Temperature(°C): | -35 - +50 | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Aluminum Alloy | IP Rating: | Indoor Use Only | Certification: | CE,RoHS |
Item Number: | MLS-HBD060 | Place of origin: | Hebei, China(Mainland) | Brand: | MingLi |
Material: | Aluminum Alloy & Tempered glass | Application: | Supermarket, Workshop, Factory, Warehouse, etc. | LED Quantity: | 60 |
LED Chip: | Bridgelux |
|
|
|
|
Key features
1. Die-cast aluminum by 1800 Ton of pressure to make the body strong enough.
2. Powder Coated (similar to vehicle’s coating) and holder are cover with a thin layer of Zink, color can be customizable.
3. IP 68, highest rating of protection.
4. Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.
5. 5 year warranty.
6. Best driver: Meanwell driver.
Specificationa:
Input voltage | AC100~277V |
Frequency | 50/60Hz |
Output voltage | DC36-45V |
Power Factor | >0.976 |
Power Efficiency | >90% |
Color Temperature | Warm White: 2700K-4000K Cool White: 5500K-6500K |
Color Rendering Index | CRI≈70 |
Operating Environment: | Ambient Temperature -40°C~+50°C, Correlated humidity 10%~95% |
Protection Grade | IP68 |
LED Chip | USA Bridgelux chip |
LED Life Span | >50000-100,000 hours |
Housing material | ADC12 high thermal conductivity material, anti-dust thermal conductivity coatings |
Protection screen material | 4mm(thickness) toughened glass |
Power Driver | utilizing the wide A/C input voltage, Sonatant Current, lightning protection |
Lamp dimension | 400mm*400mm*185mm |
Net weight | 12.5kg |
Packing Info.
Packing Information | |||
Item Size: | 400*400*185 mm | N.W (Kg): | 12.5 Kg |
Carton Size: | 480*480*260 mm |
| |
Qty per Carton: | 1 Unit / Carton | ||
Illumination Chart:
Illumination Chart | |||
Beam Angle | Height | Central Lux (lx) | Average Cover (M) |
30º*60º | 2.5 M | 1209.5 | 1.3*2.8 |
5 M | 302.4 | 2.6*5.6 | |
7.5 M | 134.4 | 3.9*8.4 | |
10 M | 75.6 | 5.3*11.1 | |
12.5 M | 48.4 | 6.5*13.9 | |
15 M | 33.6 | 7.9*16.7 | |
|
|
| |
|
|
| |
Main Technologies:
Main Technology | |
LED Chips: | BridgeLux LED chips packaged professionally ensure the light source kept in optimum performance; mirror surface processed technology collect and reflect the invalid light into efficiency; use of lens controls the horizontal and vertical beam angle actively. |
Power Supply: | To use world’s leading brand MeanWell power supply ensure the fixture works in stableness with better performance and enjoy its long life; power supply is CE RoHS TUV CB certificated. |
Heat Dissipation: | LEDs combined with aluminum radiator directly and closely make the LEDs have better performance of heat dissipation; sufficient area of aluminum radiator and full range air permeability of the fixture reduce the optical attenuation and control LEDs failure. |
Why us?
1). Original the superconducting heat ADC12 die-cast aluminum arc heat sink system, exponentially increase the natural cooling area, and has super air convection cooling function, effectively extending the lamp life and improve the use of performance.
2). Original designed die casting lamp shell completely closed, and the use of high-performance waterproof and fireproof silicone, protection grade IP68 waterproof anti-leakage effectively prevent the failure occurred, safe and reliable.
Experienced production team and quality control team make sure the better quality.
3). Unique heat sink wash tank design and anti-dust, anti-corrosion material, make lamp shell has a self-cleaning function, effectively prevent the accumulation of dust, grease, to protect lighting performance.
4). Original second optical design of the the integrated overall mirror condenser Cup and diamond-shaped reflector cone, utilized the light energy and greatly enhanced lighting effects.
5). Gas station lights, tunnel lights, stadium lights series by the Chinese explosion-proof certification, and has passed CE, ROHS certification.

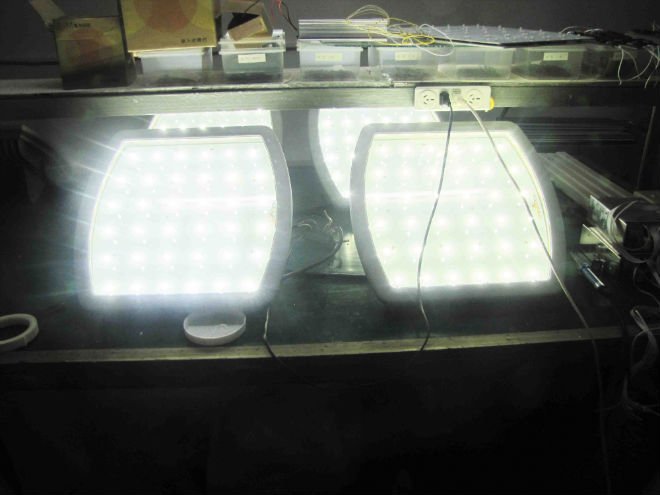

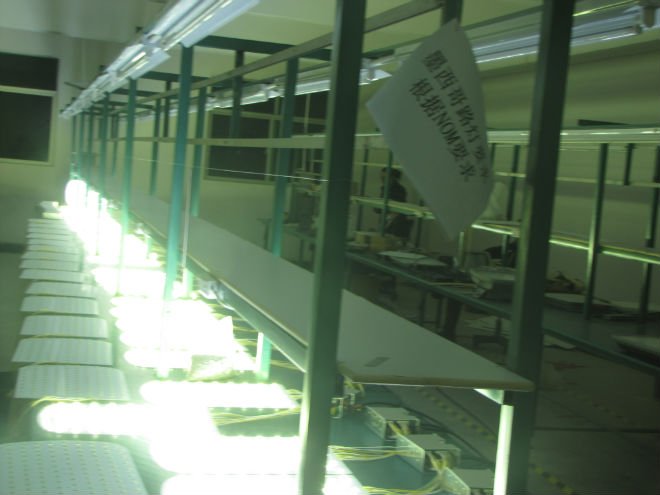

FACTORY PICTURE:

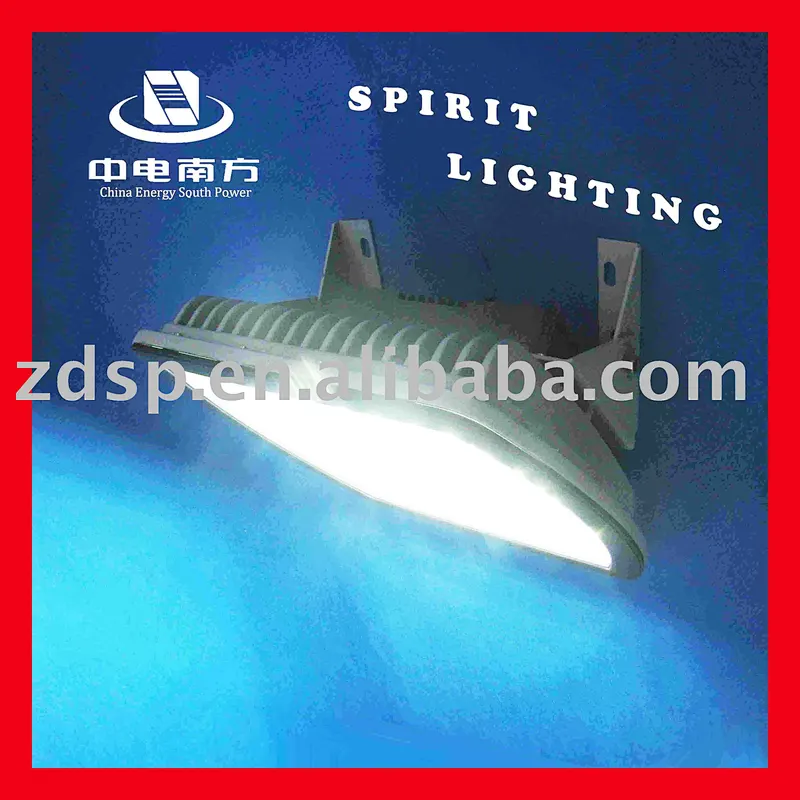

PRODUCT PICTURE
