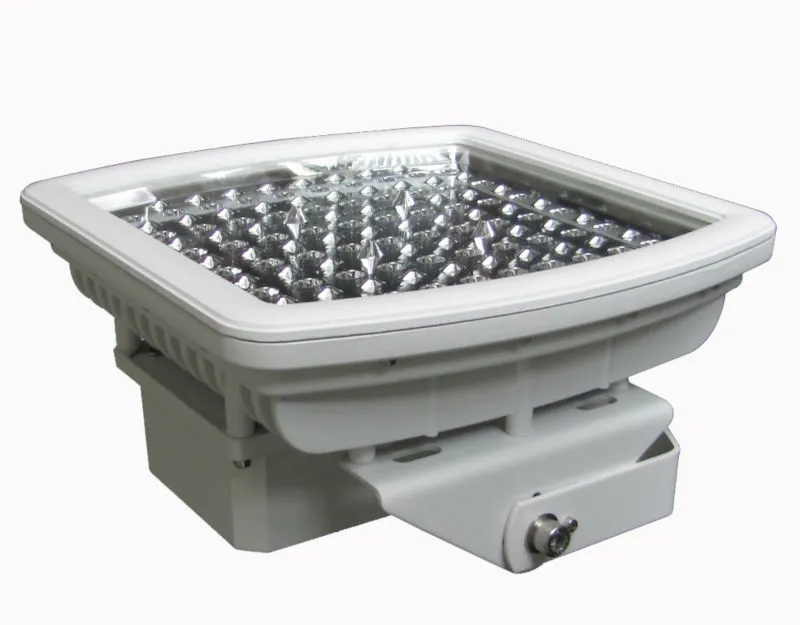

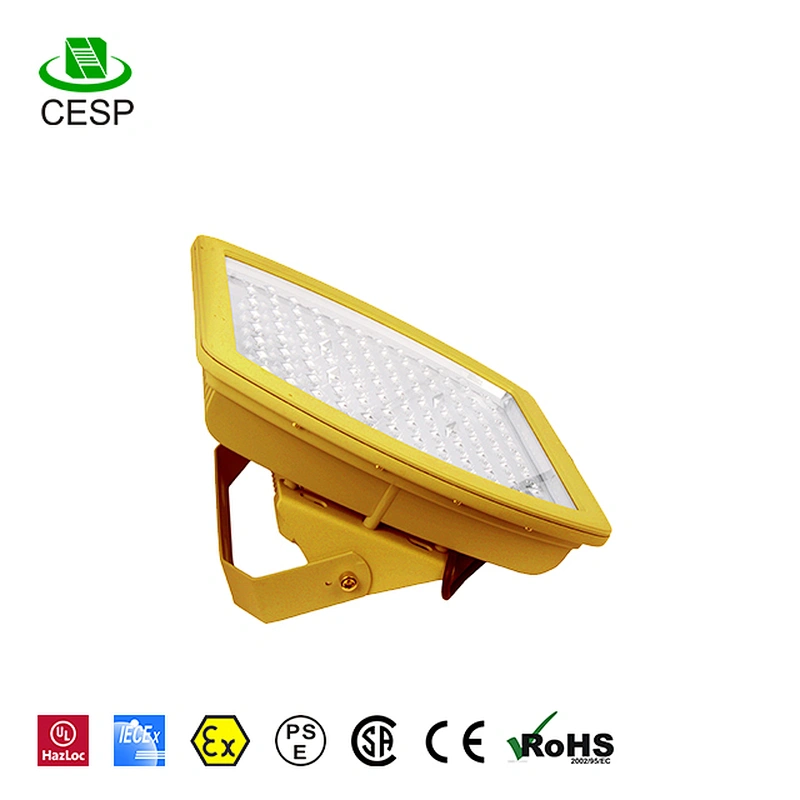

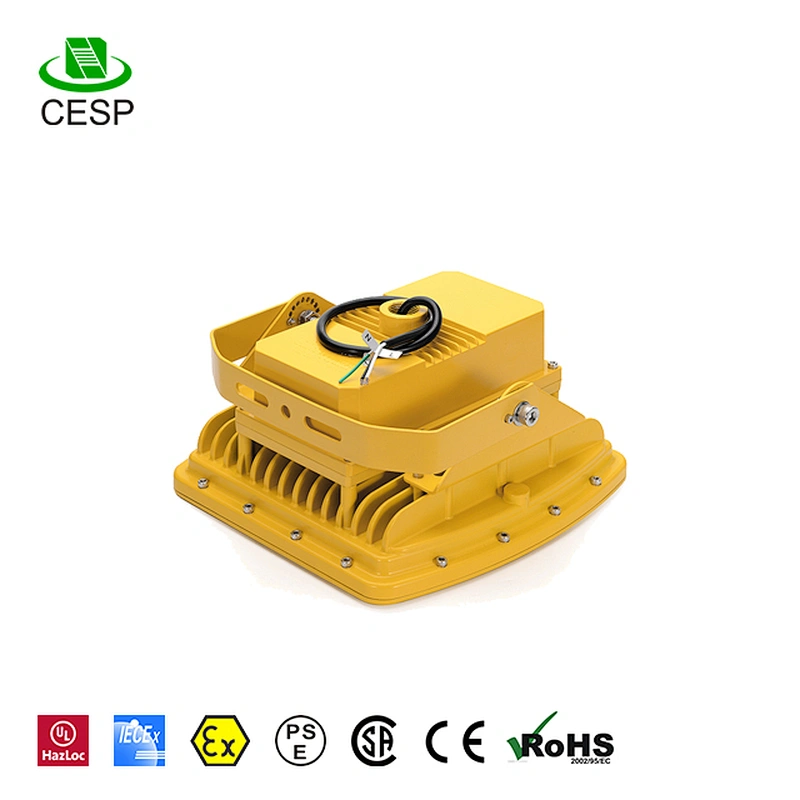

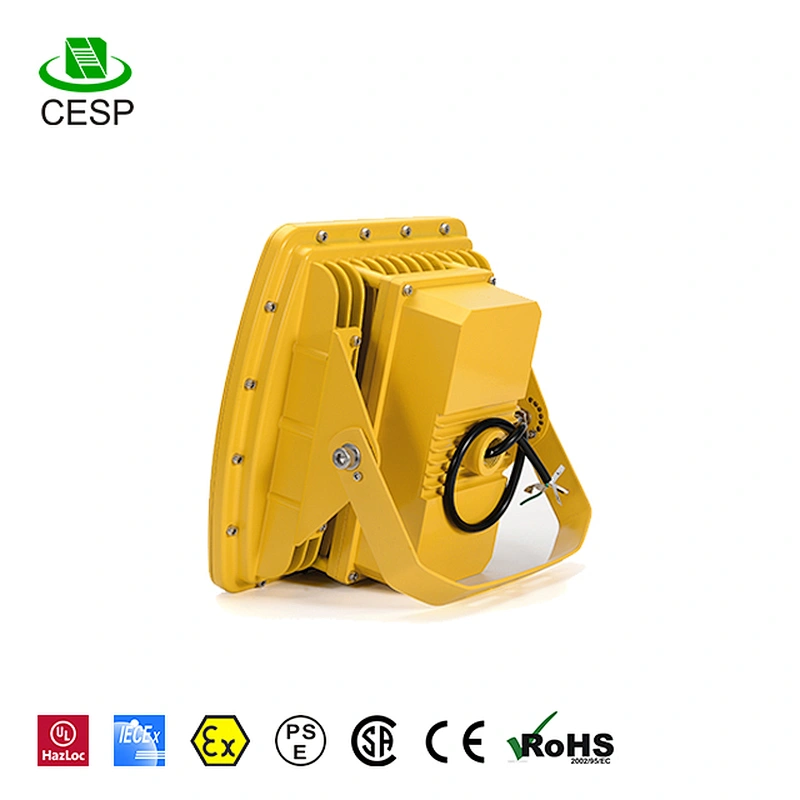

- Type:led canopy light

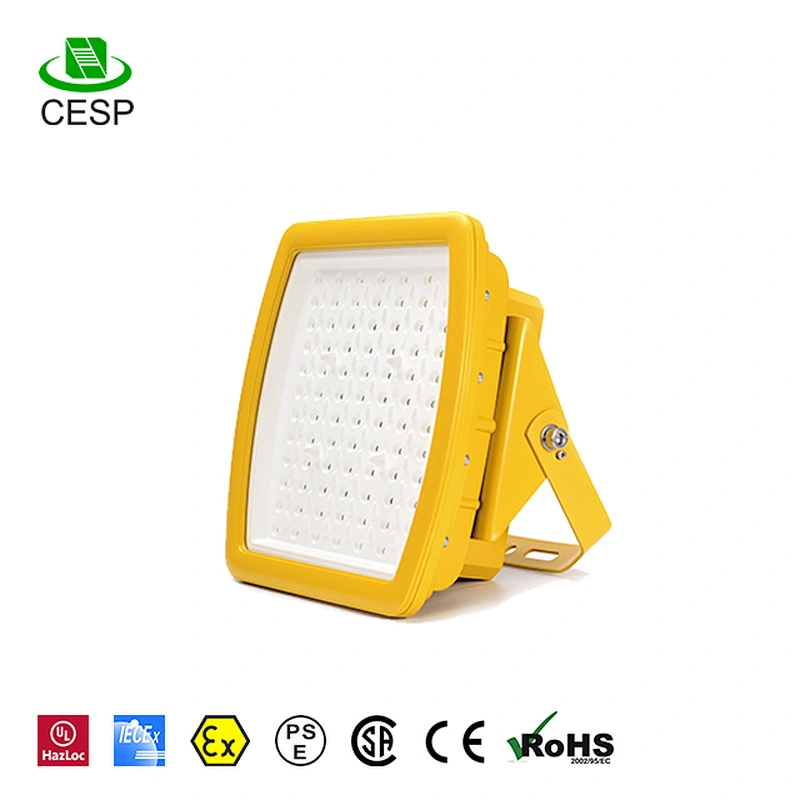

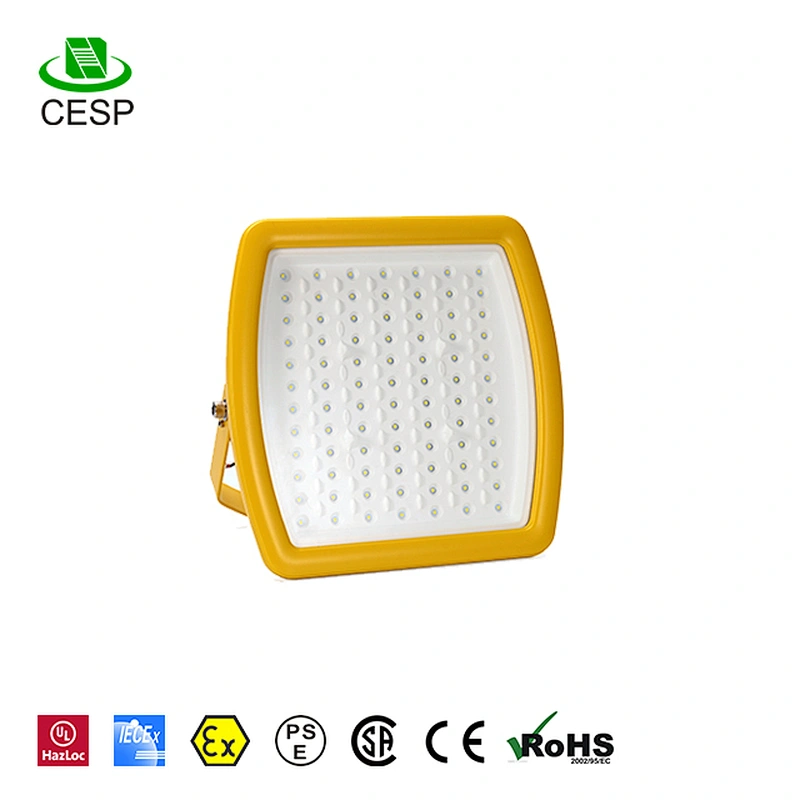

2014 hot sale UL CUL CE ROHS DLC petrol station led canopy lights 20w-150w
Key features;

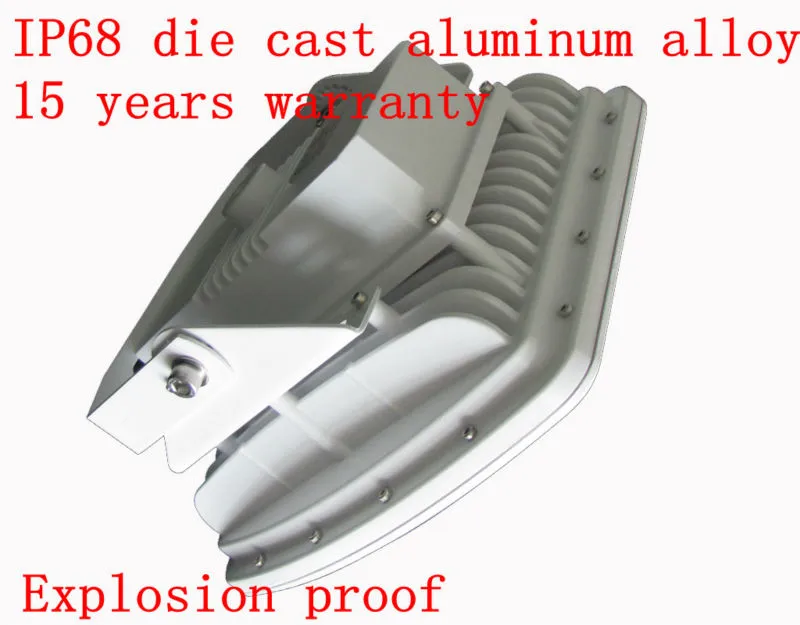

- Die-cast aluminum by 1800 Ton of pressure to make the body strong enough.
- Powder Coated (similar to vehicle’s coating) and holder are cover with a thin layer of Zink, color can be customizable.
- IP 68, highest rating of protection.
- Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.
- 5 year warranty.
- Best driver: Meanwell driver.
Specificationa:
Total Power Consume | 120w |
Whole Fixture Lumen | 10800 lm |
LED Chip/Brand | Bridgelun or Cree |
LED Efficacy | 120lm-130lm@350Ma |
Illuminant | Equal to HPS 400-500w |
Input voltage | AC100~277V |
Frequency | 50/60Hz |
Power Factor | >0.976 |
Driver Efficiency | >90% |
Color Rendering Index | CRI≈70 |
Color Temperature | Warm White: 2700K-4000K Cool White: 5500-6500K |
Driver | Meanwell HLG Series |
Protection Grade | IP68 |
Body Material | Die Cast Aluminum |
Dimension | 300*300*175mm |
Packing Size | 370*370*230mm |
Feature | Anti Explosive: Class E – Gas filled environment- ExemⅡT6 Gc e class |
Operating Environment: | -40°C~+50°C, |
LED Chip | USA Bridgelux chip or Cree chip |
LED Life Span | >50,000-100,000 hours |
Housing material | ADC12 high thermal conductivity material, anti-dust thermal conductivity coatings |
Protection screen material | 4mm(thickness) toughened glass |
Net weight | 12.5kg |
Packing Info.
Packing Information | |||
Item Size: | 300*300*175mm | N.W (Kg): | 12.5 Kg |
Carton Size: | 370*370*230mm |
|
|
Qty per Carton: | 1 Unit / Carton | ||
Illumination Chart:
Illumination Chart | |||
Beam Angle | Height | Central Lux (lx) | Average Cover (M) |
30º*60º | 2.5 M | 449 | 9.1*9.1 |
5 M | 112 | 18.1*18.1 | |
7.5 M | 49 | 27.2*27.2 | |
10 M | 28 | 36.3*36.3 | |
12.5 M | 18 | 45.3*45.3 | |
15 M | 12 | 54.4*54.4 | |
| |||
Main Technologies:
Main Technology | |
LED Chips: | BridgeLux LED chips packaged professionally ensure the light source kept in optimum performance; mirror surface processed technology collect and reflect the invalid light into efficiency; use of lens controls the horizontal and vertical beam angle actively. |
Power Supply: | To use world’s leading brand MeanWell power supply ensure the fixture works in stableness with better performance and enjoy its long life; power supply is CE RoHS TUV CB certificated. |
Heat Dissipation: | LEDs combined with aluminum radiator directly and closely make the LEDs have better performance of heat dissipation; sufficient area of aluminum radiator and full range air permeability of the fixture reduce the optical attenuation and control LEDs failure. |
Certificates Show:

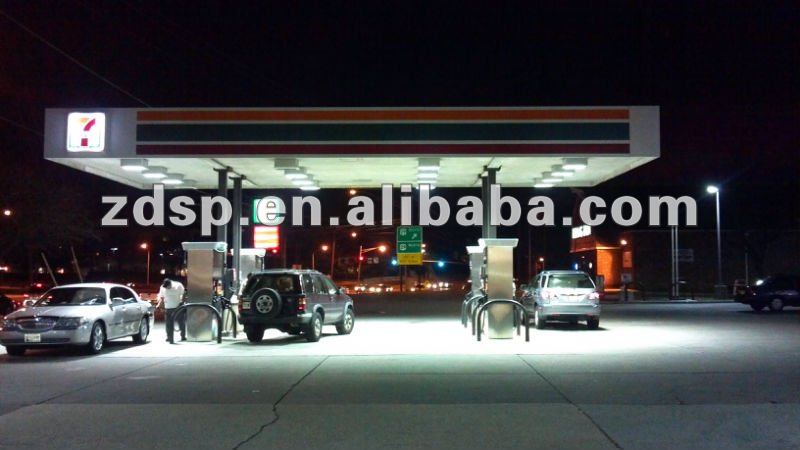

Projects Show:
Why us?
1). Original the superconducting heat ADC12 die-cast aluminum arc heat sink system, exponentially increase the natural cooling area, and has super air convection cooling function, effectively extending the lamp life and improve the use of performance.
2). Original designed die casting lamp shell completely closed, and the use of high-performance waterproof and fireproof silicone, protection grade IP68 waterproof anti-leakage effectively prevent the failure occurred, safe and reliable.
Experienced production team and quality control team make sure the better quality.
3). Unique heat sink wash tank design and anti-dust, anti-corrosion material, make lamp shell has a self-cleaning function, effectively prevent the accumulation of dust, grease, to protect lighting performance.
4). Original second optical design of the the integrated overall mirror condenser Cup and diamond-shaped reflector cone, utilized the light energy and greatly enhanced lighting effects.
5). Gas station lights, tunnel lights, stadium lights series by the Chinese explosion-proof certification, and has passed CE, ROHS certification.
