- Place of Origin:CN;GUA
- Application:Highway
- Brand Name:CESP
- Lampshade Material:Toughened Glass
- Power Supply:Solar
- Lighting Bulbs & Tube:Energy Saving
- Model Number:CESP-L Series
CESP lm80 test report led street light solar street light ip68 ul dlc saa
Specifications
CE & Rosh led for street light
1. patented constant current power drive
2. 50,000-100,000 hours,20,000 hours luminious maintainance over 97%
3. unique waterproof structure
4. super heat dissipation
FEATURES:
1.High Efficacy low decay SMD LED chip,up to 150lm/w@350ma, rated life span 100,000 hrs.
2.High heat transmitting die cast housing with ADC12 aluminum, patented design, IP68 protection grade.
3.Shock and vibration resistant tempered glass, super clear 95% light transmitting rate.
4.Anti-glares scientific optical reflector design, making the light more even, comfortable for eyes and efficient light distribution on the ground.
5.MEANWELL HLG series driver, the best of MEANWELL outdoor LED driver.
6.Surface treatment-Powder coating with Epoxy Polyester, salt resistant and chemical resistant, patented arc shape heat sink design, to prevent the dust from accumulating on the surface.
7.2.0mm thick aluminum PCB with heat index 2.5, excellent heat transmitting performance, keep LED chips working under normal temperature.
8. EMC test standard, Total harmonic distortion(THD)<10%, minimize the impact towards electric system.
Certification: UL, CUL, DLC, PSE, SAA C-TICK, CQC, CE, ROHS, IP68
APPLICATIONS:

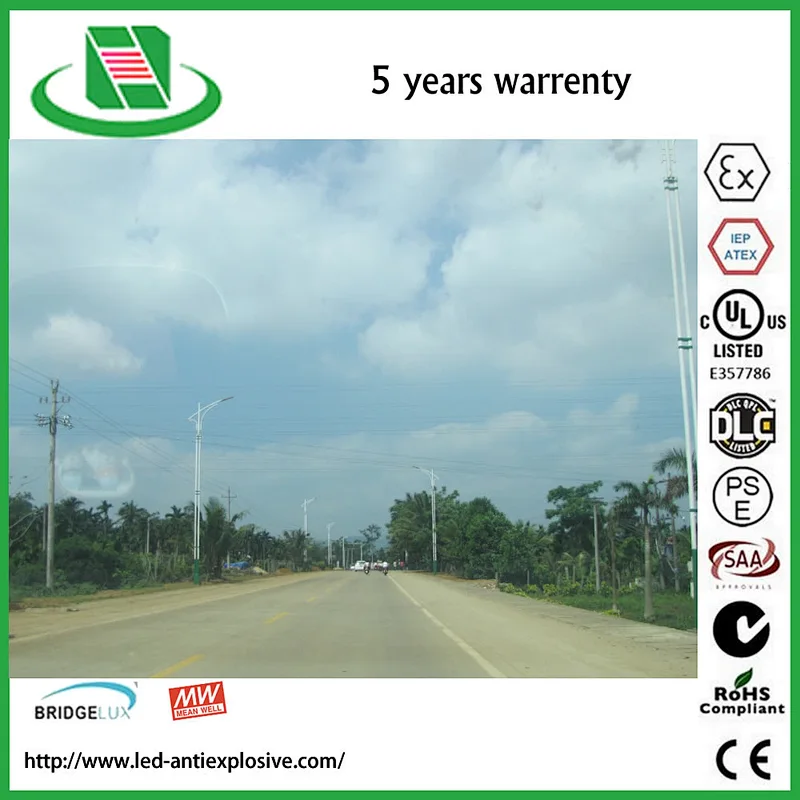

1. Suitable for main road, high way, walkway, park lighting etc.
2. Can work with solar system.
DETAIL:
Item No | Product Specification |
Certificates | ||||
Rated Power | Size(mm) | With reflector(RF) or not | Beam | IP | ||
Angle | Rating | |||||
CES-L200 | 185W | 795*372*82.8mm | NO | 140°x80° | IP68 | CE/ROHS/UL/CUL/DLC/SAA/CT-TICK/PSE |
CES-L150 | 150W | Optional | 140°x80° | IP68 | CE/ROHS/UL/CUL/SAA/CT-TICK/PSE | |
CES-L120 | 120W | Optional | 140°x80° | IP68 | CE/ROHS/UL/CUL/SAA/CT-TICK/PSE | |
CES-L100 | 100W | 680*260*82.8mm | NO | 140°x80° | IP68 | CE/ROHS/UL/CUL/SAA/CT-TICK/PSE |
CES-L80 | 80W | Optional | 140°x80° | IP68 | CE/ROHS/UL/CUL/DLC/SAA/CT-TICK/PSE | |
CES-L60 | 60W | Optional | 140°x80° | IP68 | CE/ROHS/UL/CUL/SAA/CT-TICK/PSE | |
CES-L40 | 40W | 400*250*65 mm | Optional | 140°x80° | IP68 | CE/ROHS/UL/CUL/DLC/SAA/CT-TICK/PSE |
COLOR TEMPERATURE
LED Specification | Driver Specification | ||||||||||
Item No. | Led | Nominal Lumens | Lumen | CCT | CRI | Input V | Input Current | PF | THD | Type | |
Qty. | Lm rW | ||||||||||
CES-L200 | 144 pcs | 16550 | 90Lm W | Cool White:5700-6500K | >70 | AC100-277V | 350mA | >0.98 | <10% | HLG MEANWELL driver with IP68 protective Aluminum Housing | |
CES-L150 | 120 pcs | 13500 | 90Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | |||
CES-L120 | 120 pcs | 10800 | 90Lm/W | Natural White:3700-4500K | >70 | AC100-277V | 350mA | >0.98 | <10% | ||
CES-L100 | 60 pcs | 9000 | 90Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | |||
CES-L80 | 60pcs | 7200 | 90Lm/W | Warm White:2700-3500K | >70 | AC100-277V | 350mA | >0.98 | <10% | ||
CES-L60 | 60pcs | 5400 | 90Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | |||
CES-L40 | 36pcs | 3600 | 90Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | |||
PHOTOMETRIC CURVE
DIMMENSION
INSTALLATION
A. The cantilever length is usually not more than a quarter of the mounting height , and the elevation should not exceed 15 °
B. Installation Steps:
Place the lamp cord into the pole
Insert the lamp into the pole
Adjust the lamp direction and fix screw into lock position
Fix the screw into lock position,the torque applied to the screw is 1.08 kg.m
The size of cavity inserted into the junction box should not be more than 80mm*40mm*40mm
Seal the gap between the power driver lid and the plate tightly with silicone glue.
