- Light Source:LED
- Item Type:Street Lights
- Place of Origin:CN;GUA
- Warranty(Year):5
- Color Temperature(CCT):Cool White
- Model Number:DLC CUL led streetlight 100w 150w led street light
- Brand Name:CESP
- Lamp Body Material:Aluminum Alloy
- Input Voltage(V):AC100-277V
- Working Temperature(℃):-40 - 50
- CRI (Ra>):70
- LED Light Source:Bridgelux/Cree/Genesis
- IP Rating:IP68
- Working Lifetime(Hour):100000
- Lamp Luminous Flux(lm):15000
- Lamp Power(W):150
- Certification:C-tick
- Certification:CCC
- Certification:CE
- Certification:CQC
- Certification:EMC
- Certification:FCC
- Certification:LVD
- Certification:PSE
- Certification:REACH
- Certification:RoHS
- Certification:SAA
- Certification:UL
- Lamp Luminous Efficiency(lm/w):100
DLC CUL UL led streetlight 40w 80w 100w 150w 185w led street light
Strenth:
- Protecting Grade: The highest IP68
- CE, RoHS, UL, cUL passed
- 5 years warranty led chip
Introduction:
1, Unique integrate Die-Cast Aluminum with self- clean feature, enable efficient heat transmit function, effectively increase the life- span of light fixture.
2, Unique Integrated Light distribution system, enable maximization of Light output.
3, With world class quality LED chip and electronic component, enabling reliable quality.
4, High energy saving, energy saving result immediately.
Key Feature:
1.High Efficacy low decay SMD LED chip,up to 150lm/w @350ma, rated life span 100,000 hrs.
2.High heat transmitting die cast housing with ADC12 aluminum, patented design, IP68 protection grade
3.Shock and vibration resistant tempered glass, super clear 95% light transmitting rate
4.Anti-glare.Scientific optical reflector design, making the light more focus, even, comfortable for eyes
5.MEANWELL HLG series driver, the highest lever of MEANWELL driver
6.Surface treatment-Powder coating with Epoxy Polyester, salt resistant and chemical resistant, patented arc shape heat sink design, to prevent the dust from accumulating on the surface
7.2.0mm thick aluminum PCB with heat index 2.5, keep LED working under normal temperature
8. EMC test standard, Total harmonic distortion(THD)<10%, minimize the impact towards electric system
Certification: UL, CUL, DLC, PSE, SAA&C-TICK, CQC, CE, ROHS, IP68
Specifications:
Item No | Product Specification |
Certificates | ||||
Rated Power | Size(mm) | With reflector(RF) or not | Beam | IP | ||
Angle | Rating | |||||
CES-L200 | 185W | 795*372*82.8mm | NO | 140°x80° | IP68 | CE/ROHS/UL/CUL/DLC/SAA/CT-TICK/PSE |
CES-L150 | 150W | Optional | 140°x80° | IP68 | CE/ROHS/UL/CUL/SAA/CT-TICK/PSE | |
CES-L120 | 120W | Optional | 140°x80° | IP68 | CE/ROHS/UL/CUL/SAA/CT-TICK/PSE | |
CES-L100 | 100W | 680*260*82.8mm | NO | 140°x80° | IP68 | CE/ROHS/UL/CUL/SAA/CT-TICK/PSE |
CES-L80 | 80W | Optional | 140°x80° | IP68 | CE/ROHS/UL/CUL/DLC/SAA/CT-TICK/PSE | |
CES-L60 | 60W | Optional | 140°x80° | IP68 | CE/ROHS/UL/CUL/SAA/CT-TICK/PSE | |
CES-L40 | 40W | 400*250*65mm | Optional | 140°x80° | IP68 | CE/ROHS/UL/CUL/DLC/SAA/CT-TICK/PSE |
LED Specification | Driver Specification | |||||||||
Item No. | Led | Nominal Lumens | Lumen | CCT | CRI | Input V | Input Current | PF | THD | Type |
Qty. | Lm/W | |||||||||
CES-L200 | 144 pcs | 16550 | 90Lm/W | Cool White:5700-6500K | >70 | AC100-277V | 350mA | >0.98 | <10% | HLG MEANWELL driver with IP68 protective Aluminum Housing |
CES-L150 | 120 pcs | 13500 | 90Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||
CES-L120 | 120 pcs | 10800 | 90Lm/W | Natural White:3700-4500K | >70 | AC100-277V | 350mA | >0.98 | <10% | |
CES-L100 | 60 pcs | 9000 | 90Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||
CES-L80 | 60pcs | 7200 | 90Lm/W | Warm White:2700-3500K | >70 | AC100-277V | 350mA | >0.98 | <10% | |
CES-L60 | 60pcs | 5400 | 90Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||
CES-L40 | 36pcs | 3600 | 90Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||

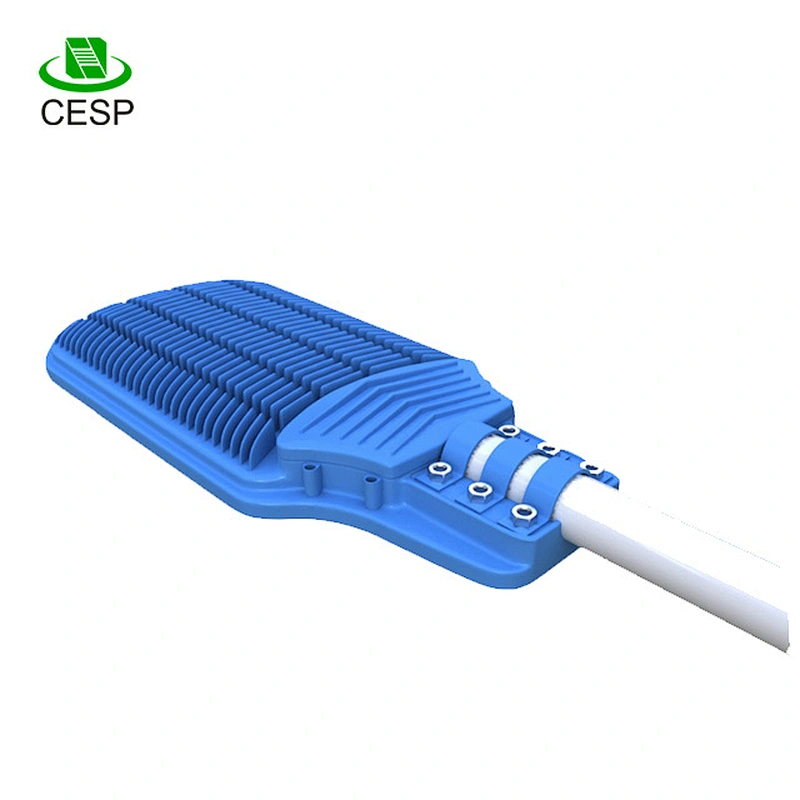

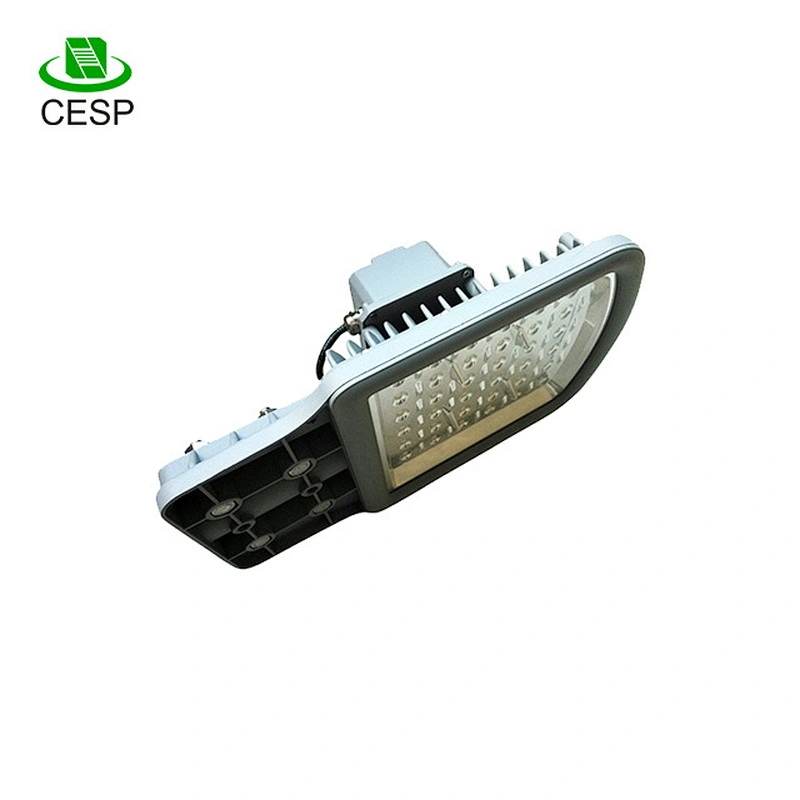

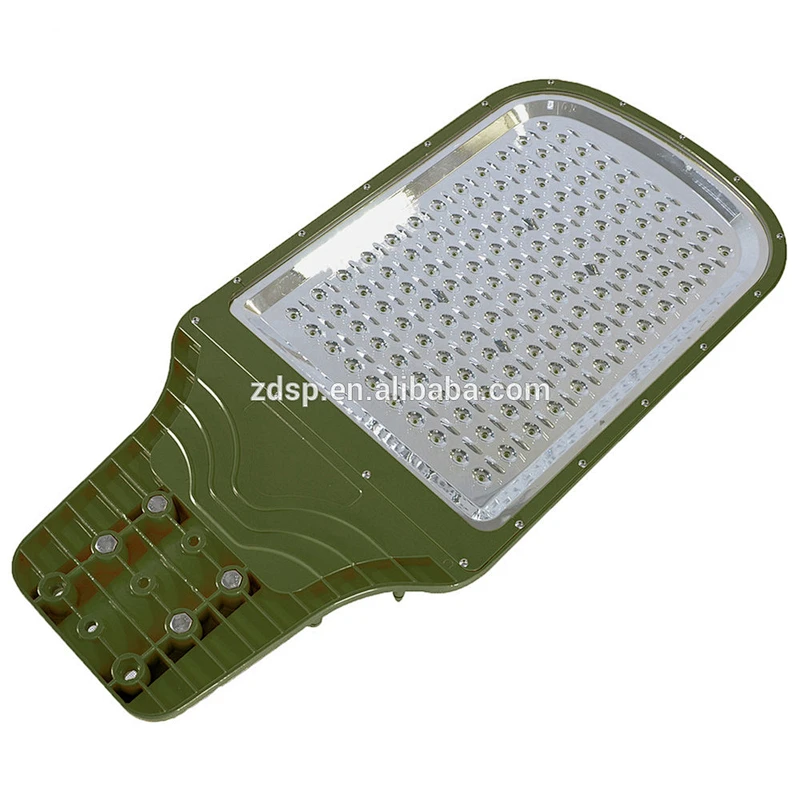

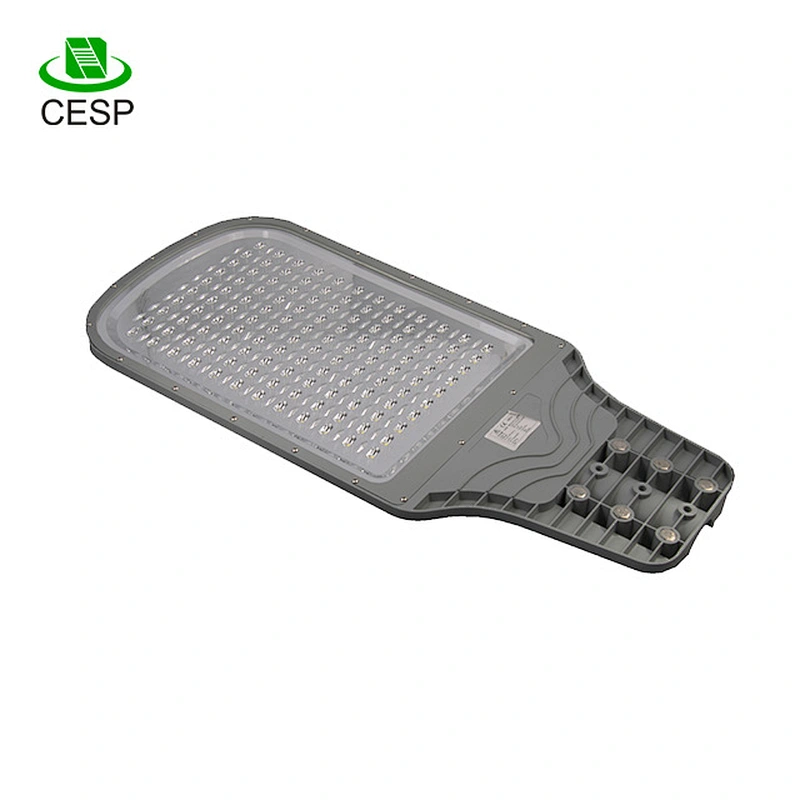

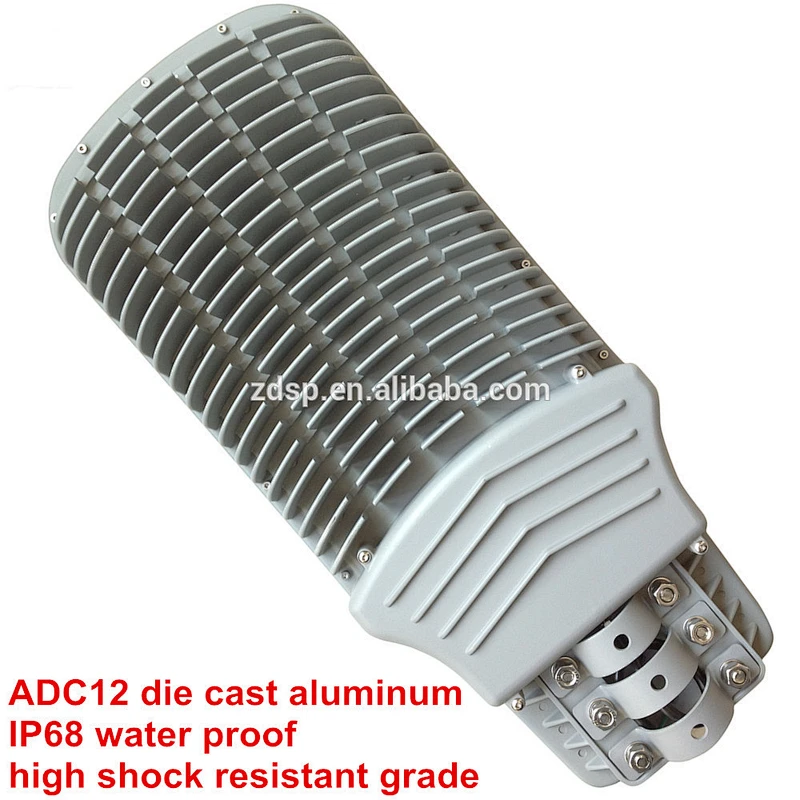

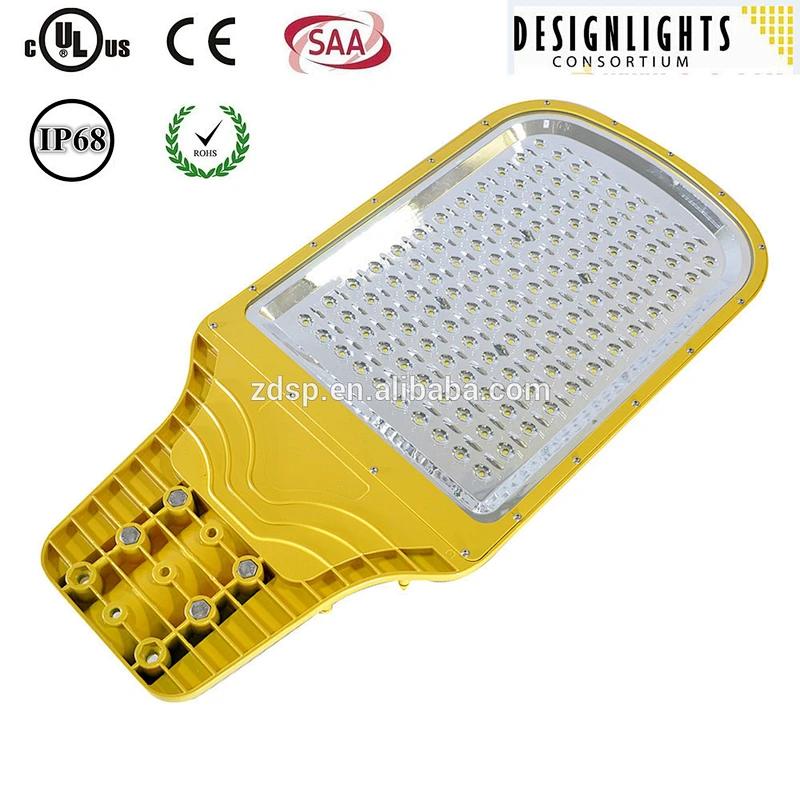

Product image:
Packing:
Installation:
Certification:
Factory show:
DLC CUL UL led streetlight 40w 80w 100w 150w 185w led street light
