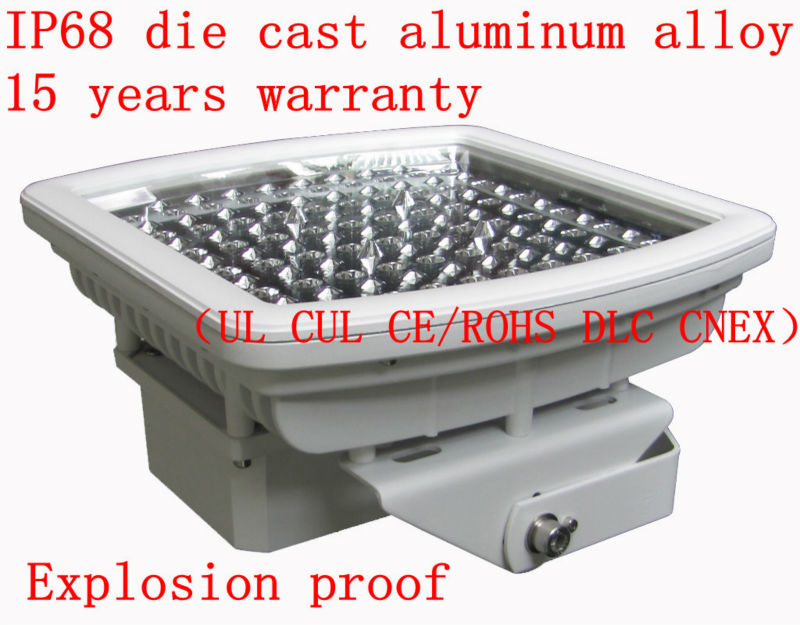

PSE UL150W 120W petrol station led explosion light

Quantity:

Top quality UL CUL PSE CE ROHS DLC passed led explosion proof CANOPY light ,explosion proof led CANOPY light 40W-185W

Product Description

Key features;

- Die-cast aluminum by 1800 Ton of pressure to make the body strong enough.

- Powder Coated (similar to vehicle’s coating) and holder are cover with a thin layer of Zink, color can be customizable.

- IP 68, highest rating of protection.

- Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.

- 5 year warranty.

- Best driver: Meanwell driver.

Specificationa:

Total Power Consume	120w
Whole Fixture Lumen	10800 lm
LED Chip/Brand	Bridgelun or Cree
LED Efficacy	120lm-130lm@350Ma
Illuminant	Equal to HPS 400-500w
Input voltage	AC100~277V
Frequency	50/60Hz
Power Factor	> 0.976
Driver Efficiency	>90%
Color Rendering Index	CRI ≈70
Color Temperature	Warm White: 2700K-4000K Cool White: 5500-6500K
Driver	Meanwell HLG Series
Protection Grade	IP68
Body Material	Die Cast Aluminum
Dimension	300300175mm
Packing Size	370370230mm
Feature	Anti Explosive: Class E – Gas filled environment- ExemⅡT6 Gc e class
Operating Environment:	-40°C~+50°C,
LED Chip	USA Bridgelux chip or Cree chip
LED Life Span	>50,000-100,000 hours
Housing material	ADC12 high thermal conductivity material, anti-dust thermal conductivity coatings
Protection screen material	4mm(thickness) toughened glass
Net weight	12.5kg

Packaging & Shipping

Packing Info.

Illumination Chart:

Main Technologies:

Main Technology
LED Chips:	BridgeLux LED chips packaged professionally ensure the light source kept in optimum performance; mirror surface processed technology collect and reflect the invalid light into efficiency; use of lens controls the horizontal and vertical beam angle actively.
Power Supply:	To use world’s leading brand MeanWell power supply ensure the fixture works in stableness with better performance and enjoy its long life; power supply is CE RoHS TUV CB certificated.
Heat Dissipation:	LEDs combined with aluminum radiator directly and closely make the LEDs have better performance of heat dissipation; sufficient area of aluminum radiator and full range air permeability of the fixture reduce the optical attenuation and control LEDs failure.
