- Light Source:LED
- Item Type:Ceiling Lights

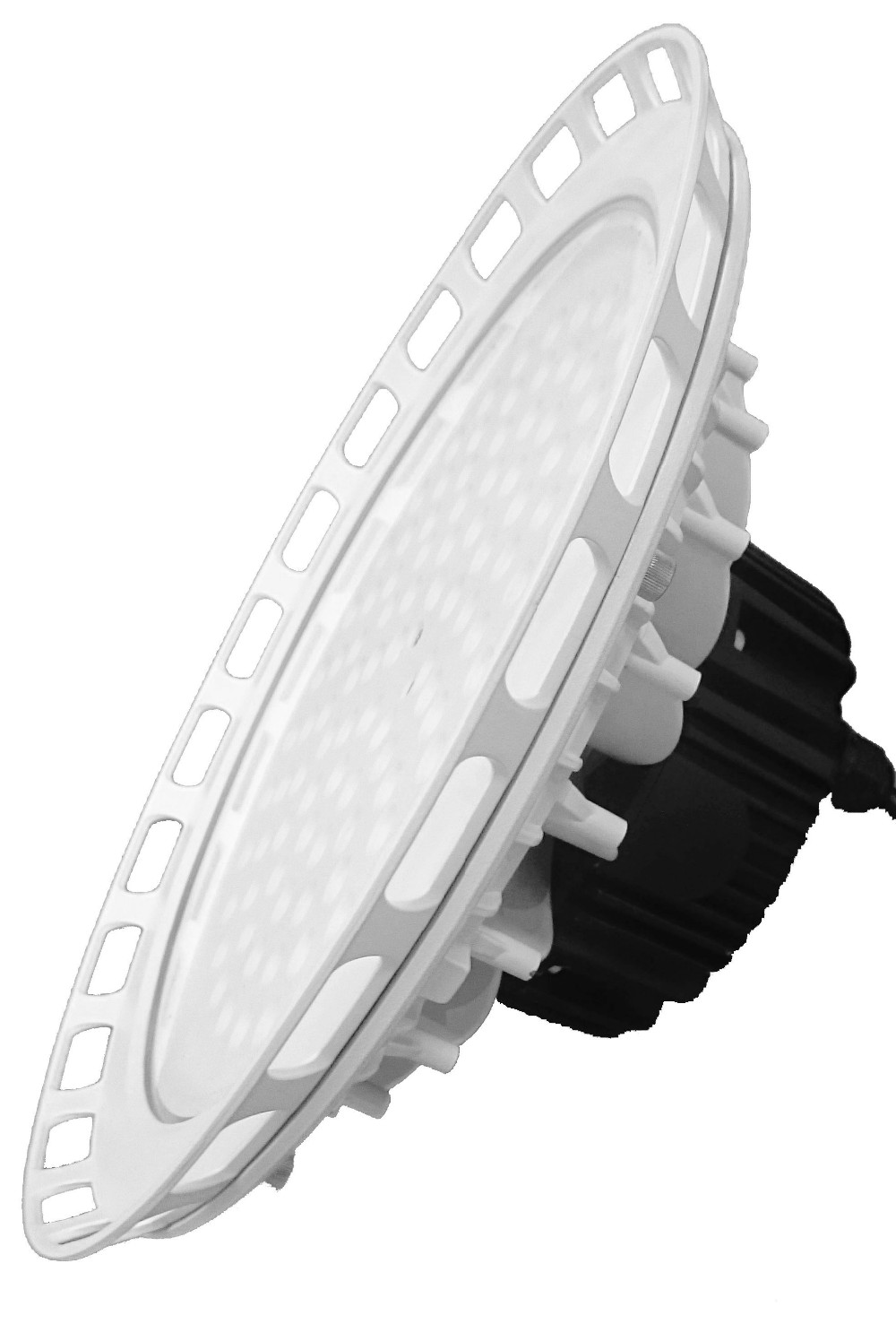

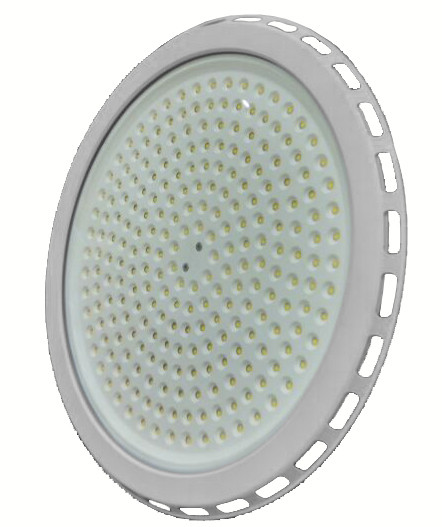

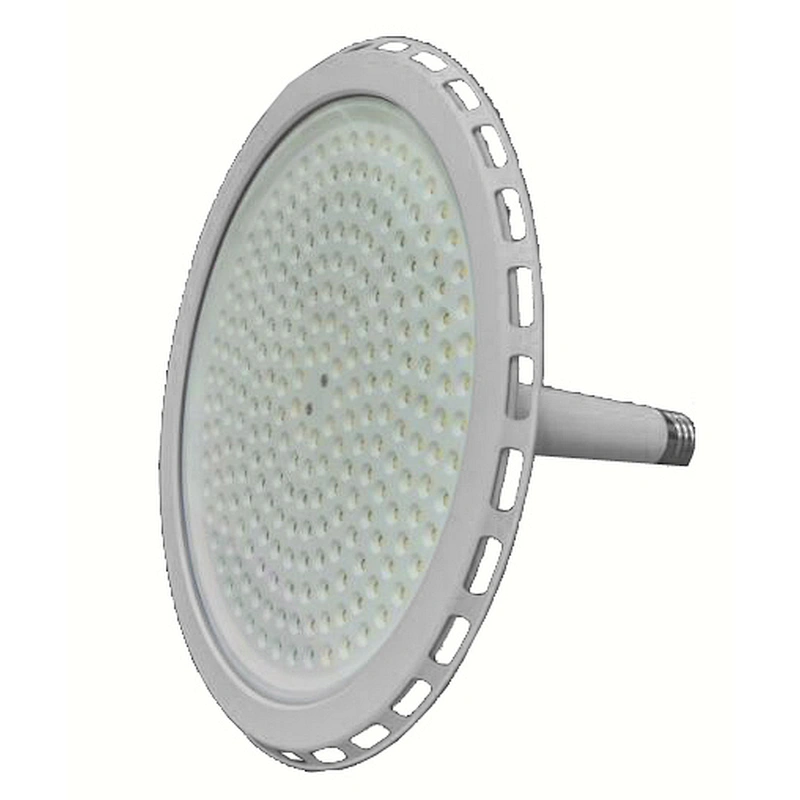

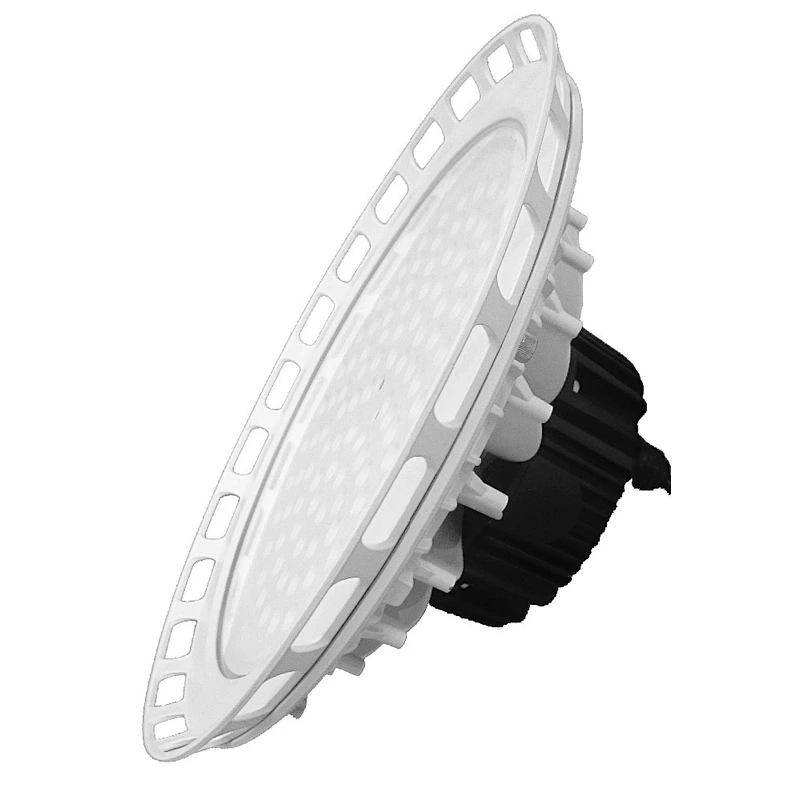

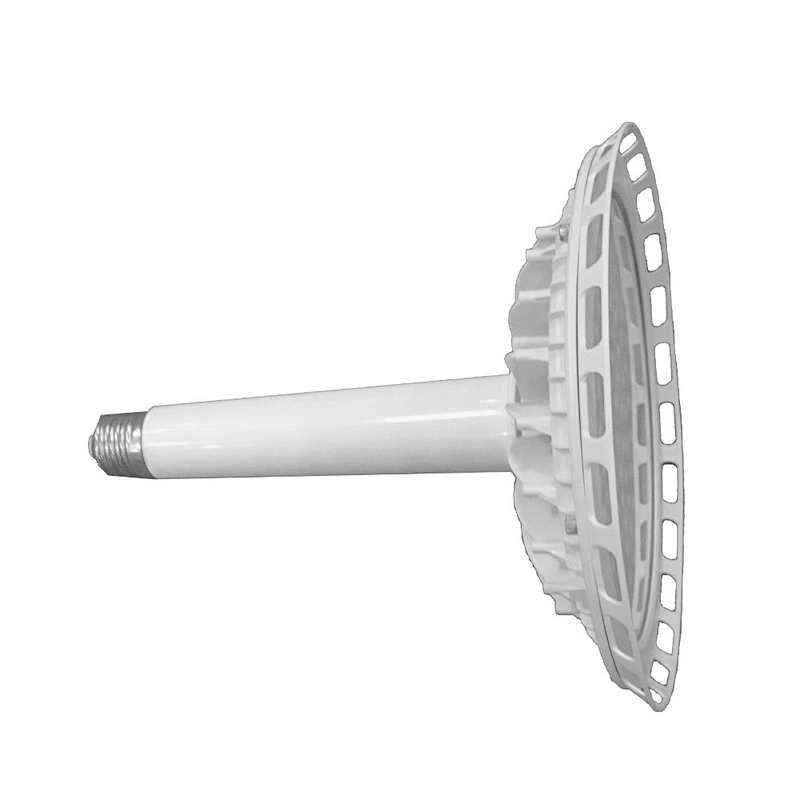

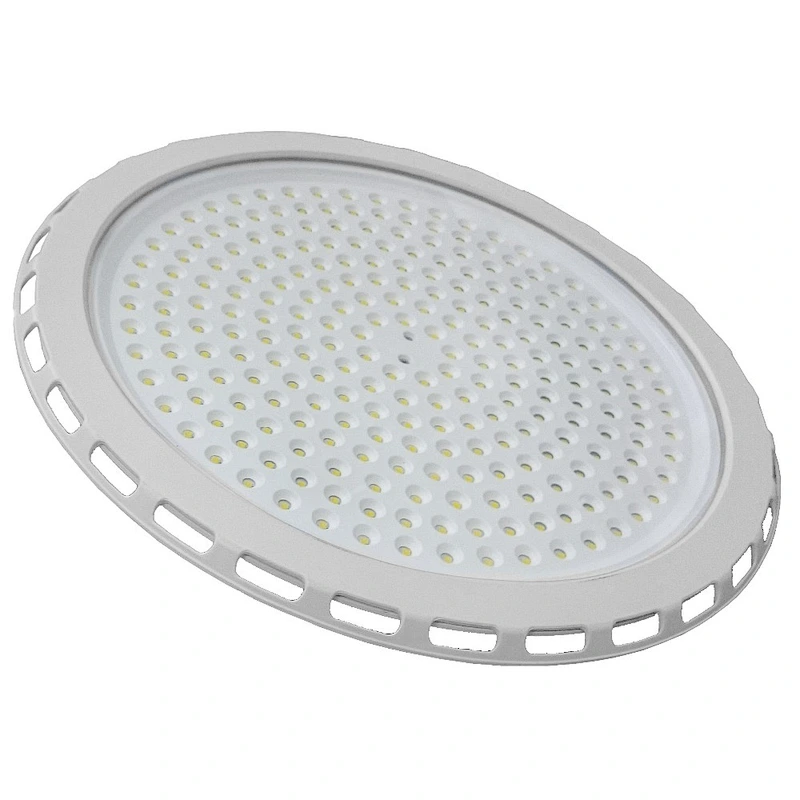

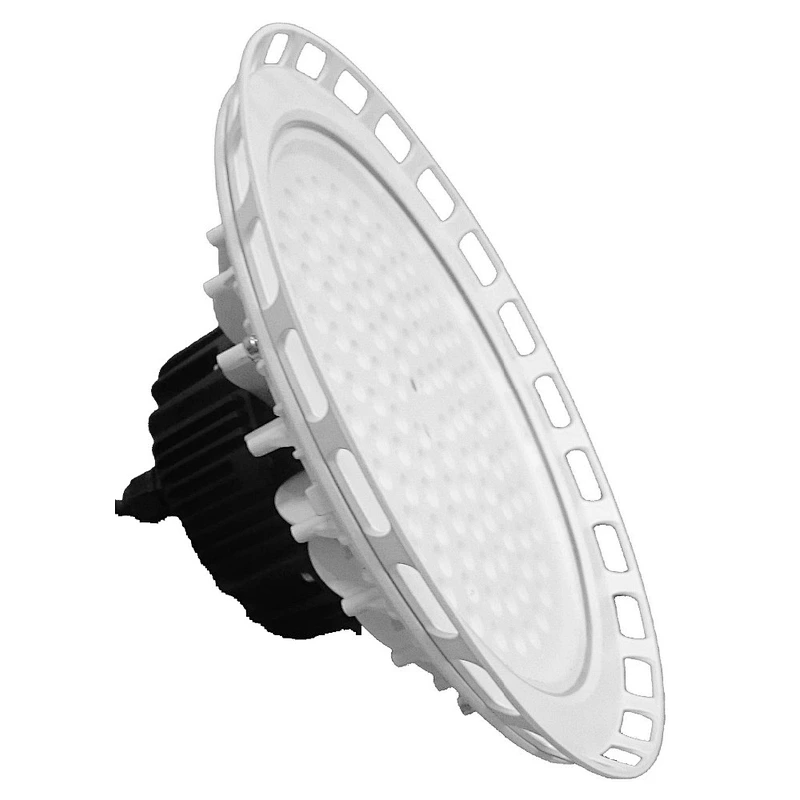

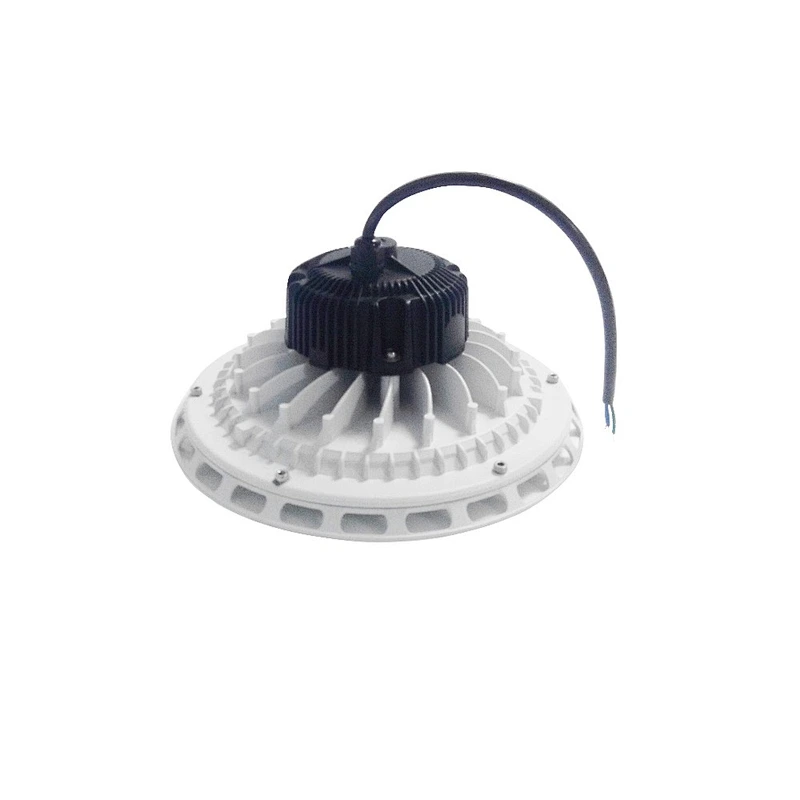

UFO LED High Bay Lights
FEATURES
1. High Efficacy low decay 3030 SMD LED chips, LM80 Certified.
2. High heat transmission die cast housing ADC12 aluminum, patented design, IP65 water proof.
3. Shock and vibration resistant tempered glass, super clear 95% light transmission rate.
4. Anti-glare scientific optical reflector design, making the light more focused, even, and comfortable for eyes.
5. Configurable dimming function option available (1-10V, PWM, Traic).
6. MEANWELL LED driver or Internally Designed/Manufactured LED driver options available, 5 year warranties.
7. Surface treatment-Powder painted, salt resistant and chemical resistant, dust resistant.
8. 2.0mm aluminum PCB with heat index 2.5, keeps LED working under cool temperature.
9. Working temperature: -30ºC to 30ºC.
Specification
Note | Item No | Description | Total Power | Reflector Angle | Nominal Lumens | Drive Current | #OF LEDs | System Efficacy |
Taiwan Meanwell HLG(external Driver) | T240 | Replacing 1000w HPS/MH | 240 | 120/60/40/30 | 28,000 | 350m/A | 240 | 120LM/W |
T200 | Replacing 1000w HPS/MH | 185 | 60/40/30 | 24,000 | 350m/A | 144 | 120LM/W | |
T150 | Replacing 700w HPS/MH | 150 | 120/60/40/30 | 18,000 | 350m/A | 108 | 120LM/W | |
T100 | Replacing 700w HPS/MH | 100 | 120/60/40/30 | 12,000 | 350m/A | 108 | 120LM/W | |
Taiwan Meanwell HLG(internel Driver) | T240 | Replacing 1000w HPS/MH | 220 | 120/60/40/30 | 26,400 | 350m/A | 156 | 120LM/W |
T200 | Replacing 1000w HPS/MH | 185 | 120/60/40/30 | 24,000 | 350m/A | 144 | 120LM/W | |
T150 | Replacing 700w HPS/MH | 150 | 120/60/40/30 | 18,000 | 350m/A | 108 | 120LM/W | |
T100 | Replacing 400w HPS/MH | 100 | 120/60/40/30 | 12,000 | 350m/A | 108 | 120LM/W |

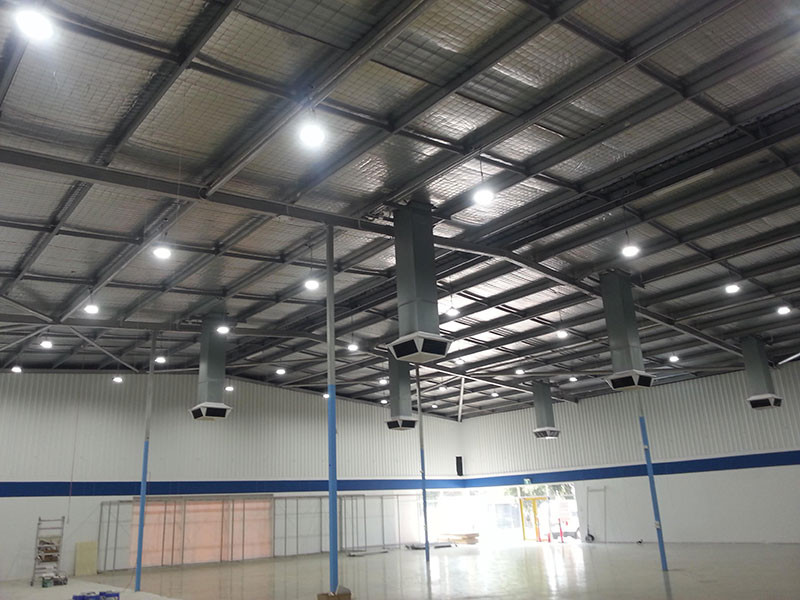

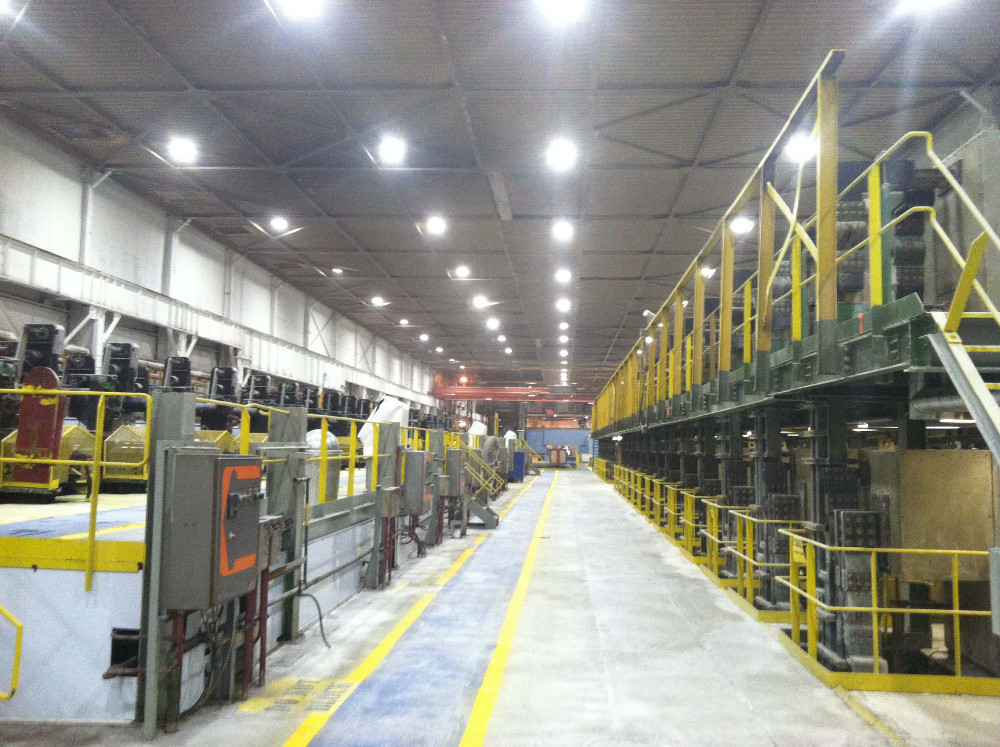

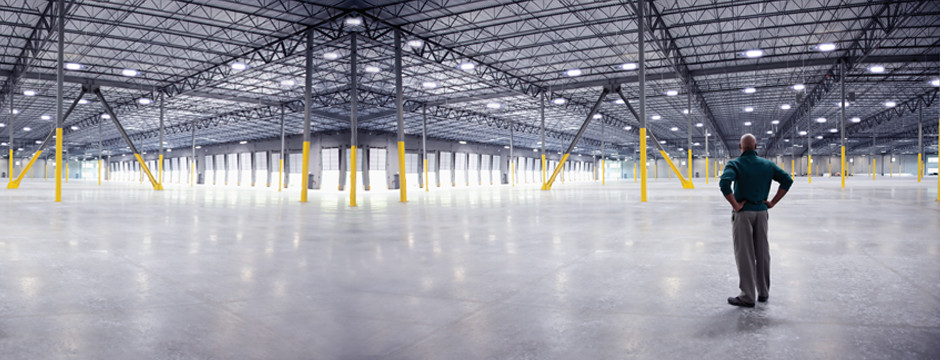

Applications

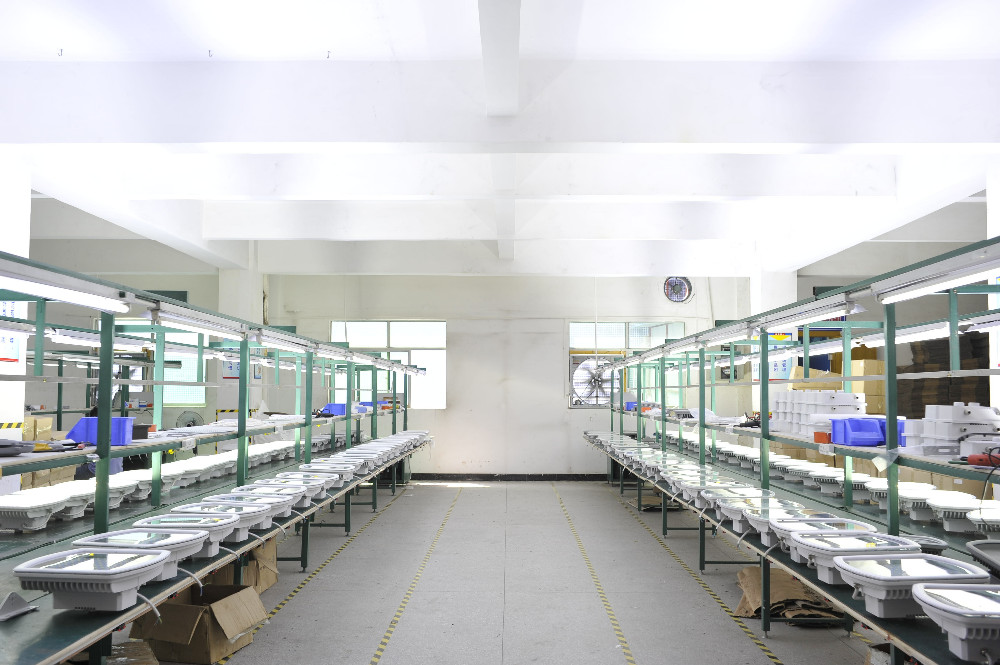

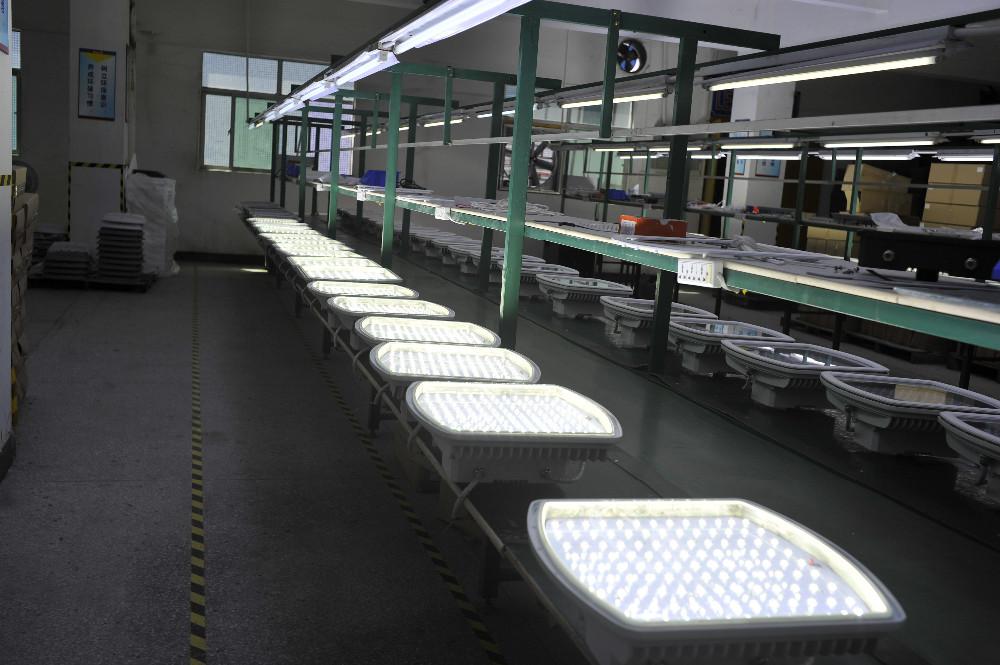

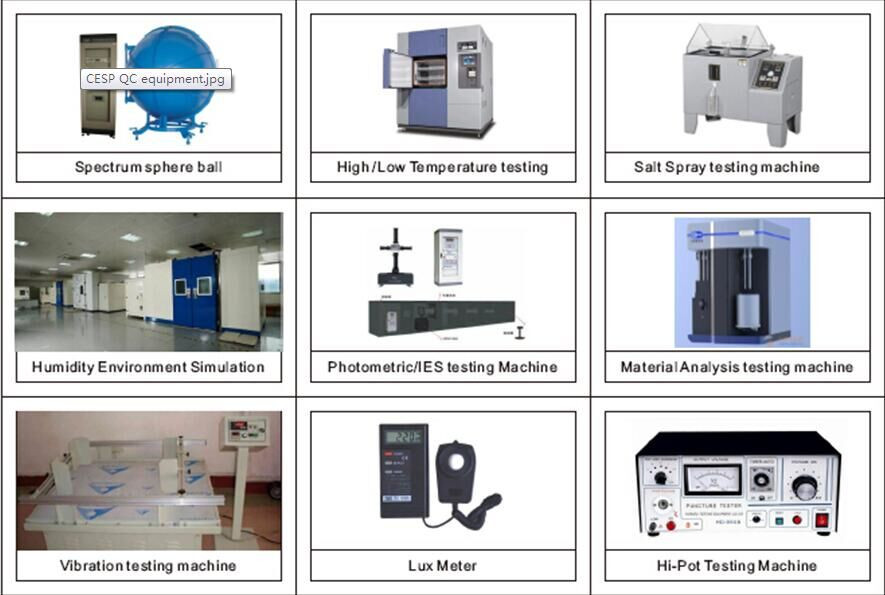

Quality Control

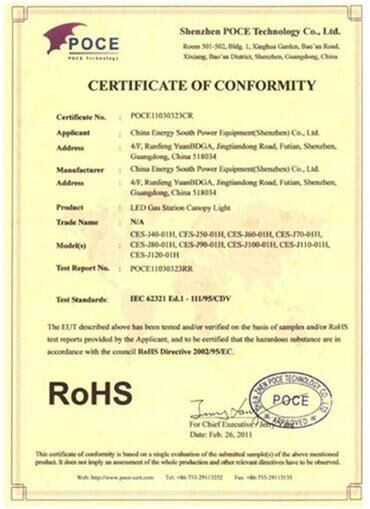

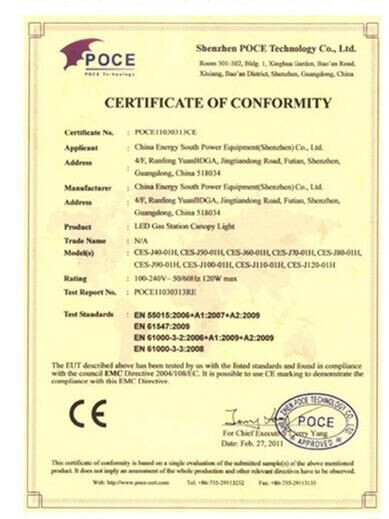

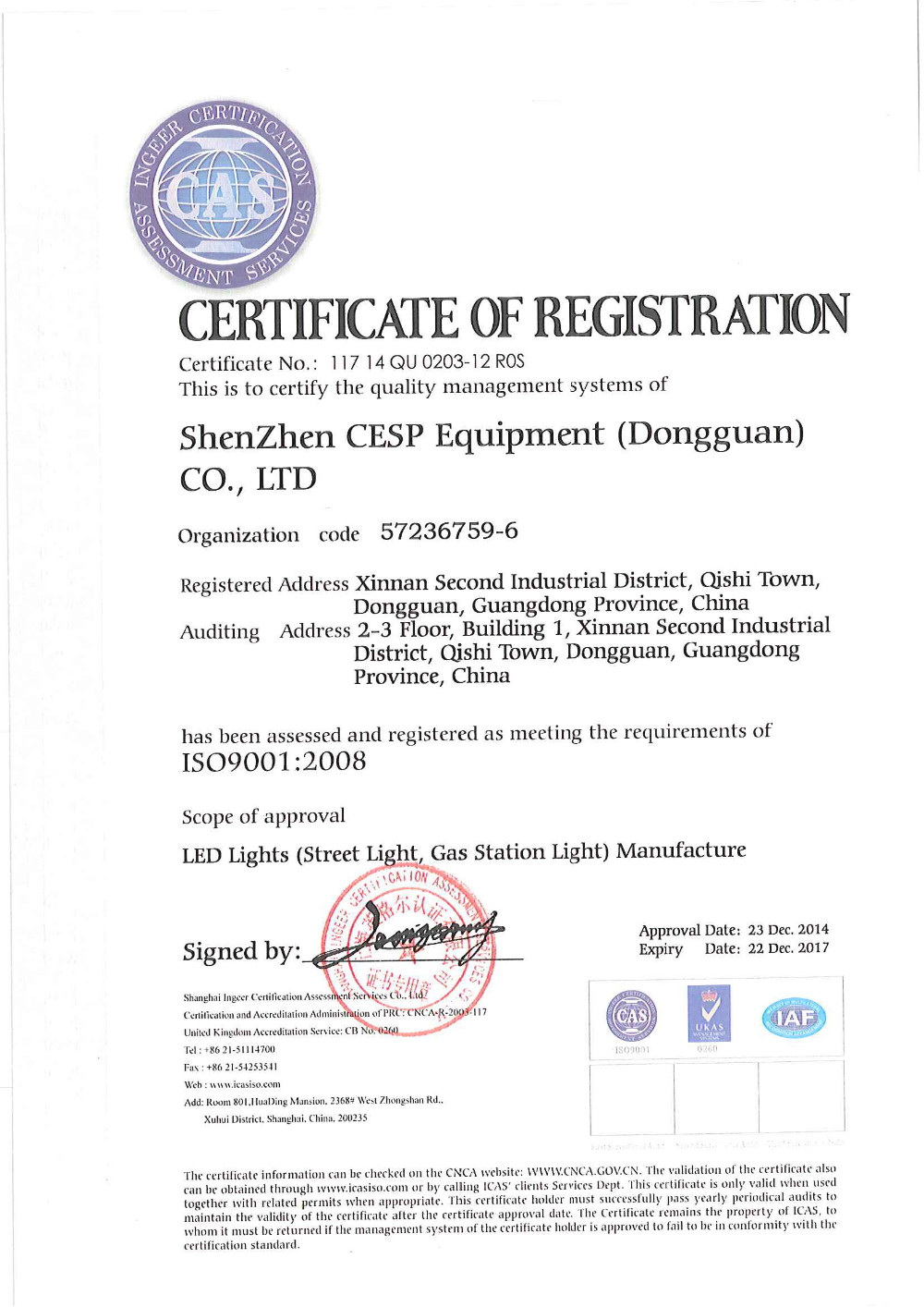

Certifications

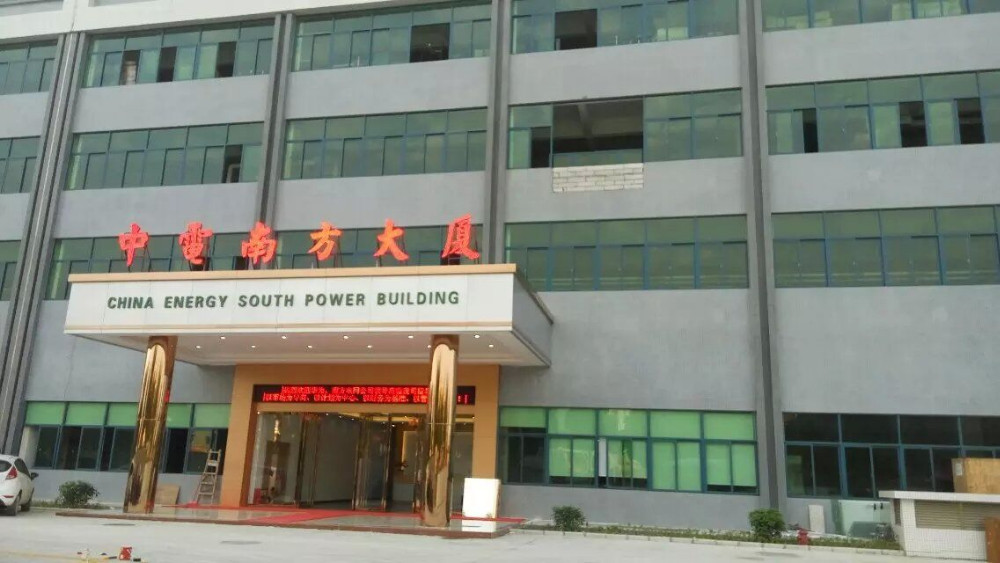

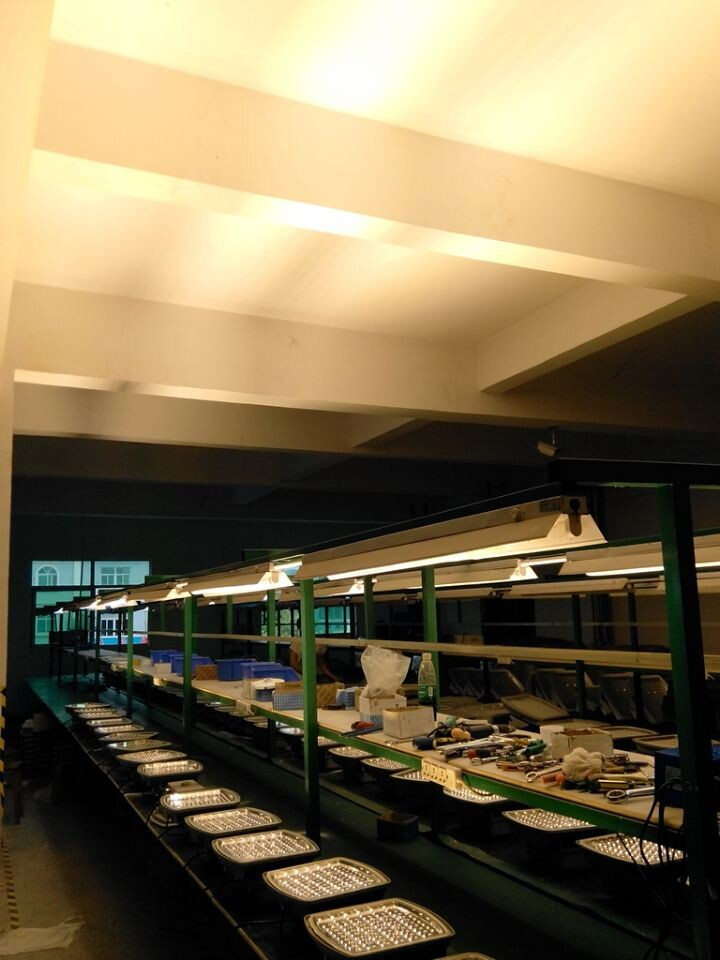

Company Information
Contact Infomation:
Shenzhen CESP Co.,Ltd.
Manufacturer of LED Explosion Proof Lamps, Led Highbay light, LED Street light.
Email: rainbow @ cespeled.com
Mobile : 008618925352593
Wechat :544586603
