- Light Source:LED
- Item Type:Explosion-proof Lights
- Place of Origin:CN
- Color Temperature(CCT):Warm White
- Input Voltage(V):AC100-277V
- Working Temperature(℃):-40 - 50
- IP Rating:IP68
- Working Lifetime(Hour):5000
- Base Type:FESTOON
- Emitting Color:Changeable
- Certification:CE
- Certification:CQC
- Certification:FCC
- Certification:FDA
- Certification:GS
- Certification:LVD
- Certification:PSE
- Certification:REACH
- Certification:RoHS
- Certification:SAA
- Certification:SASO
- Certification:UL
- Certification:VDE
- Lamp Luminous Efficiency(lm/w):11000

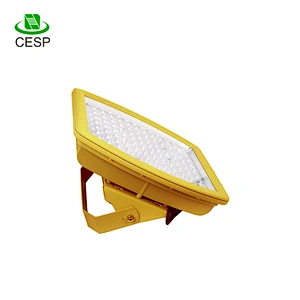

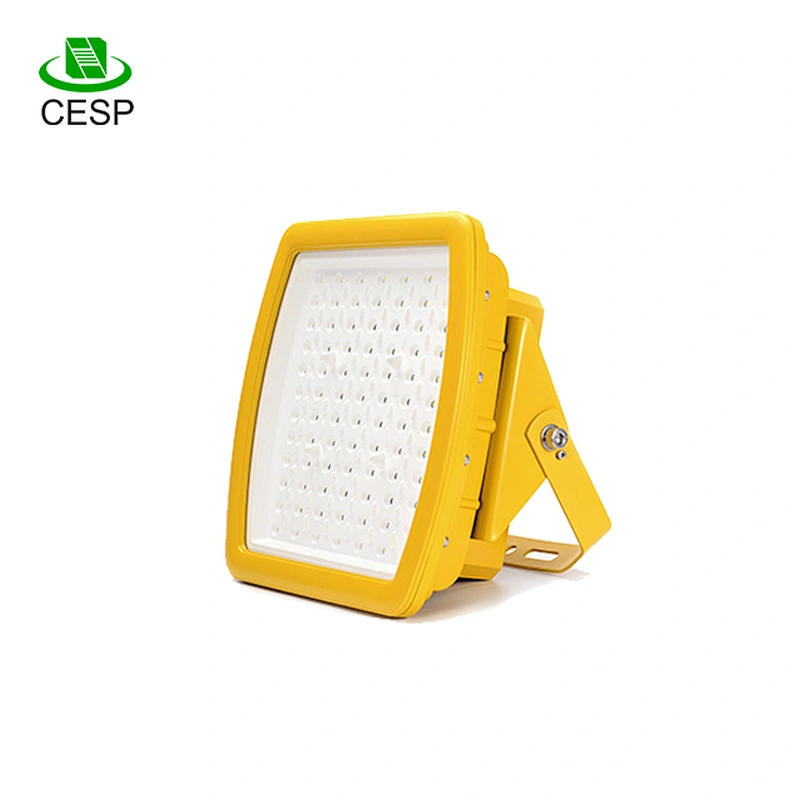

Aluminum Housing ATEX Certificated 120LM/W 20W 40W 60W 80W High Bright LED Explosion Proof Lighting
Key features:
-Die-cast aluminum by 1800 Ton of pressure to make the body strong enough.
- tested strictly: waterproof test, photometric test, high temperature simulated environment test, salt spray corrison test, vibration test, lighting protection, leak-proof test, dust-proof & oil-proof teste.
-IP 68, highest rating of protection.
-Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.
-5 year warranty.
-Best driver: Meanwell HLG driver.
Specification:
Item No | Product Specification | Certificate for Europe | Certificate for US&Canada | ||||
Rated Power | Size(mm) | With reflector(RF) or not | Beam | IP | |||
Angle | Rating | ||||||
CES-J200 | 185W | 400*400*185mm | NO | 120°x120° | IP68 | CE/ROHS | UL/CUL/DLC |
CES-J150 | 150W | 400*400*185mm | NO | 120°x120° | IP68 | CE/ROHS | UL/CUL |
CES-J120 | 120W | 400*400*185mm | Optional | 60°x30°(RF) | IP68 | ATEX/CE/ROHS | UL/CUL |
CES-J100 | 100 | 300*300*175mm | NO | 120°x120° | IP68 | ATEX/CE/ROHS | UL/CUL/DLC |
CES-J80 | 80W | 300*300*175mm | Optional | 60°x30°(RF) | IP68 | ATEX/CE/ROHS | UL/CUL |
CES-J40S | 40W | 200*200*270mm | Optional | 60°x30°(RF) | IP68 | ATEX/CE/ROHS | UL/CUL/DLC |
LED Specification | Driver Specification | |||||||||
Item No. | LED QTY | Lumens | Lumen | CCT | CRI | Input V | Input Current | PF | THD | Type |
Lm/W | ||||||||||
CES-J200 | 156 pcs | 16550 | 90Lm/W | Cool White: 5700-6500K | >70 | AC100-277V | 350mA | >0.98 | <10% | HLG MEANWELL driver with IP68 protective Aluminum Housing |
CES-J150 | 144 pcs | 13500 | 90Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||
CES-J120 | 96 pcs | 10800 | 90Lm/W | Natural White: 3700-4500K | >70 | AC100-277V | 350mA | >0.98 | <10% | |
CES-J100 | 84 pcs | 9000 | 90Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||
CES-J80 | 60pcs | 7200 | 90Lm/W | Warm White: 2700-3500K | >70 | AC100-277V | 350mA | >0.98 | <10% | |
CES-J40S | 24pcs | 3600 | 90Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||

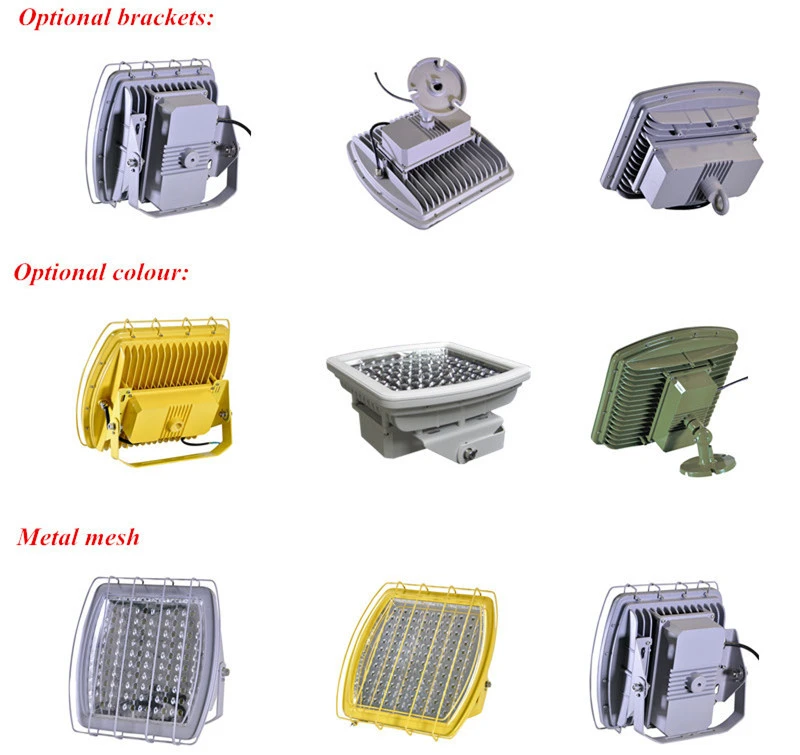

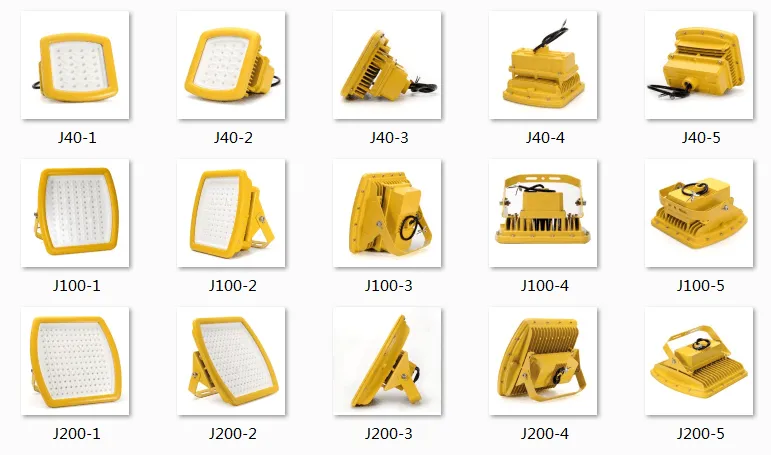

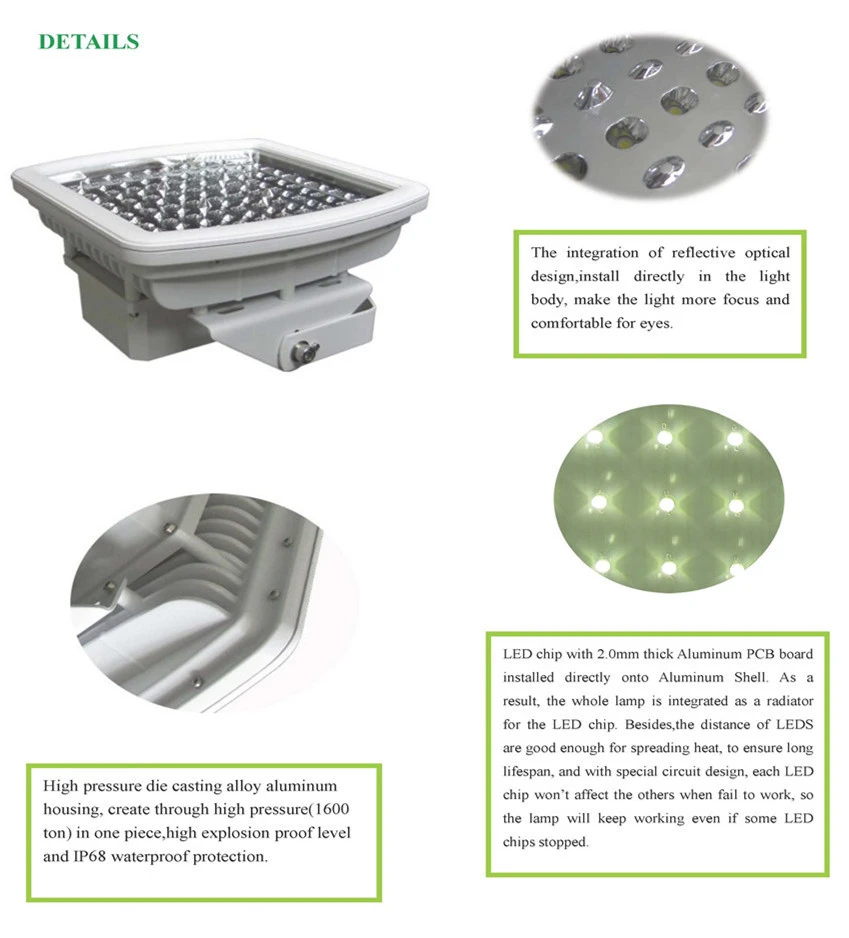

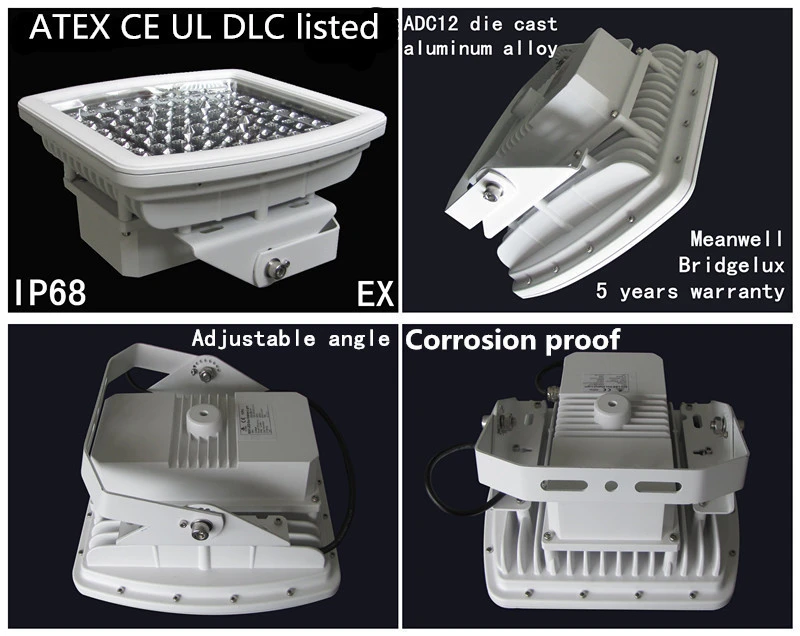

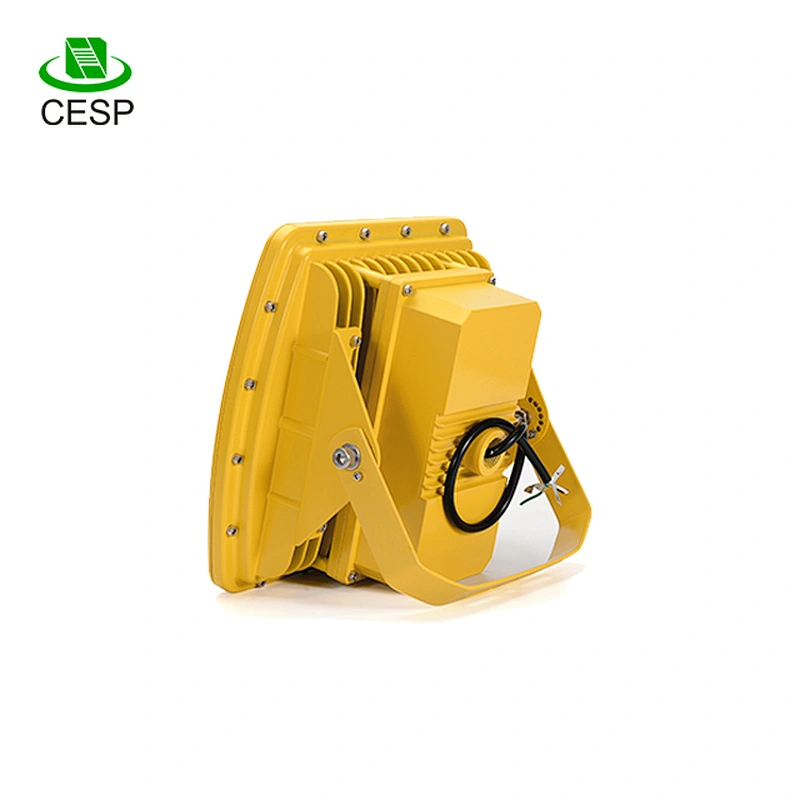

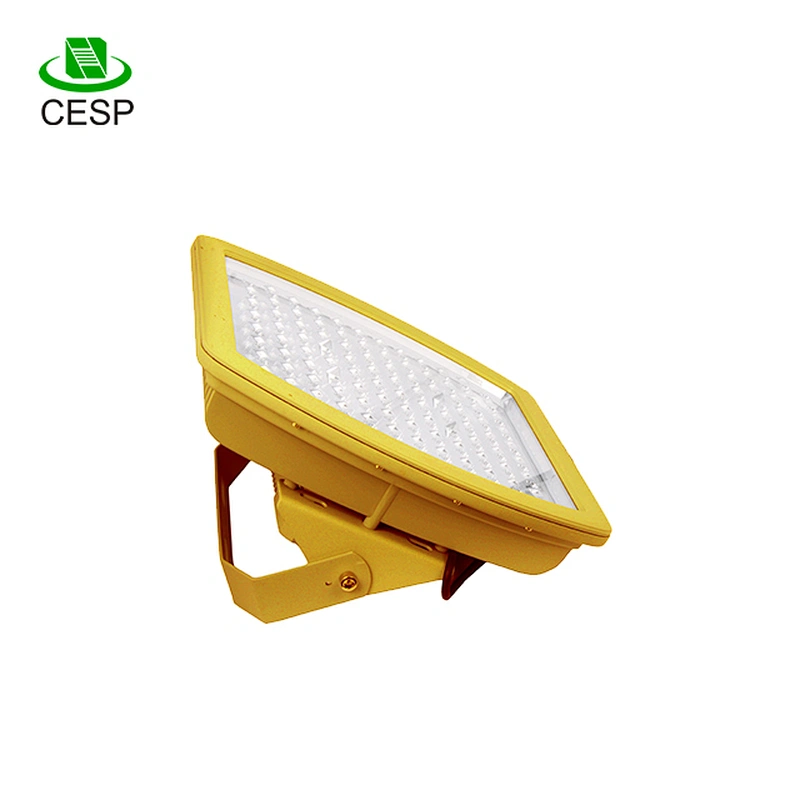

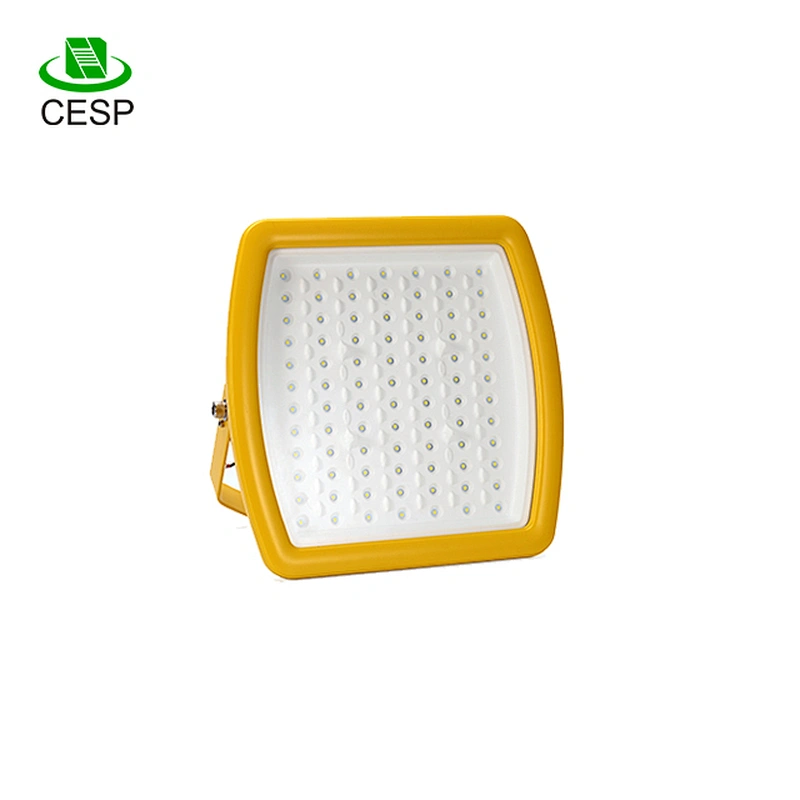

Product image:

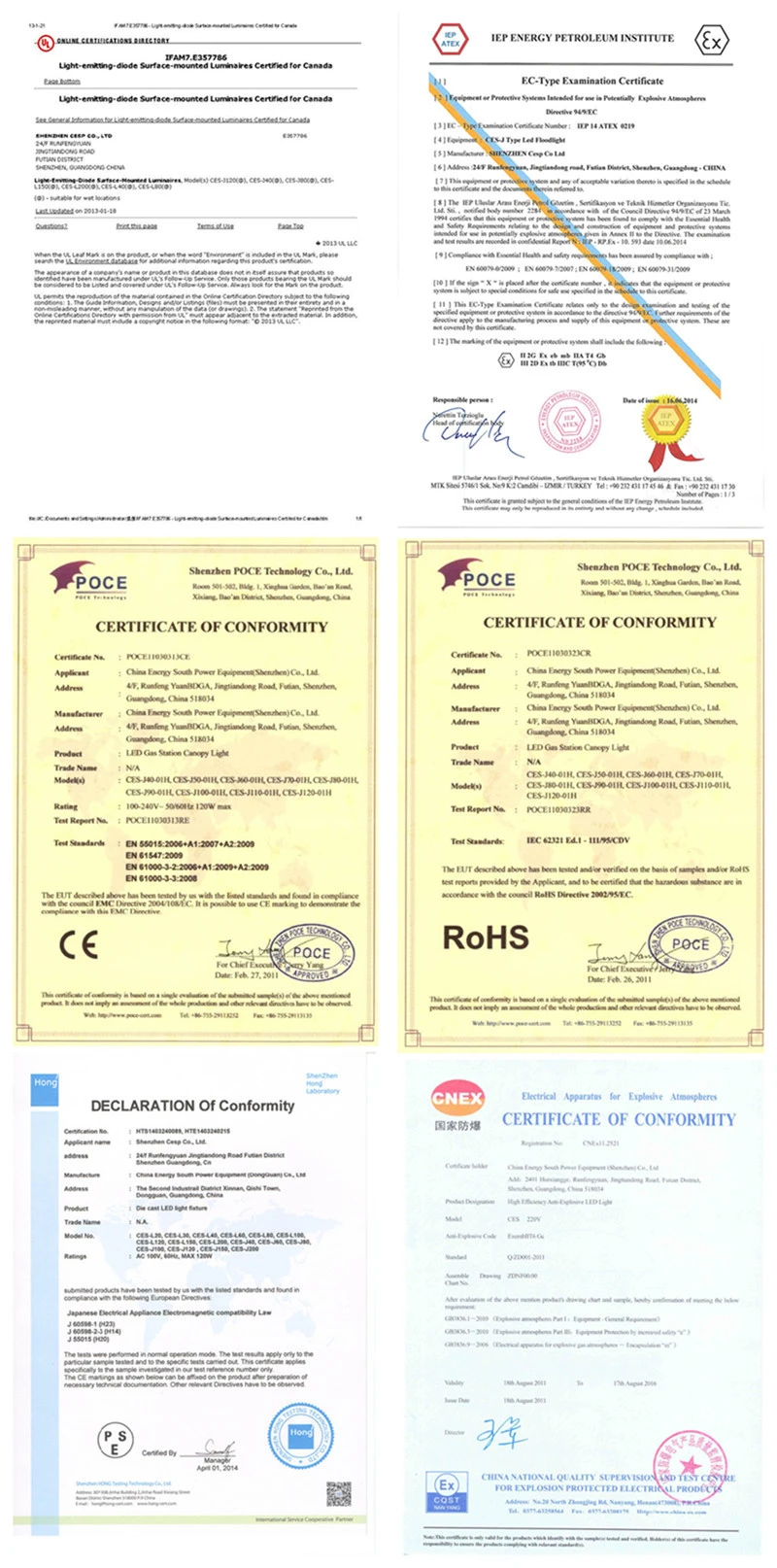

Certification:

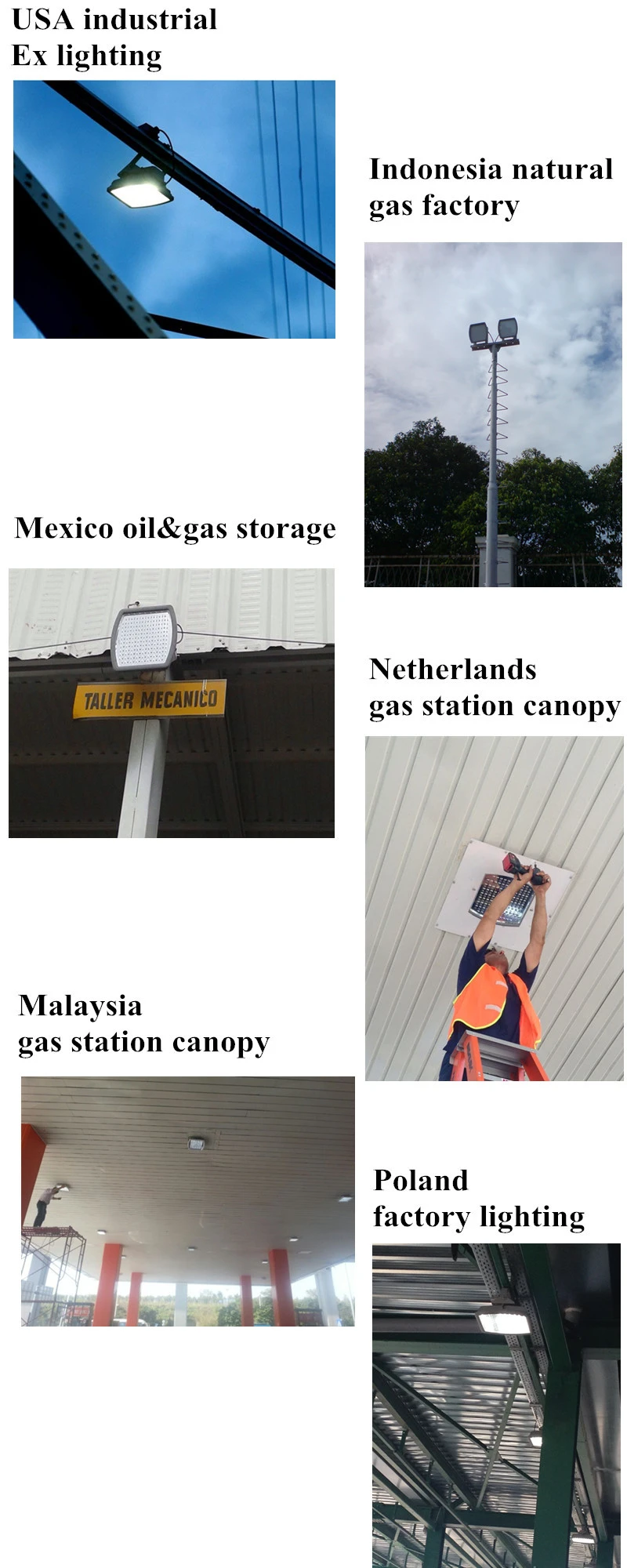

Application:
