- Light Source:LED
- Item Type:Tunnel Lights
- Place of Origin:CN;GUA
- Brand Name:CESP
- IP Rating:IP68
- Lamp Luminous Flux(lm):9000
- CRI (Ra>):72
- Warranty(Year):5
- Working Temperature(℃):-40 - 50
- Working Lifetime(Hour):100000
- Certification:CE
- Certification:Energy Star
- Certification:RoHS
- Input Voltage(V):AC100-277
- Lamp Power(W):100
- Lamp Body Material:Aluminum Alloy
- Model Number:CES-J100-B-RF-L
- LED Light Source:Bridgelux
- Lamp Luminous Efficiency(lm/w):90
- Color Temperature(CCT):5700-6500K

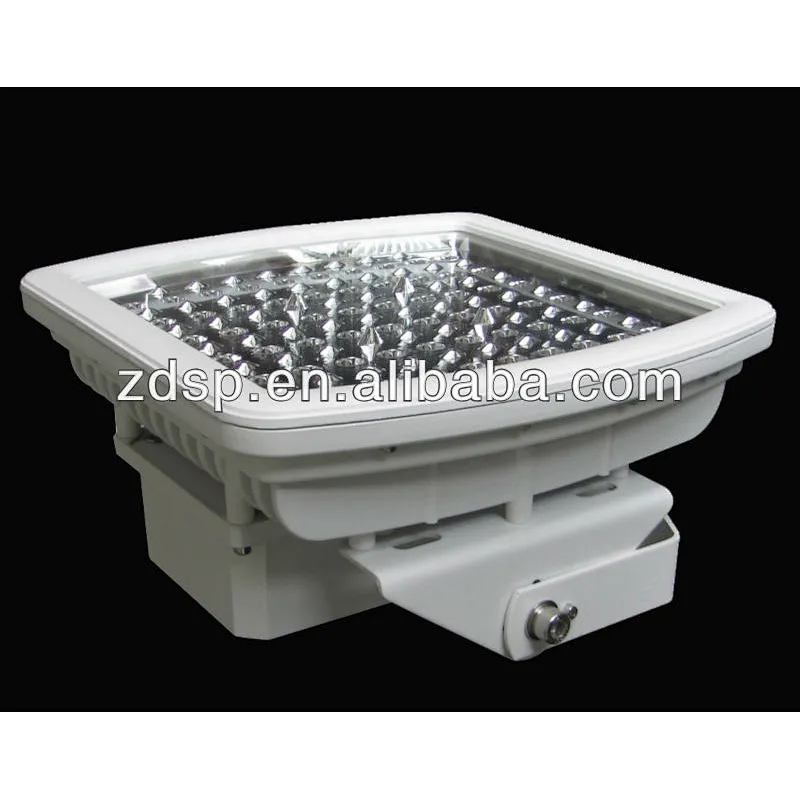

100w low price led tunnel light from China
• less energy,better illumination
Jaykal's patented 120W LED Wall Pack & Canopy Fixturs were engineered to replace up to a 450W Metal Halide Wall Pack or Canopy Fixture while delivering best-in-class lumen output at >70CRI.
• Go Green,Save Green
A Jaykal 120W LED Wall Pack & Canopy Fixture consumers up to 80% less energy than a tranditional fixture,saving both money and the environment.
• First in class lifespan
We can promise at least 50,000hours of use,usually,it's lifespan will be up to 100,000 hours.
• Superior efficiency,color rendering and power factor.

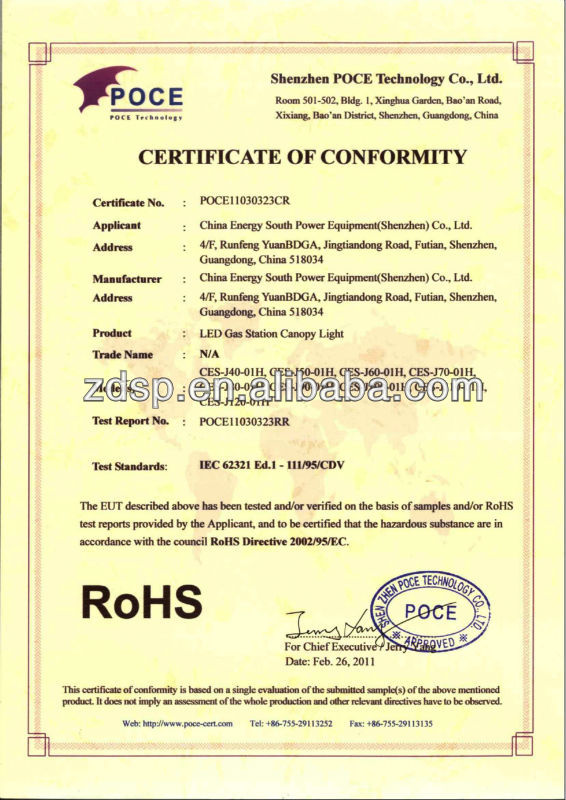

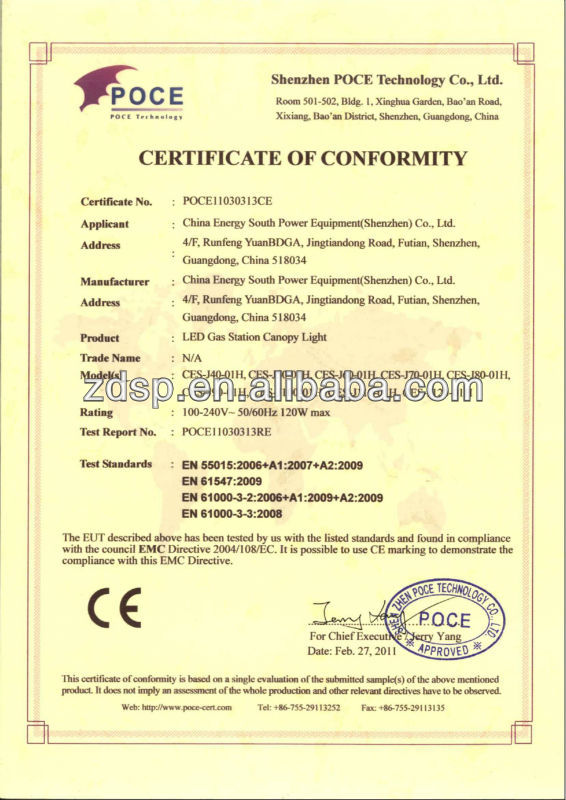

• UL,CUL,DCL,CE and RoHS certified.
• Warranty period: 5 years in standard.
• Famous brand of China in led lights.
| Product series | LED Tunnel Light | |||
| Model No. | CES-J120-B-RF-L | CES-J100-B-RF-L | CES-J80-B-RF-M | CES-J60-B-RF-M |
| Power | 120w | 100w | 80w | 60w |
Illuminant | equal to 450w Metal Halide Lamp | equal to 380w Metal Halide Lamp | equal to 320w Metal Halide Lamp | equal to 150w Metal Halide Lamp |
| Input Voltage | AC100-277v | AC100-277v | ||
| Frequency Range | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
| LED Brand | Bridgelux | Bridgelux | Bridgelux | Bridgelux |
| driver | Meanwell HLG Series | Meanwell HLG Series | ||
| LED quantity | 117pcs | 96pcs | 60pcs | 60pcs |
| Certified | UL/CUL/CE/RoHS | CE/RoHS | UL/CUL/CE/RoHS | CE/RoHS |
| IP rating | IP68 | IP68 | IP68 | IP68 |
| Power factor | 0.98 | 0.98 | 0.98 | 0.98 |
| Lumens | 10800lm | 9000lm | 7200lm | 5400lm |
| Lumen | 90lm/w | 90lm/w | 90lm/w | 90lm/w |
| W/O reflector | optional | optional | optional | optional |
| Beam Angle | 60°x30°(RF) /120°x120° | 60°x30°(RF) /120°x120° | ||
| working temperature | -40°C to 50°C | -40°C to 50°C | ||
| PCB heat index | 2.0 | 2.0 | 2.0 | 2.0 |
| product size | 400*400*185 mm | 300*300*185 mm | ||
| CCT | Warm White:2700 - 4000k Cool White:5500 - 6500k | |||
| CRI | ≥70% | ≥70% | ≥70% | ≥70% |
| lifespan | 50,000-100,000 hrs | 50,000-100,000 hrs | ||
| Material | Die-casting Alumium and tempered glass | Die-casting Alumium and tempered glass | ||
| outside carton | 460*460*240mm | 370*370*240mm | ||
| G.W./N.W.(kgs) | 12.50kgs/11.50kgs | 8.50kgs/7.50kgs | ||
