- Light Source:LED
- Item Type:Explosion-proof Lights
- Place of Origin:CN
- Input Voltage(V):AC110-277V
- Working Temperature(℃):-40 - 50
- LED Light Source:Bridgelux
- IP Rating:IP68
- Working Lifetime(Hour):500000
- Lamp Luminous Flux(lm):21275
- Base Type:FESTOON
- Lamp Power(W):185
- Certification:C-tick
- Certification:Energy Star
- Certification:FCC
- Certification:FDA
- Certification:GOST
- Certification:RoHS
- Certification:SASO
- Certification:UL
- Certification:VDE
- Lamp Luminous Efficiency(lm/w):115
LED Canopy Light for Gas Station(Automatic Dimming by Radar)
ATEX UL844 CUL DLC 120W explosion proof led gas station canopy light

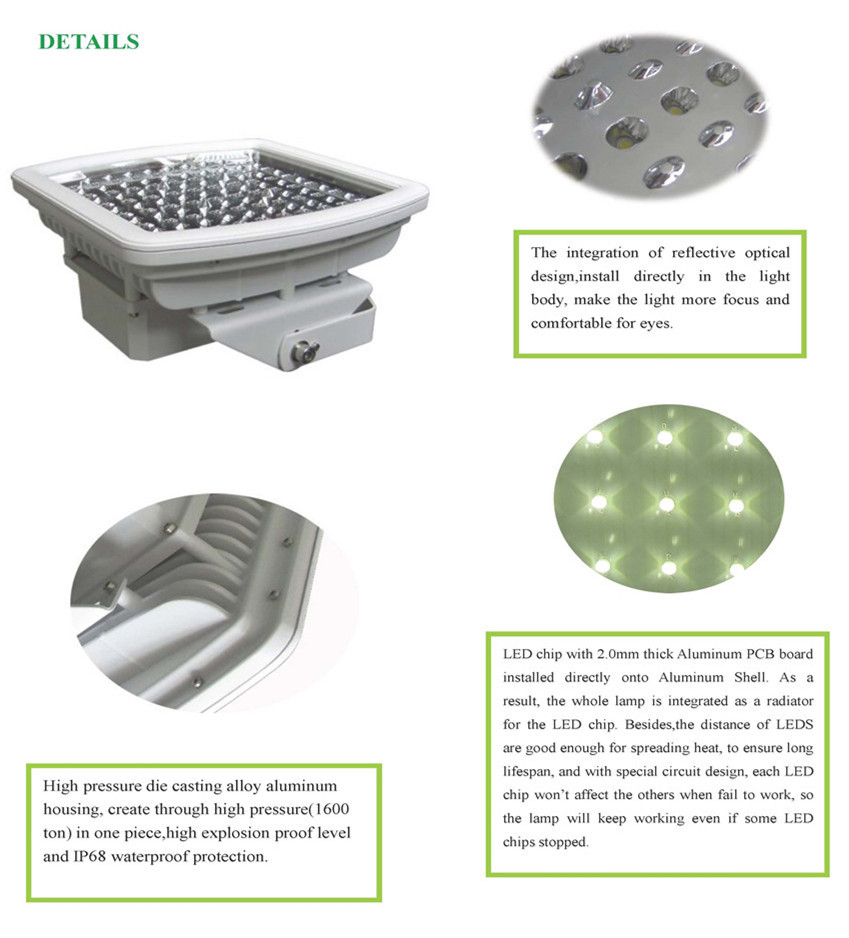

Key features;
-Die-cast aluminum by 1800 Ton of pressure to make the body strong enough.
-Powder Coated (similar to vehicles coating) and holder are cover with a thin layer of Zink, color can be ---customizable.
-IP 68, highest rating of protection.

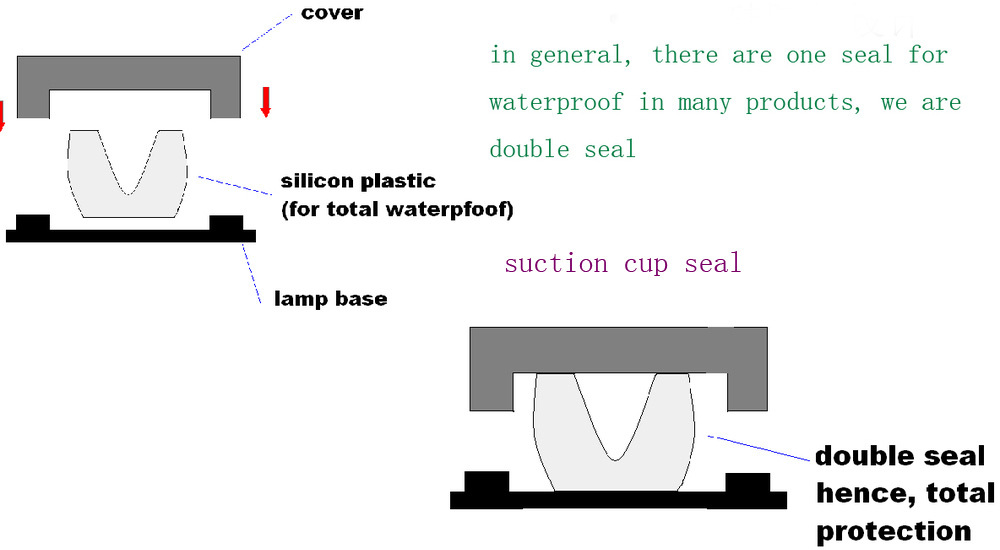

-Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.
-5 year warranty.
-Best driver: Meanwell HLG driver.
Specification:
Item No | Product Specification | Certificate for Europe | Certificate for US&Canada | ||||
Rated Power | Size(mm) | With reflector(RF) or not | Beam | IP | |||
Angle | Rating | ||||||
CES-J200 | 185W | 400*400*185mm | NO | 120°x120° | IP68 | CE/ROHS | UL/CUL/DLC |
CES-J150 | 150W | 400*400*185mm | NO | 120°x120° | IP68 | CE/ROHS | UL/CUL |
CES-J120 | 120W | 400*400*185mm | Optional | 60°x30°(RF) | IP68 | ATEX/CE/ROHS | UL/CUL |
CES-J100 | 100 | 300*300*175mm | NO | 120°x120° | IP68 | ATEX/CE/ROHS | UL/CUL/DLC |
CES-J80 | 80W | 300*300*175mm | Optional | 60°x30°(RF) | IP68 | ATEX/CE/ROHS | UL/CUL |
CES-J40S | 40W | 200*200*270mm | Optional | 60°x30°(RF) | IP68 | ATEX/CE/ROHS | UL/CUL/DLC |

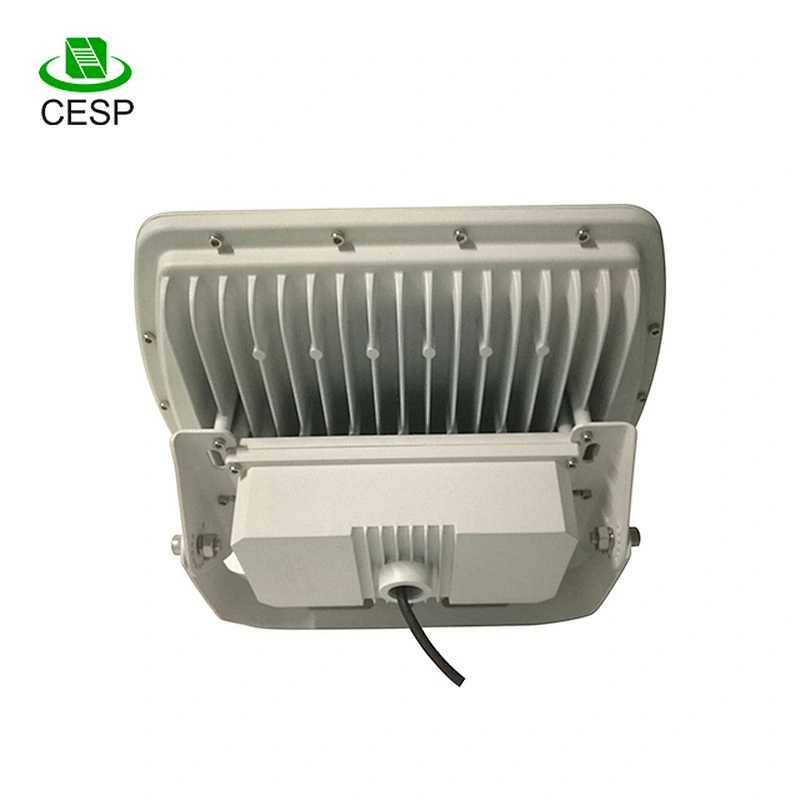

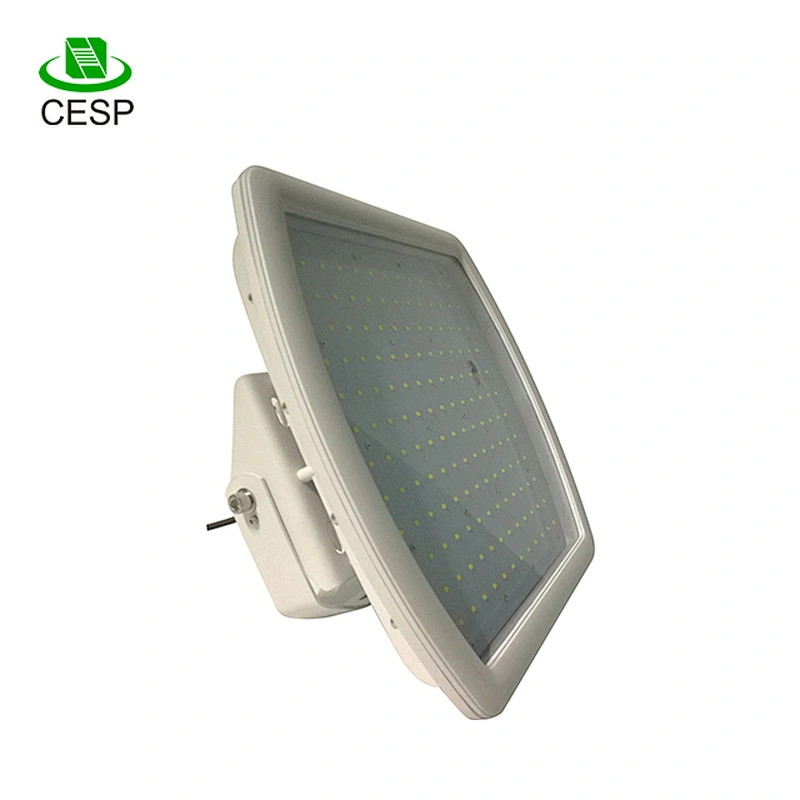

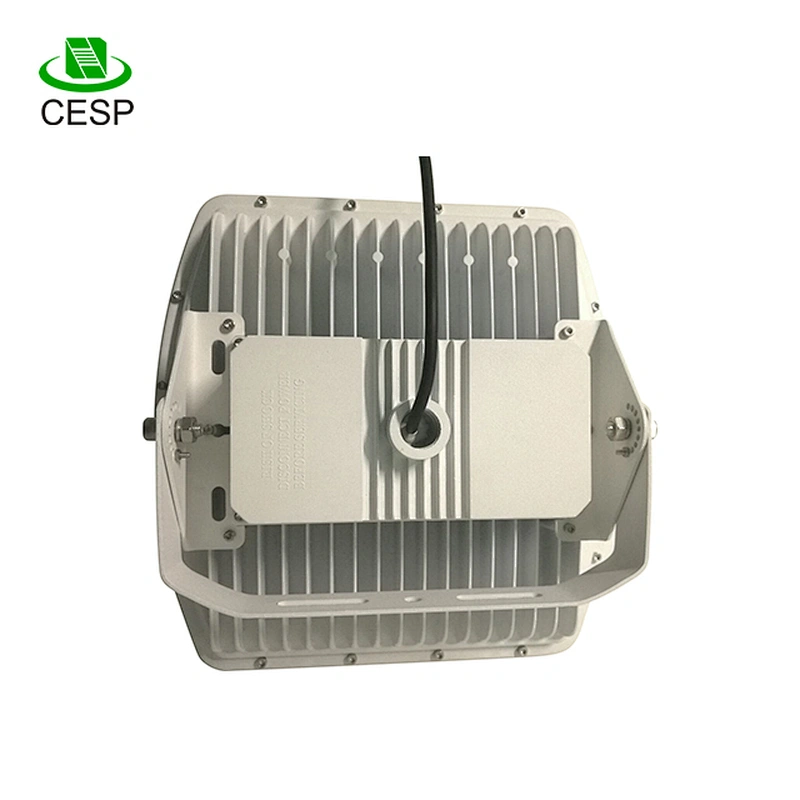

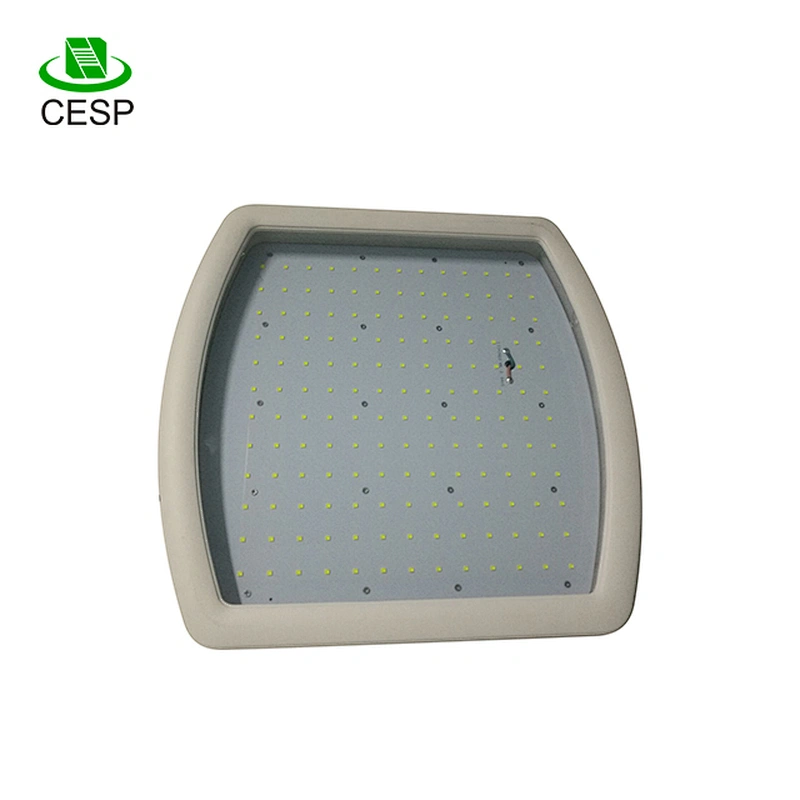

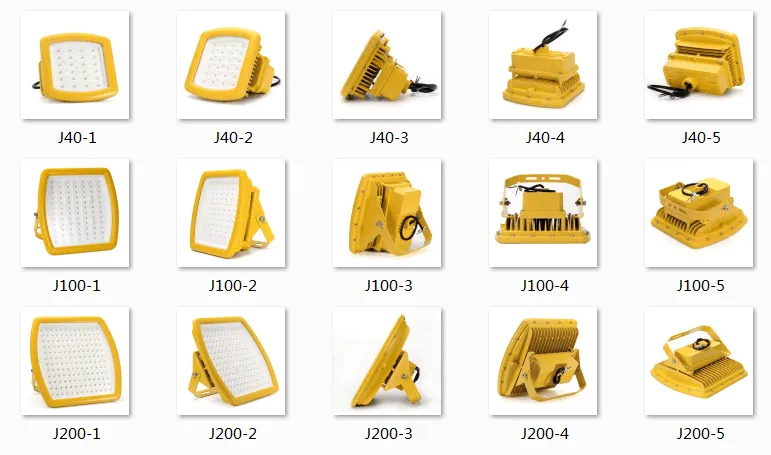

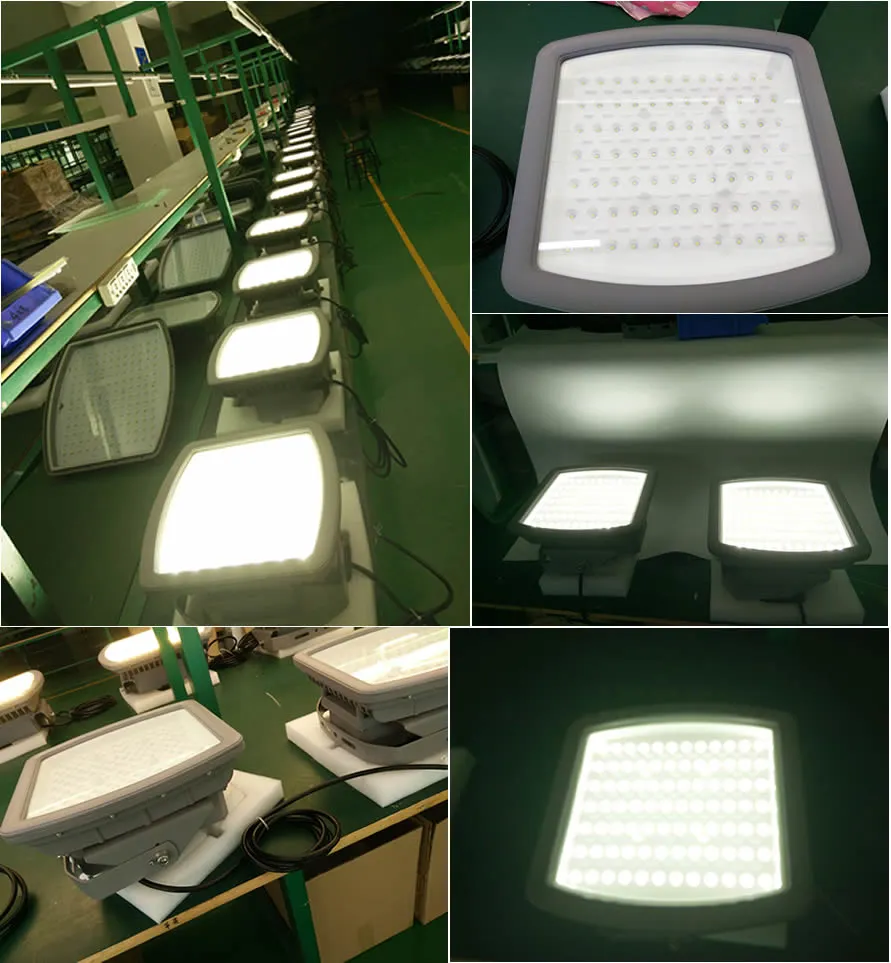

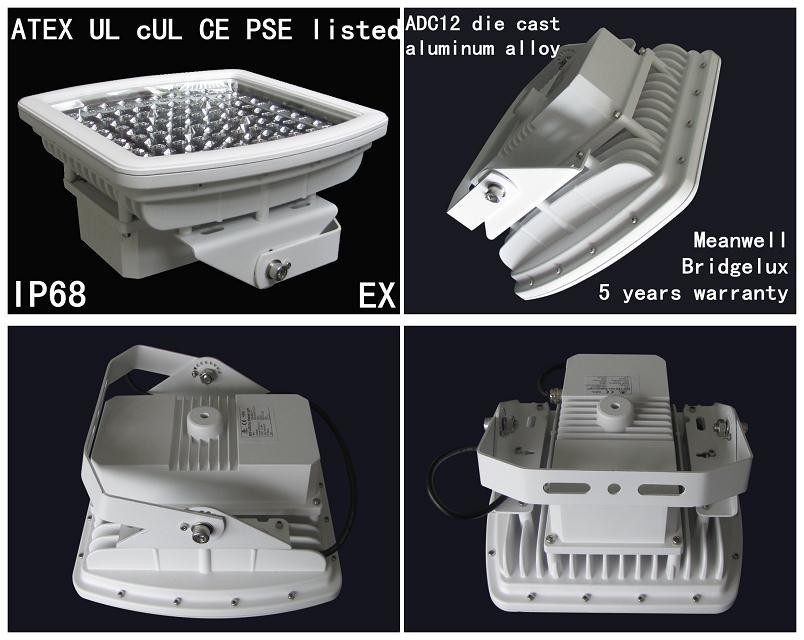

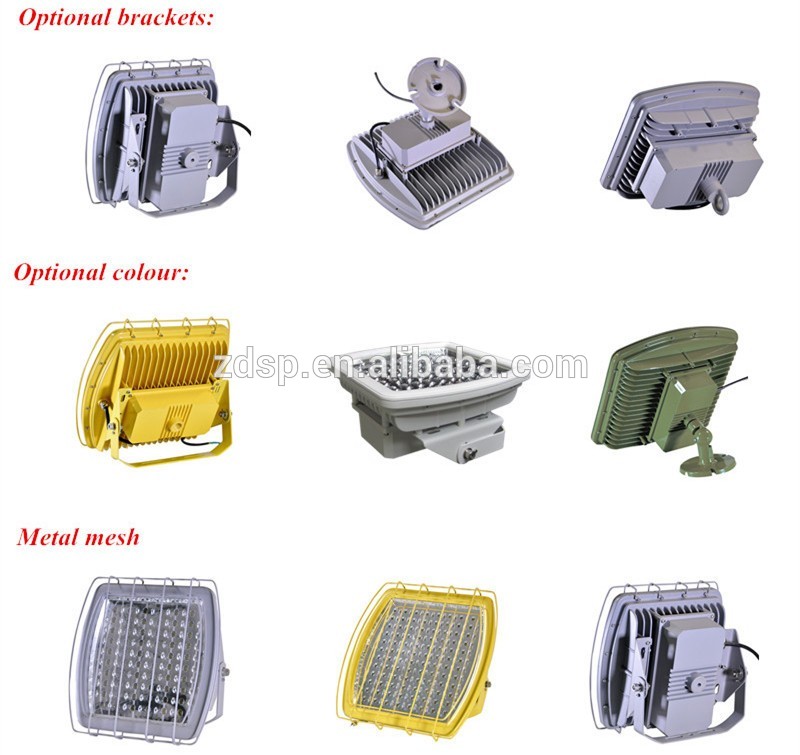

Product image:
Certification:

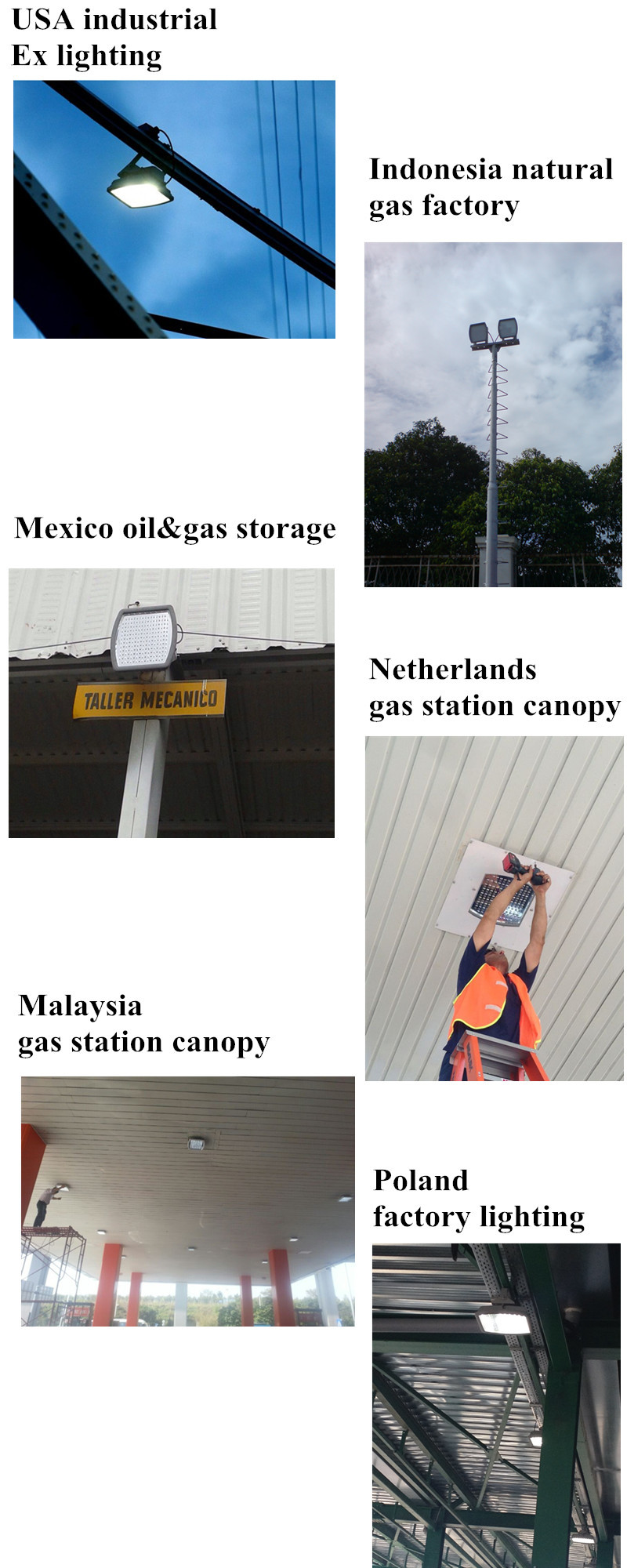

Project show:
Widely used in gas station canopy lighting , oil refinery industrial lighting , coal mine lighting and explosion proof flood lighting etc.

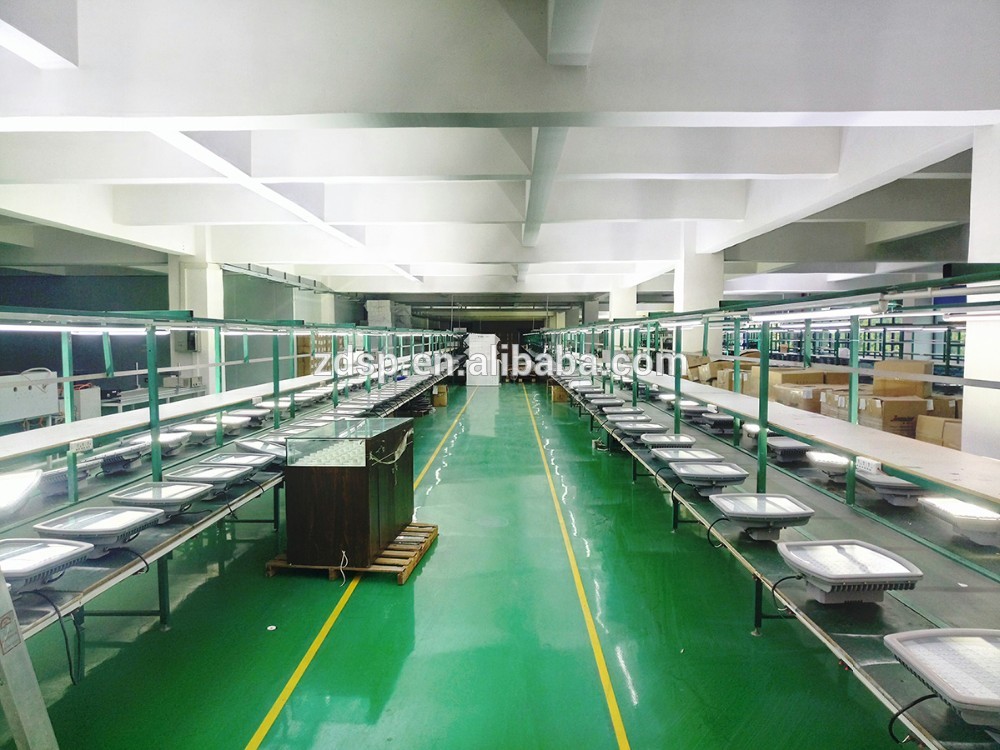

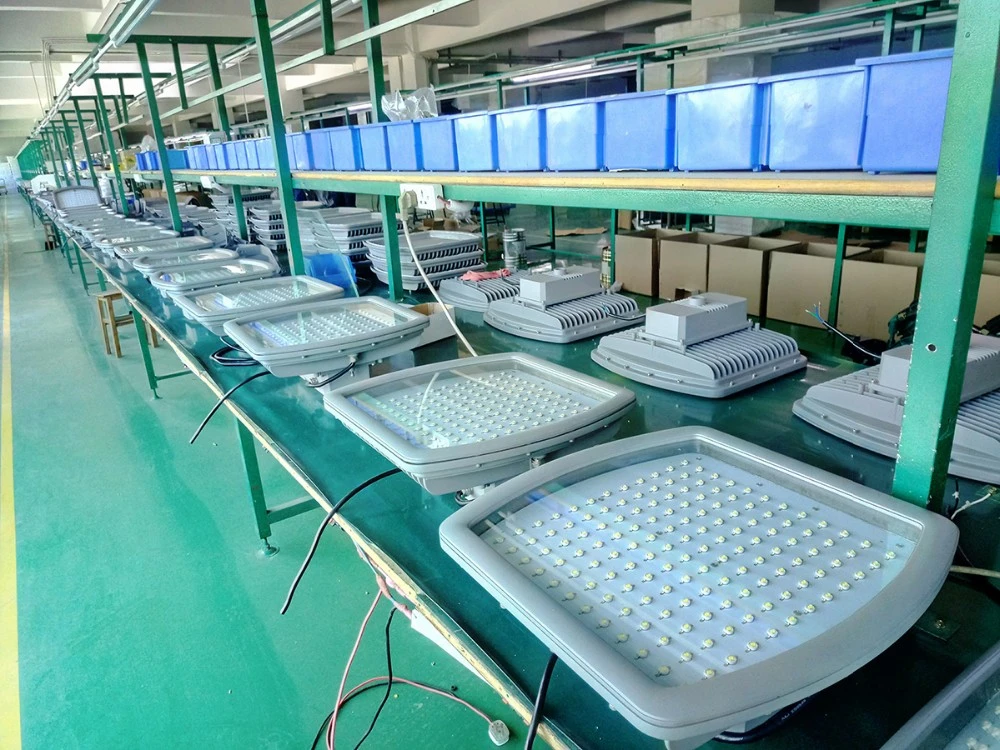

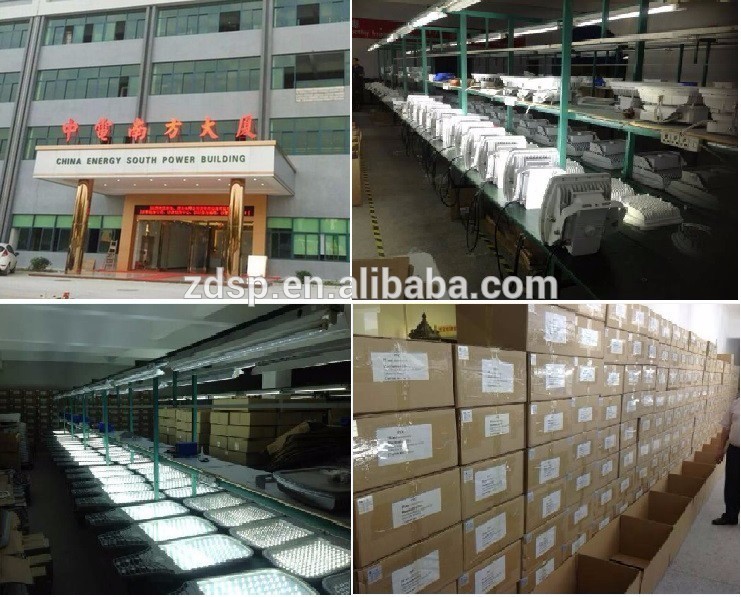

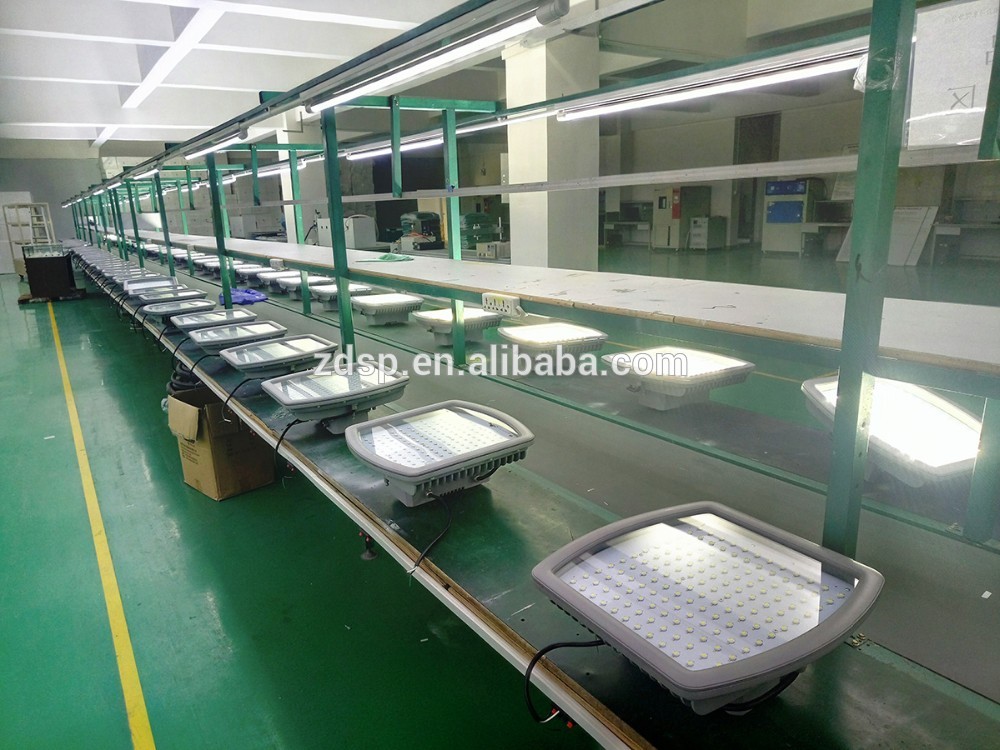

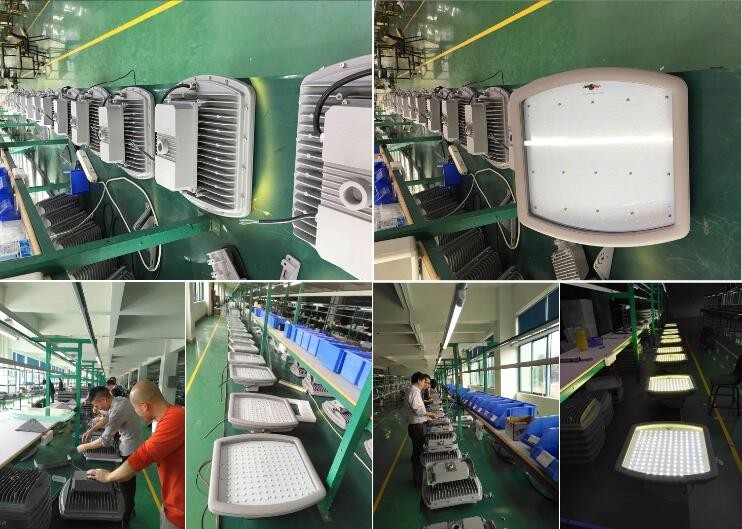

Factory show:
Contact information:
Shenzhen CESP Co.,Ltd.
Manufacturer of LED Explosion Proof Lamps, Led Highbay light, LED Street light.
Email: Mialee at cespeled.com
Mobile : 0086 13530470052
Wechat & whatsapp : 13530470052
