- Place of Origin:China
- Brand Name:CESPE
- Light Source:LED
- Item Type:Street Lights
- Application:garden/street/highwaybridge etc
- Lampshade Material:high pressure intergrated diecasting Aluminium alloy housing
- Power Supply:SOLAR/AC
- Lighting Bulbs & Tube:LED

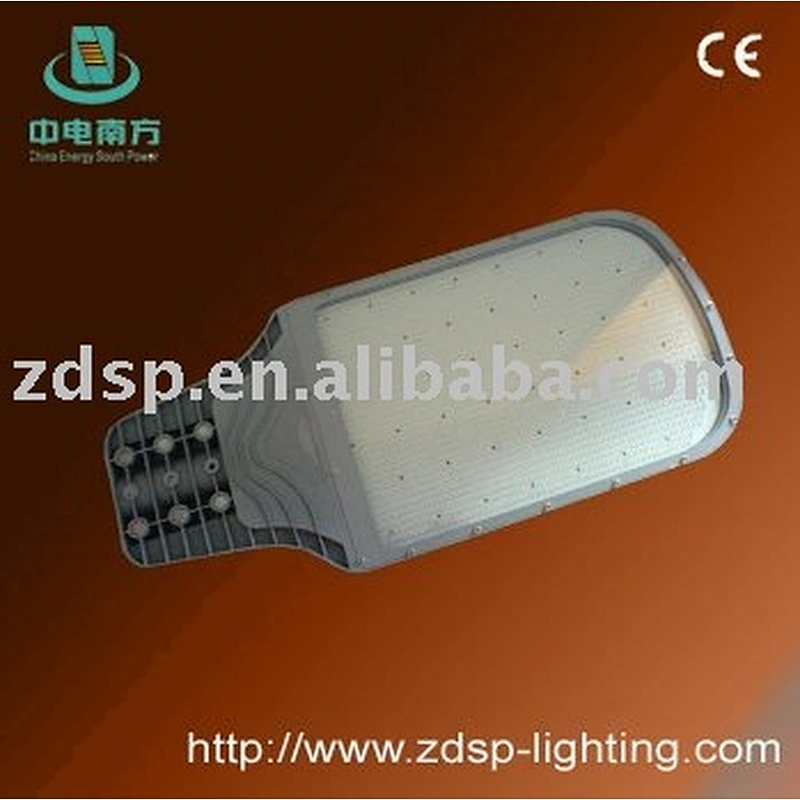

Expressway light
Parameters
| Model No: | CSES-L001-150WL | CSES-L002-120WL | CSES-L002-120WS | CSES-L003-90WL | CSES-L003-90WS | CSES-L004-60WL | CSES-L004-60WS | CSES-L005-30WL | CSES-L005-30WS |
| Power: | 150W | 120W | 120W | 90W | 90W | 60W | 60W | 30W | 30W |
| Voltage/frequency: | 85~265V ,50/60HZ |
| Power Factor: | ≥ 0.98 |
| Power Efficiency: | ≥ 85% |
| CRI: | >80, Could be as much as 90 ~100 |
| Colour Temperature: | 5000-6500K |
| Illuminance: | equivalent to HPS 550W | equivalent to HPS 400W | equivalent to HPS 250W | equivalent to HPS 150W | equivalent to HPS100W |
| Lamp material: | High pressure intergrated die-casting Aluminium alloy housing, waterproof, anti-dust, anti-corruption, anti-thunderstrike, rapid heat-dissipation. |
| Drive Style | Professional Static Sonatant Current |
| Protection Grade: | IP65 |
| Size: | 795*372*82.8 (mm*mm*mm) | 241*510*90 (mm*mm*mm) |
| Working Temperature: | -30 to 50 |
| Net Weight: | 10kg | 10kg | 10kg | 10kg | 10kg | 8kg | 8kg | 7.5kg | 7.5kg |
| Lifespan: | 50,000-100,000 hours, 20,000 hours luminous maintenance over 97%, 50,000 hours luminous maintenance around 90%. |
| Application: | for the lighting of streets, bridges and communities etc. |
| Quantity of LED beads :(pcs) | 150*1 | 120*1 | 2040*5 | 90*1 | 1452*5 | 60*1 | 945*5 | 30*1 | 680*5 |
| Luminous Efficiency: | ≥80lm |
| Luminous Flux | ≥ 12000lm | ≥ 9600lm | ≥9600lm | ≥ 7200lm | ≥ 7200lm | ≥ 4800lm | ≥ 4800lm | ≥ 2400lm | ≥ 2400lm |
| Price Terms | 1, MOQ 50pcs 2, Leadtime: 25~30 days 3, Payment by irrevocable L/C at sight or T/T in advance, 30% deposit, balance against B/L copy. | |
| Quality Warranty: | 3 years, 0.3~0.5% spare parts offered as aftersales service. |
