- Light Source:LED
- Item Type:Tunnel Lights
- Place of Origin:CN;GUA
- Brand Name:CESP Spirit Lighting
- IP Rating:IP68
- Lamp Luminous Flux(lm):11160
- CRI (Ra>):80
- Color Temperature(CCT):Cool White
- Warranty(Year):5
- Working Temperature(℃):-40 - 50
- Working Lifetime(Hour):50000
- Certification:CE
- Certification:Energy Star
- Certification:ETL
- Certification:RoHS
- Certification:UL
- Input Voltage(V):AC85-265V
- Lamp Power(W):120
- Lamp Body Material:Aluminum Alloy
- Model Number:CES-J120
- LED Light Source:Bridgelux /CREE
- Lamp Luminous Efficiency(lm/w):93
*actual product may vary from picture show.

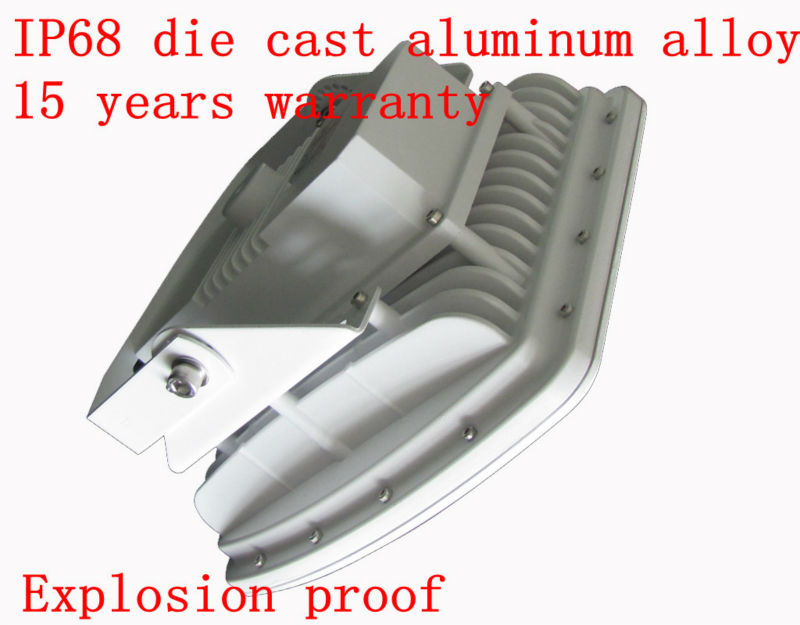

LED Anti Explosive Light:
Wall Mount
DIMENSIONS
LENGTH : 400mm
WIDTH : 400mm
HEIGHT : 185mm
WEIGHT: 11.5 KG
LED LIGHT ENGINE
- Cree XPE Group R3
(XPEWHT-L1-0000-00F01)
- Efficacy : up to 122lm @ 350Ma (per watt)
- Rated Life of 100,000+ hrs
- Operation temp: -30 ºC to +50 ºC
- No toxic chemicals/Rohs compliant
- 70%-80% saving compare to HPS/MH
PRODUCT FEATURE
- 5 years warranty
- Highest Ingress Protection rating : IP68
Note | ITEM NO. | DESCRIPTION | TOTAL POWER | Reflector/ wide angle | NOMINAL LUMENS | DRIVE CURRENT | # OF LEDS | SYSTEM EFFICACY |
UL/CUL/ CE Certify | CES-J120 | Replacing 400-500w HPS | 120 | Optional for both | 9240 | 350 mA | 96 | 77 LM/W |
*Total power consumption may vary due to installation location.
Perfection is the Goal
APPEARANCE
- Material: Die Cast Aluminum
- Light Color option: Cool White
Warm White
Custom color
- LENS: Super Clear Tempered Glass
ELECTRICAL CHARACTERISTICS
- Wide AC input: 90-305 VAC
- (UL marking: 100-240VAC/277VAC)
- Power Factor: ~0.98
- Total Harmonic Distortion: < 10%
- Surge protection: IEC/EN 61000-4-5
- EMC test standard
INSTALLATION
- Easy installation – plug and play
- Wall Mount bracket
QUALIFICATION
- CE: Recognition with CNAS
- ISO 14001: Recognition with IAF & CNAS
- ISO 9001: Recognition with IAF & CNAS
- UL & CUL Certify : ANSI/UL 1598 & ANSI/UL 8750
