- Light Source:LED
- Item Type:High Bay Lights
- Place of Origin:CN;GUA
- Color Temperature(CCT):Cool White
- Model Number:150w flood light
- Brand Name:CESP
- Lamp Body Material:Aluminum Alloy
- Input Voltage(V):AC100-277V
- Working Temperature(℃):-40 - 50
- CRI (Ra>):70
- LED Light Source:Bridgelux
- IP Rating:IP68
- Working Lifetime(Hour):100000
- Lamp Luminous Flux(lm):15000
- Warranty(Years):5
- Lamp Power(W):150
- Certification:C-tick
- Certification:CCC
- Certification:CE
- Certification:CQC
- Certification:EMC
- Certification:FCC
- Certification:LVD
- Certification:PSE
- Certification:RoHS
- Certification:SAA
- Certification:UL
- Lamp Luminous Efficiency(lm/w):100
Products strength:
Very low lighting decay rate.
Suitable for wide and small lighting angle.
Key features;
-Die-cast aluminum by 1800 Ton of pressure to make the body strong enough and explosion proof.
-Powder Coated (similar to vehicles coating) and holder are cover with a thin layer of Zink, color can be ---customizable.
-IP 68, highest rating of protection.
-Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.
-5 year warranty.
-Best driver: Meanwell HLG driver.
Main Technology | |
LED Chips: | BridgeLux LED chips packaged professionally ensure the light source kept in optimum performance; mirror surface processed technology collect and reflect the invalid light into efficiency; use of lens controls the horizontal and vertical beam angle actively. |
Power Supply: | To use world’s leading brand MeanWell power supply ensure the fixture works in stableness with better performance and enjoy its long life; power supply is CE RoHS TUV CB certificated. |
Heat Dissipation: | LEDs combined with aluminum radiator directly and closely make the LEDs have better performance of heat dissipation; sufficient area of aluminum radiator and full range air permeability of the fixture reduce the optical attenuation and control LEDs failure. |
Specification:
Item No | Product Specification | Certificate for Europe | Certificate for US&Canada | ||||
Rated Power | Size(mm) | With reflector(RF) or not | Beam | IP | |||
Angle | Rating | ||||||
CES-J200 | 185W | 400*400*185mm | NO | 120°x120° | IP68 | CE/ROHS | UL/CUL/DLC/UL844 |
CES-J150 | 150W | 400*400*185mm | NO | 120°x120° | IP68 | CE/ROHS | UL/CUL |
CES-J120 | 120W | 400*400*185mm | Optional | 60°x30°(RF) | IP68 | ATEX/CE/ROHS | UL/CUL |
CES-J100 | 100W | 300*300*175m | NO | 120°x120° | IP68 | ATEX/CE/ROHS | UL/CUL/DLC/UL844 |
CES-J80 | 80W | 300*300*175mm | Optional | 60°x30°(RF) | IP68 | ATEX/CE/ROHS | UL/CUL |
CES-J60 | 60W | 300*300*175mm | Optional | 60°x30°(RF) | IP68 | ATEX/CE/ROHS | UL/CUL |
CES-J40S | 40W | 200*200*270mm | Optional | 120°x120° | IP68 | ATEX/CE/ROHS | UL/CUL/DLC/UL844 |
LED Specification | Driver Specification | |||||||||
Item No. | LED QTY | Lumens | Lumen | CCT | CRI | Input V | Input Current | PF | THD | Type |
Lm/W | ||||||||||
CES-J200 | 156 pcs | 18500 | 100Lm/W | Cool White:5700-6500K | >70 | AC100-277V | 350mA | >0.98 | <10% | HLG MEANWELL driver with IP68 protective Aluminum Housing |
CES-J150 | 144 pcs | 15000 | 100Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||
CES-J120 | 96 pcs | 12000 | 100Lm/W | Natural White:3700-4500K | >70 | AC100-277V | 350mA | >0.98 | <10% | |
CES-J100 | 84 pcs | 10000 | 100Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||
CES-J80 | 60pcs | 8000 | 100Lm/W | Warm White:2700-3500K | >70 | AC100-277V | 350mA | >0.98 | <10% | |
CES-J60 | 60pcs | 6000 | 100Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||
CES-J40S | 24pcs | 4000 | 100Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||

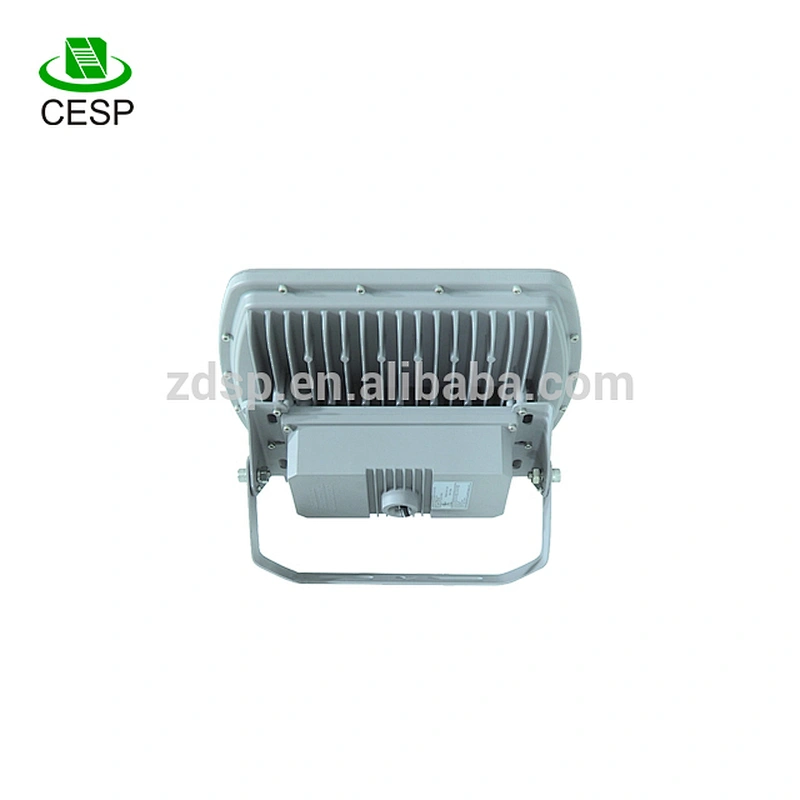

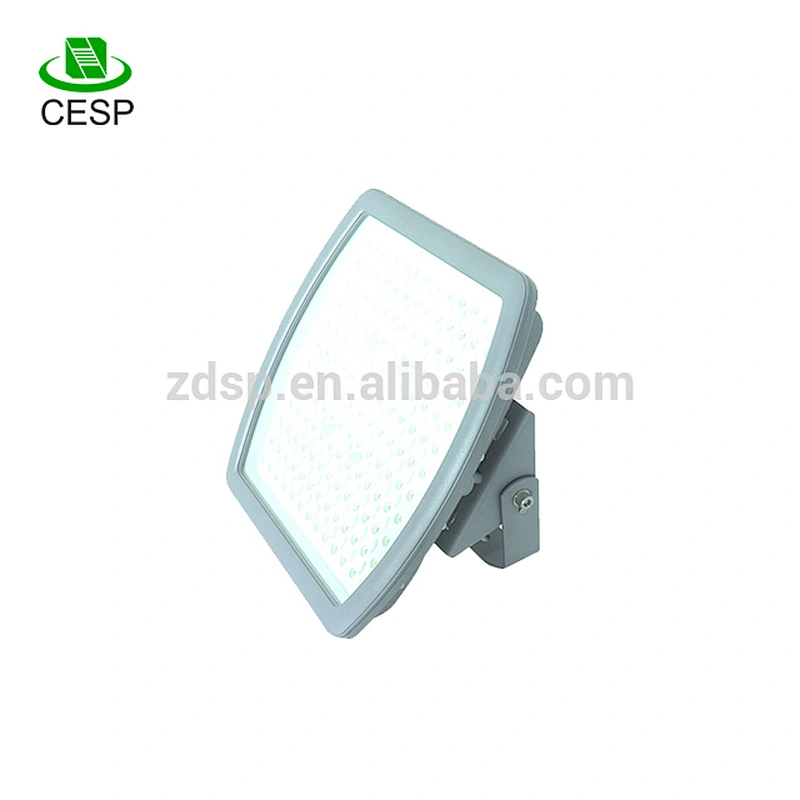

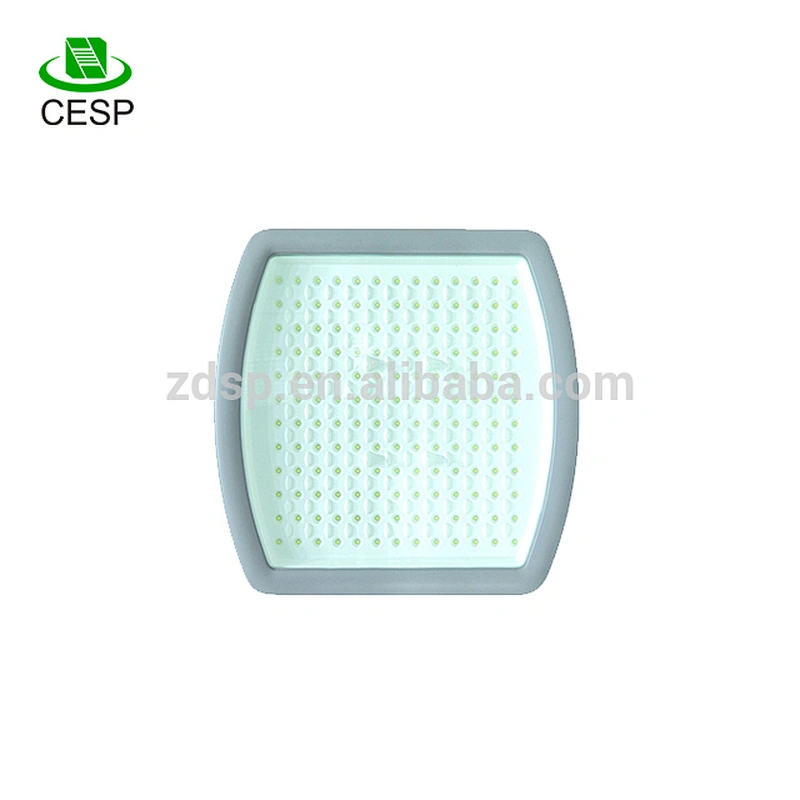

Product image:
Photometric design:
Dimension:
Applications:
