- Light Source:LED
- Item Type:High Bay Lights
- Color Temperature(CCT):Cool White
- Lamp Body Material:Aluminum Alloy
- IP Rating:IP68
- Certification:C-tick
- Certification:CCC
- Certification:CE
- Certification:CQC
- Certification:EMC
- Certification:FCC
- Certification:LVD
- Certification:PSE
- Certification:RoHS
- Certification:SAA
- Certification:UL
- Place of Origin:CN;GUA
- LED Light Source:Bridgelux
- Warranty(Years):5
- Input Voltage(V):AC100-277V
- Lamp Luminous Flux(lm):10000
- Lamp Luminous Efficiency(lm/w):100
- CRI (Ra>):70
- Working Temperature(℃):-40 - 50
- Working Lifetime(Hour):100000
- Brand Name:CESP
Why CESP?
1. For hazardous area lighting such as gas station lighting,oil refinery lighting, mining lighting etc. it is fairly important to choose qualified products because the security for hazardous area lighting is essential.
2. CESP is a specilized LED manufacturer in explosion proof lighting area, with CE/ROHS/UL/CUL/DLC/SAA/PSE certification, and most important, we passed ATEX(Z1&Z2&Z21&Z22), UL844(Class 1 Div. 2) and CNEX explosion proof certification, CESP is the first and only manufacturer who passed UL844, which makes us the leading manufacturer in high power LED lighting.

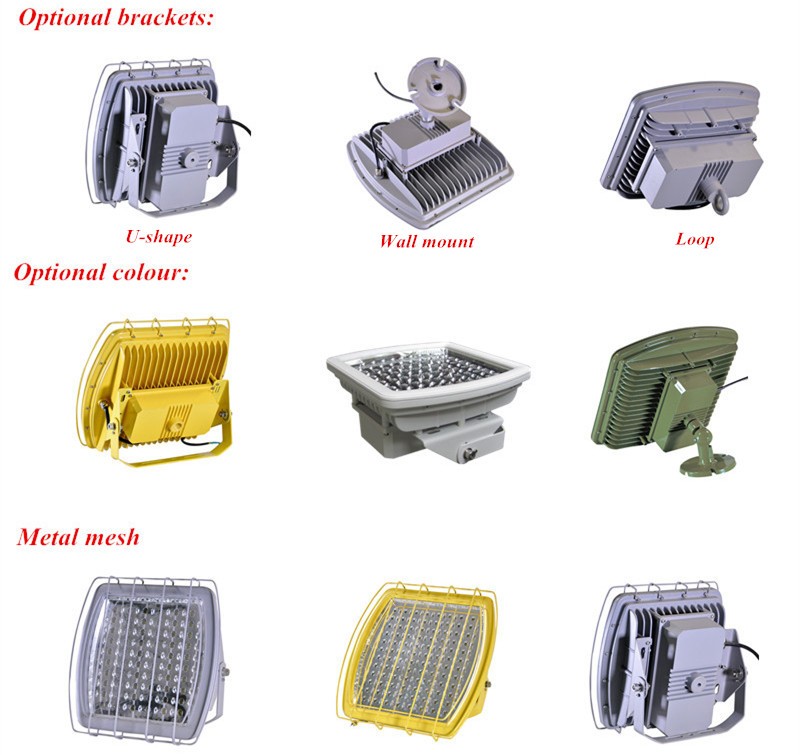

3. By now we have a whole series LED EXPLOSION PROOF LIGHTS , including 20W-185W wide power range and various installation brackets, and also customizable product color. can satisfy most of the hazardous area lighting applications.
Key features;
-Die-cast aluminum by 1800 Ton of pressure to make the body strong enough and explosion proof.
-Powder Coated (similar to vehicles coating) and holder are cover with a thin layer of Zink, color can be ---customizable.
-IP 68, highest rating of protection.

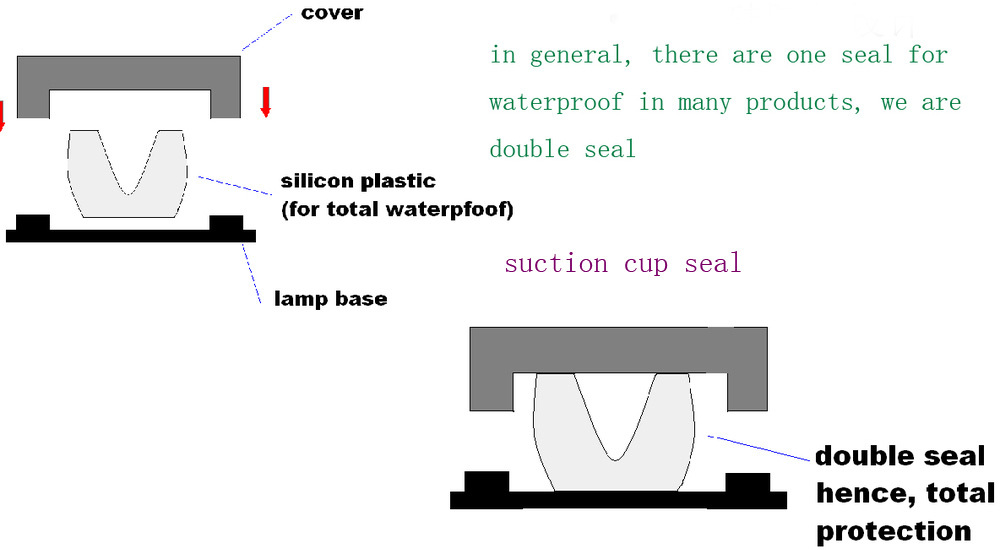

-Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.
-5 year warranty.
-Best driver: Meanwell HLG driver.
Main Technology | |
LED Chips: | BridgeLux LED chips packaged professionally ensure the light source kept in optimum performance; mirror surface processed technology collect and reflect the invalid light into efficiency; use of lens controls the horizontal and vertical beam angle actively. |
Power Supply: | To use world’s leading brand MeanWell power supply ensure the fixture works in stableness with better performance and enjoy its long life; power supply is CE RoHS TUV CB certificated. |
Heat Dissipation: | LEDs combined with aluminum radiator directly and closely make the LEDs have better performance of heat dissipation; sufficient area of aluminum radiator and full range air permeability of the fixture reduce the optical attenuation and control LEDs failure. |
Specification:
Item No | Product Specification | Certificate for Europe | Certificate for US&Canada | ||||
Rated Power | Size(mm) | With reflector(RF) or not | Beam | IP | |||
Angle | Rating | ||||||
CES-J200 | 185W | 400*400*185mm | NO | 120°x120° | IP68 | CE/ROHS | UL/CUL/DLC/UL844 |
CES-J150 | 150W | 400*400*185mm | NO | 120°x120° | IP68 | CE/ROHS | UL/CUL |
CES-J120 | 120W | 400*400*185mm | Optional | 60°x30°(RF) | IP68 | ATEX/CE/ROHS | UL/CUL |
CES-J100 | 100W | 300*300*175m | NO | 120°x120° | IP68 | ATEX/CE/ROHS | UL/CUL/DLC/UL844 |
CES-J80 | 80W | 300*300*175mm | Optional | 60°x30°(RF) | IP68 | ATEX/CE/ROHS | UL/CUL |
CES-J60 | 60W | 300*300*175mm | Optional | 60°x30°(RF) | IP68 | ATEX/CE/ROHS | UL/CUL |
CES-J40S | 40W | 200*200*270mm | Optional | 120°x120° | IP68 | ATEX/CE/ROHS | UL/CUL/DLC/UL844 |
LED Specification | Driver Specification | |||||||||
Item No. | LED QTY | Lumens | Lumen | CCT | CRI | Input V | Input Current | PF | THD | Type |
Lm/W | ||||||||||

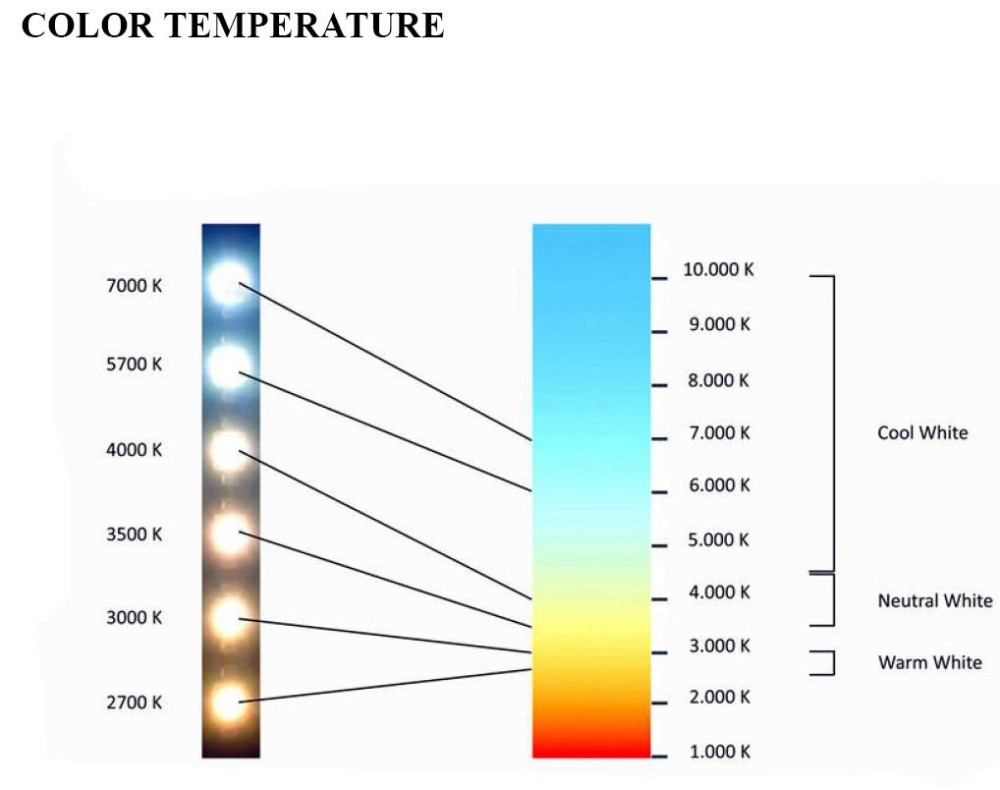

CES-J200 | 156 pcs | 18500 | 100Lm/W | Cool White:5700-6500K | >70 | AC100-277V | 350mA | >0.98 | <10% | HLG MEANWELL driver with IP68 protective Aluminum Housing |
CES-J150 | 144 pcs | 15000 | 100Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||
CES-J120 | 96 pcs | 12000 | 100Lm/W | Natural White:3700-4500K | >70 | AC100-277V | 350mA | >0.98 | <10% | |
CES-J100 | 84 pcs | 10000 | 100Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||
CES-J80 | 60pcs | 8000 | 100Lm/W | Warm White:2700-3500K | >70 | AC100-277V | 350mA | >0.98 | <10% | |
CES-J60 | 60pcs | 6000 | 100Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||
CES-J40S | 24pcs | 4000 | 100Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||

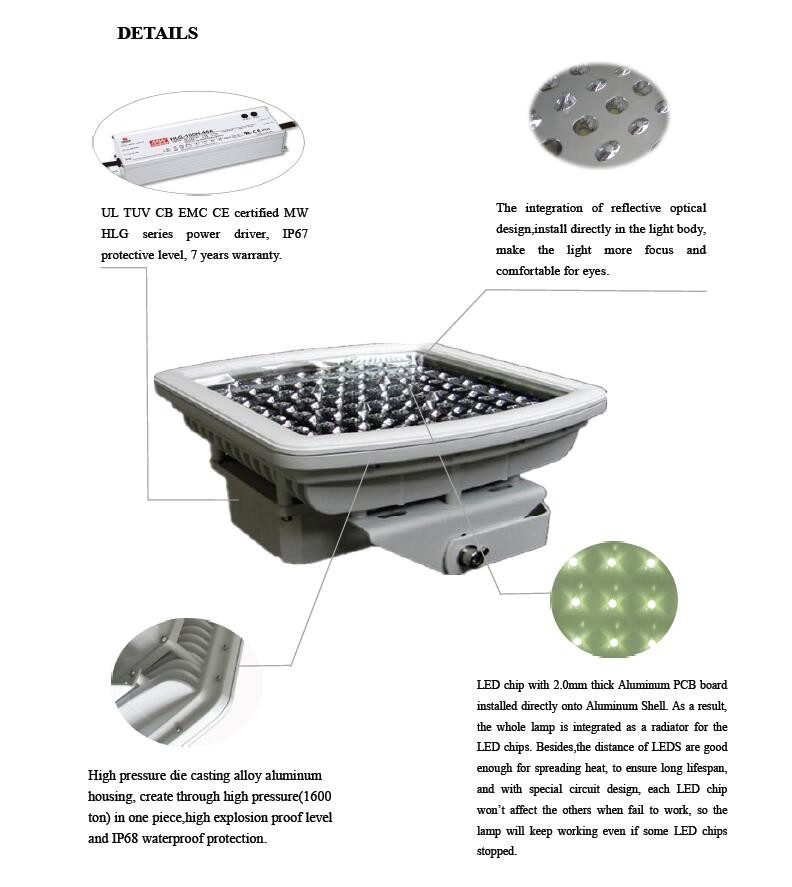

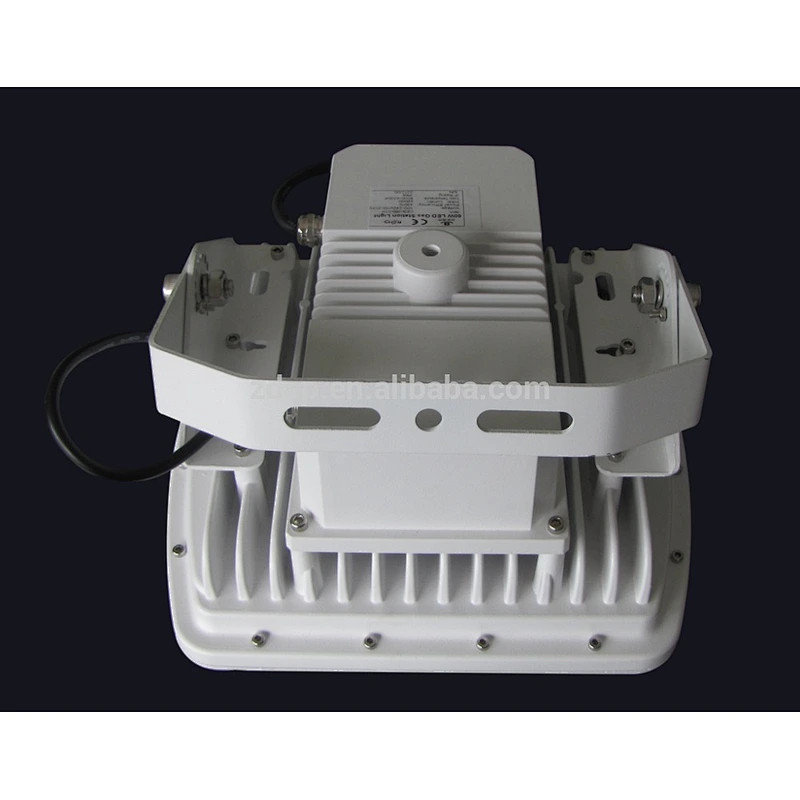

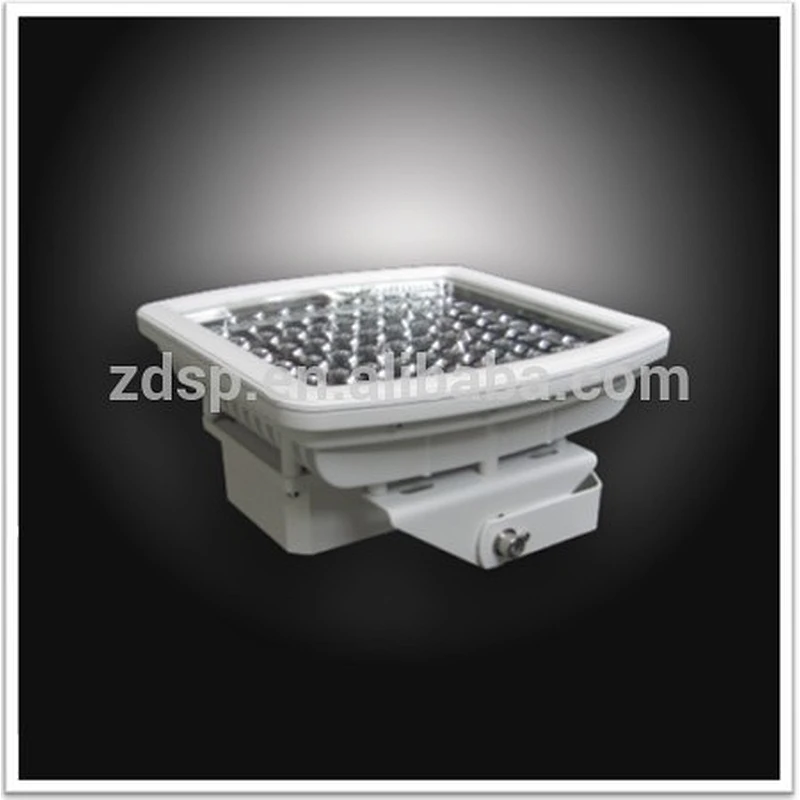

Product image:

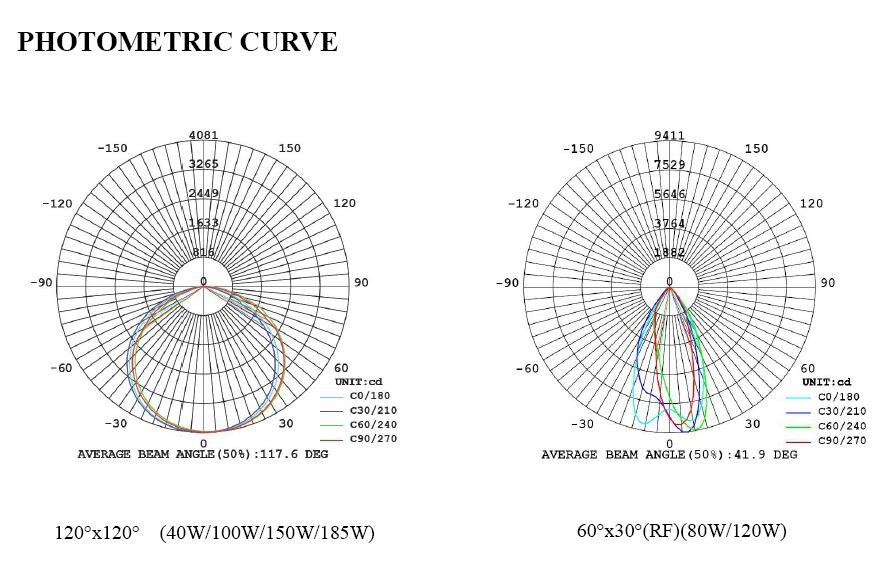

Photometric design:

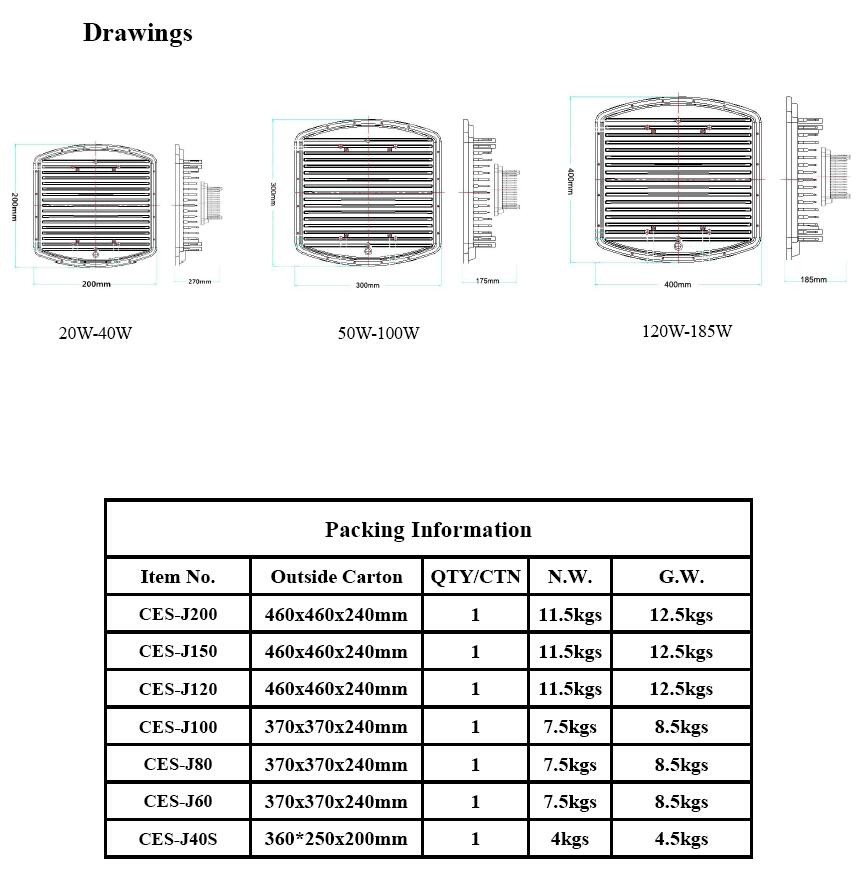

Dimension:

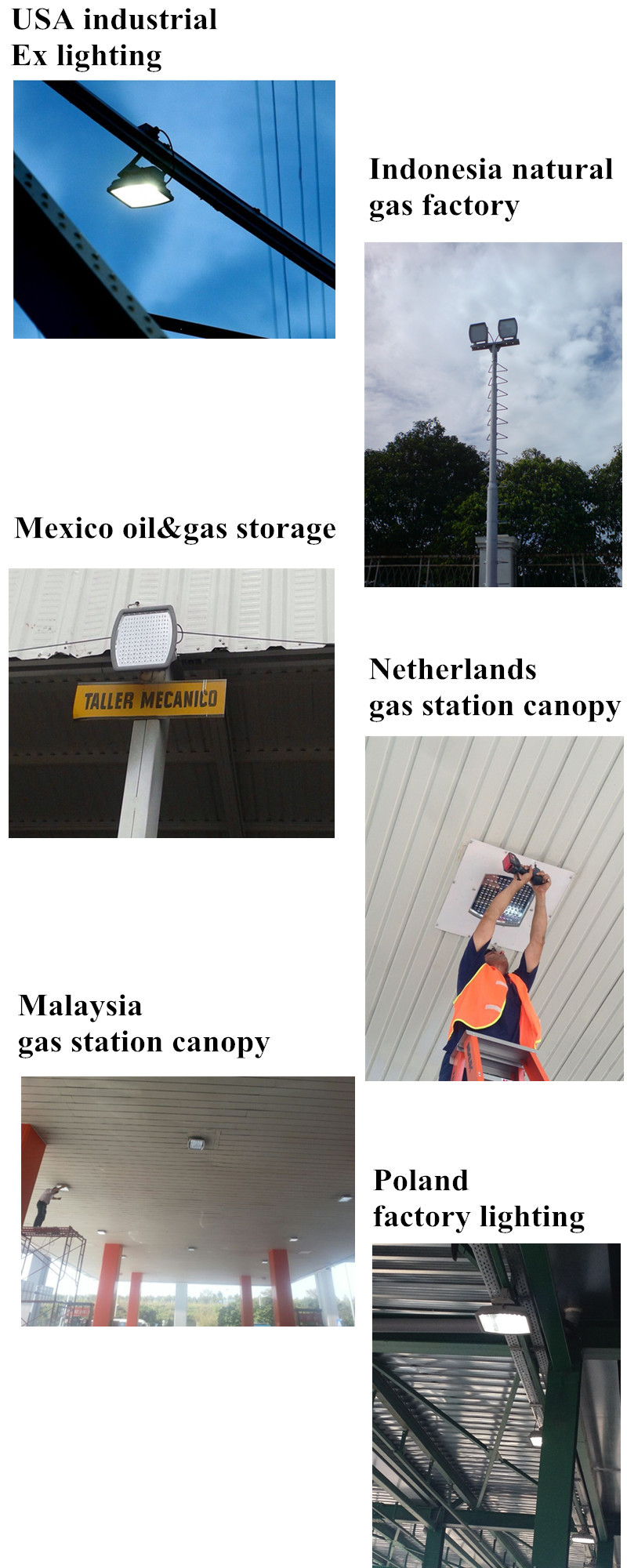

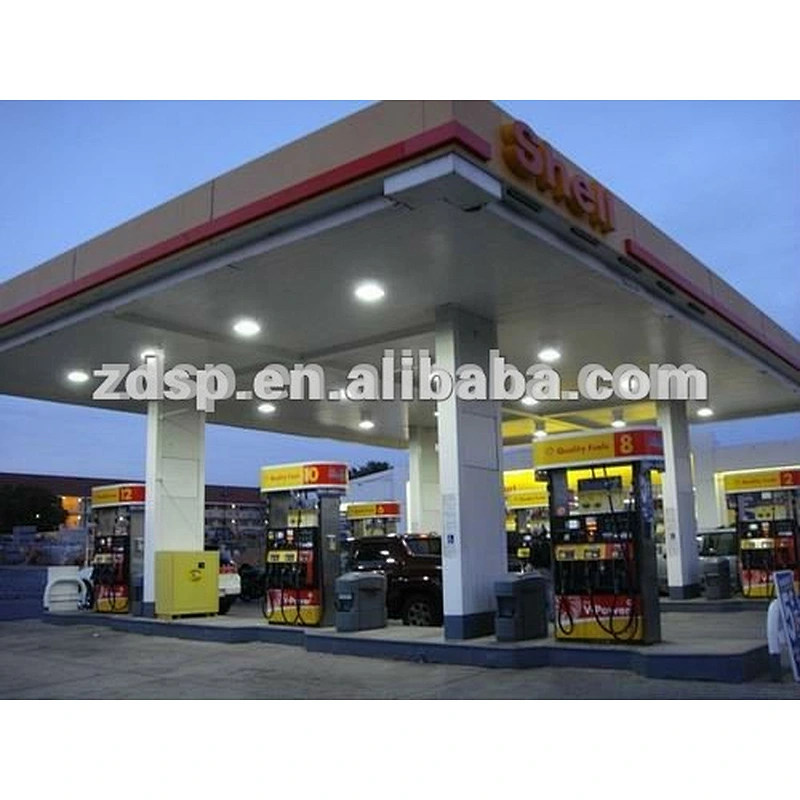

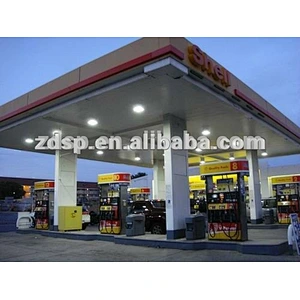

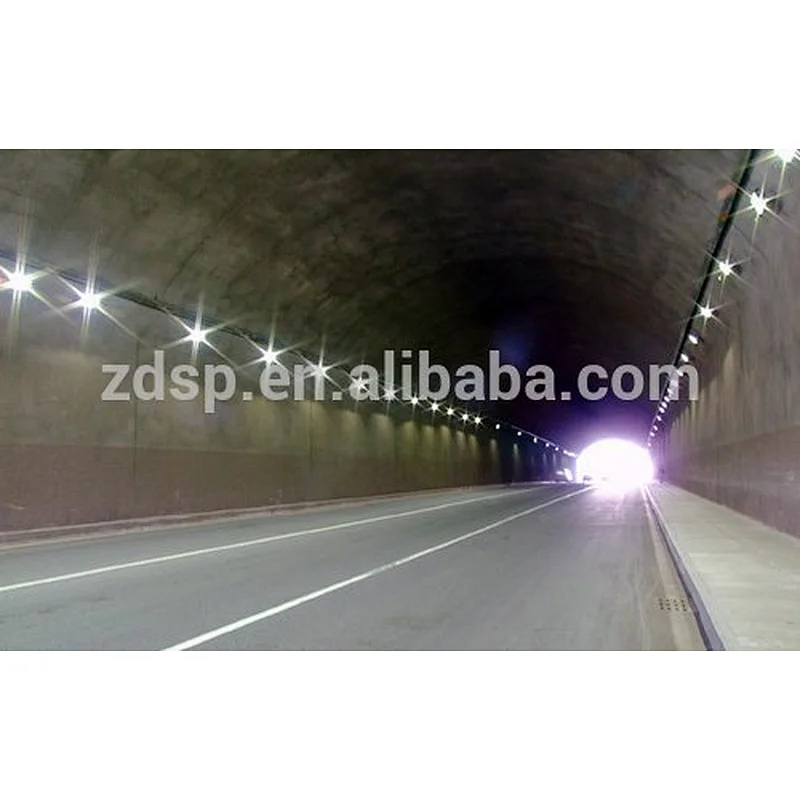

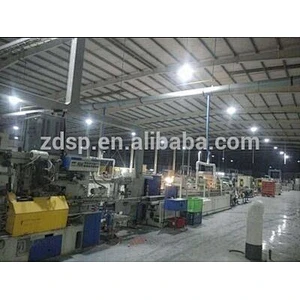

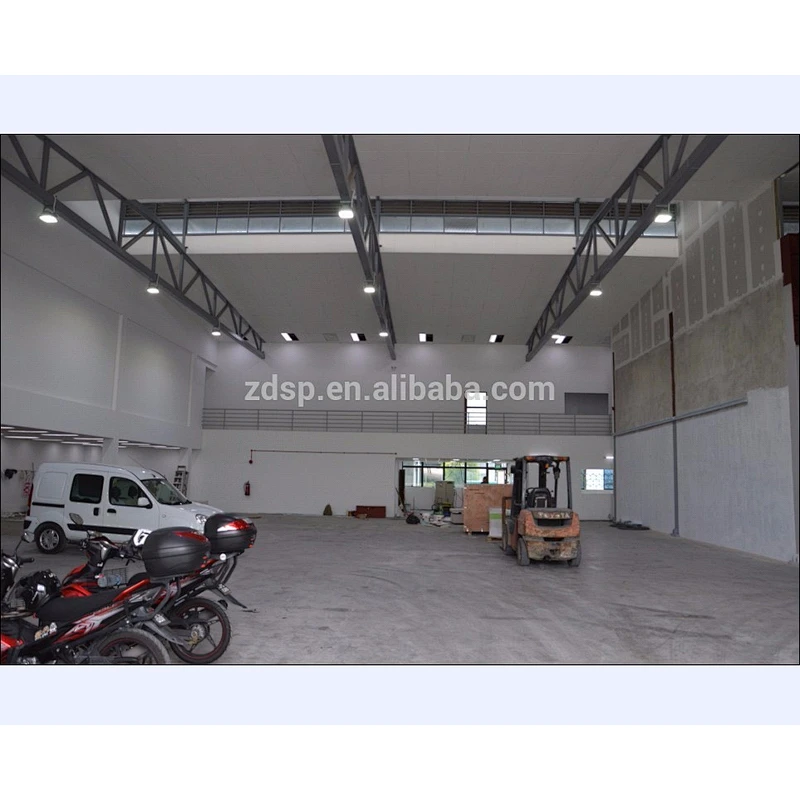

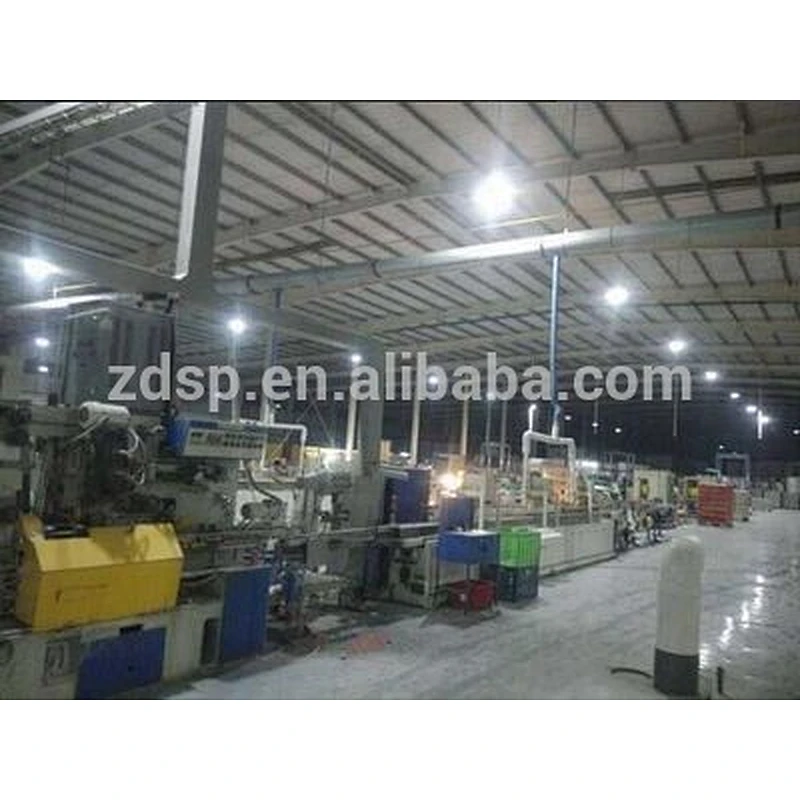

Applications:
Head office:

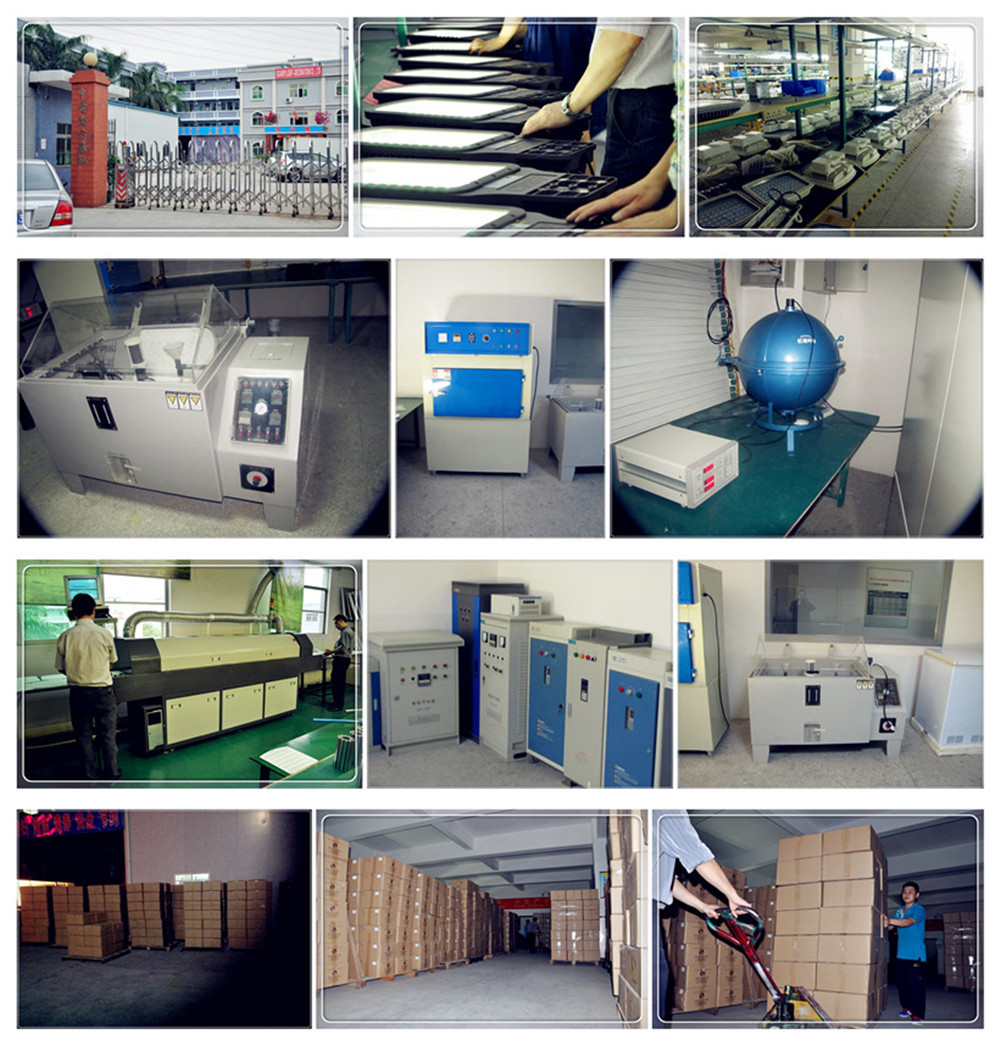

Factory:
5 years warranty IP68 ATEX UL844 40w led explosion proof light
