- Light Source:LED
- Item Type:Explosion-proof Lights
- Place of Origin:CN
- Color Temperature(CCT):Warm White
- Input Voltage(V):AC100-277V
- Working Temperature(℃):-40 - 50
- LED Light Source:Bridgelux
- IP Rating:IP68
- Working Lifetime(Hour):5000
- Lamp Luminous Flux(lm):4000
- Base Type:FESTOON
- Lamp Power(W):100
- Emitting Color:White
- Certification:C-tick
- Certification:CCC
- Certification:CE
- Certification:CQC
- Certification:FCC
- Certification:FDA
- Certification:GS
- Certification:PSE
- Certification:RoHS
- Certification:SAA
- Certification:UL
- Lamp Luminous Efficiency(lm/w):115

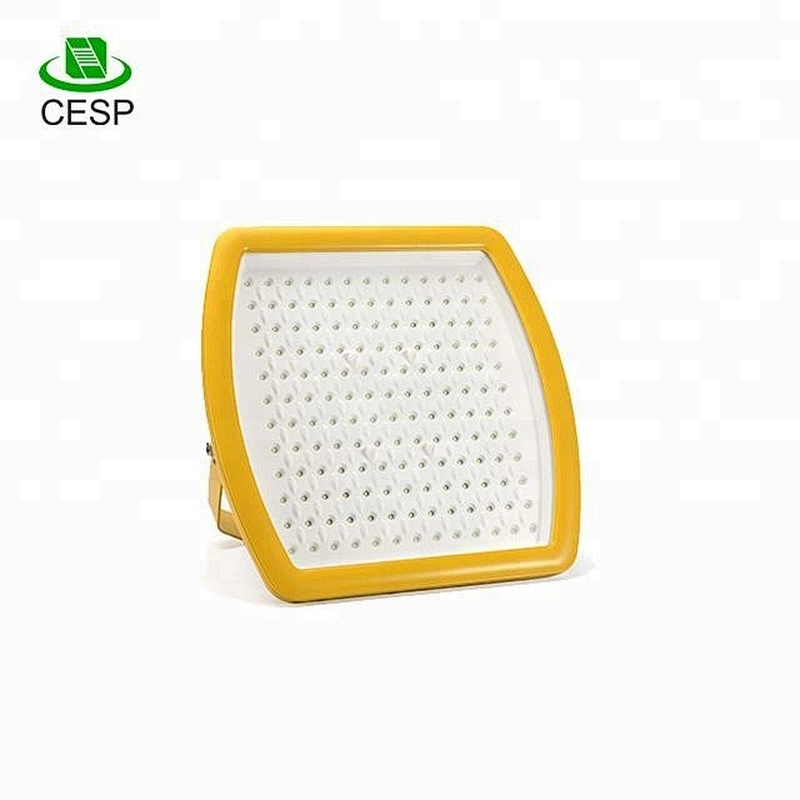

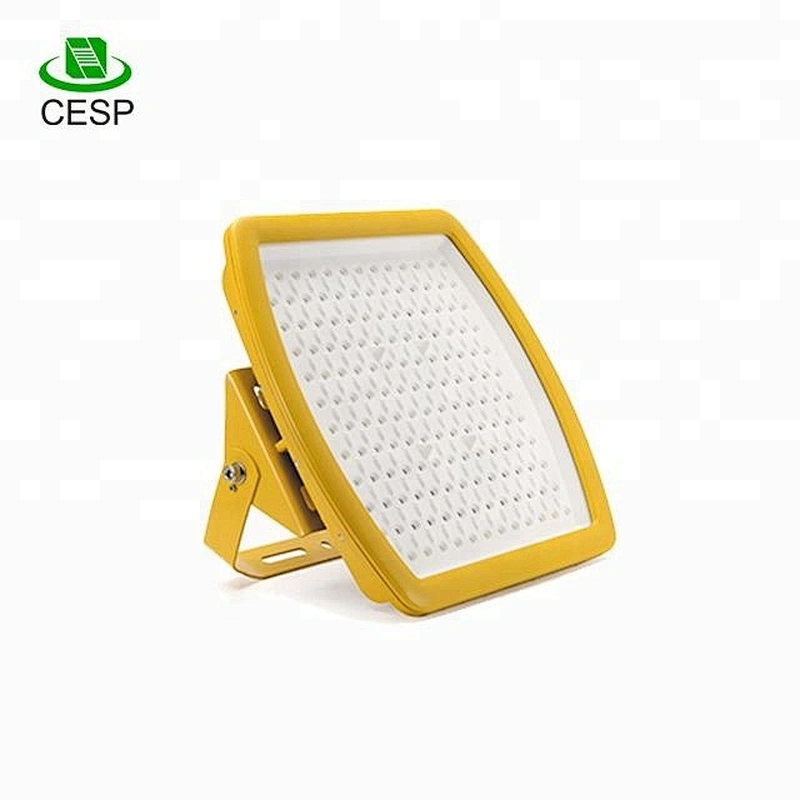

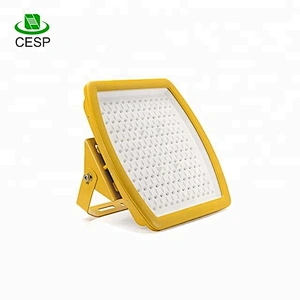

high quality industrial light explosion proof lighting fixtures 40W led Tri-proof light

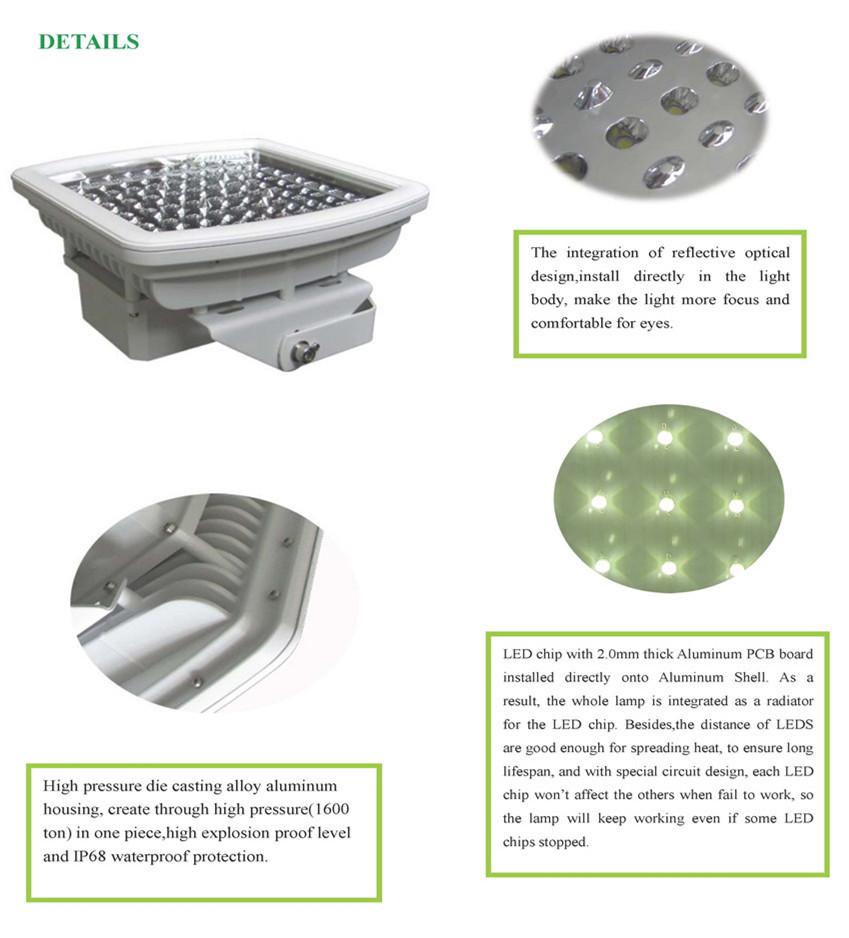

Key features:
-Die-cast aluminum by 1800 Ton of pressure to make the body strong enough.
- tested strictly: waterproof test, photometric test, high temperature simulated environment test, salt spray corrison test, vibration test, lighting protection, leak-proof test, dust-proof & oil-proof teste.
-IP 68, highest rating of protection.

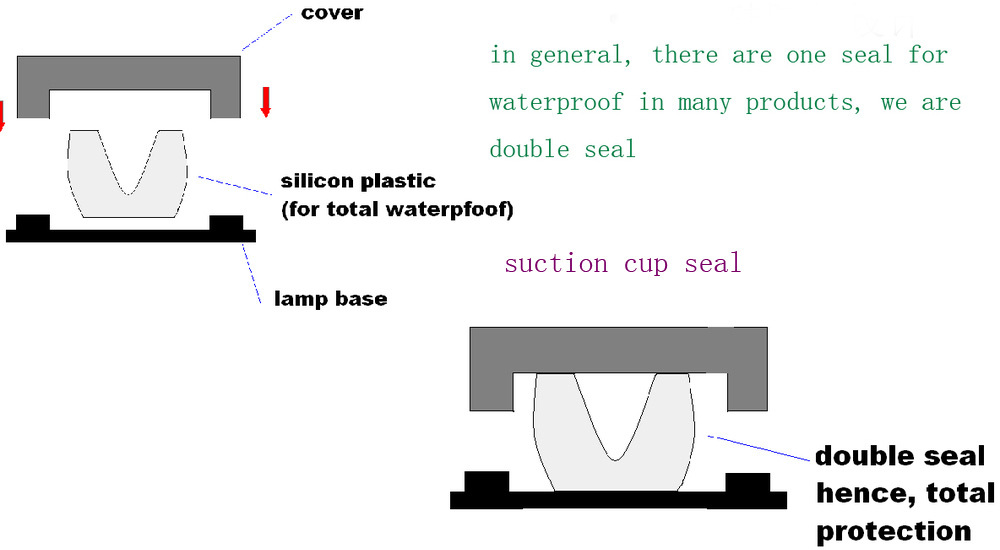

-Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.
-5 year warranty.
-Best driver: Meanwell HLG driver.
Specification:
Item No | Product Specification | Certificate for Europe | Certificate for US&Canada | ||||
Rated Power | Size(mm) | With reflector(RF) or not | Beam | IP | |||
Angle | Rating | ||||||
CES-J200 | 185W | 400*400*185mm | NO | 120°x120° | IP68 | CE/ROHS | UL/CUL/DLC |
CES-J150 | 150W | 400*400*185mm | NO | 120°x120° | IP68 | CE/ROHS | UL/CUL |
CES-J120 | 120W | 400*400*185mm | Optional | 60°x30°(RF) | IP68 | ATEX/CE/ROHS | UL/CUL |
CES-J100 | 100 | 300*300*175mm | NO | 120°x120° | IP68 | ATEX/CE/ROHS | UL/CUL/DLC |
CES-J80 | 80W | 300*300*175mm | Optional | 60°x30°(RF) | IP68 | ATEX/CE/ROHS | UL/CUL |
CES-J40S | 40W | 200*200*270mm | Optional | 60°x30°(RF) | IP68 | ATEX/CE/ROHS | UL/CUL/DLC |
LED Specification | Driver Specification | |||||||||
Item No. | LED QTY | Lumens | Lumen | CCT | CRI | Input V | Input Current | PF | THD | Type |
Lm/W | ||||||||||
CES-J200 | 156 pcs | 16550 | 90Lm/W | Cool White: 5700-6500K | >70 | AC100-277V | 350mA | >0.98 | <10% | HLG MEANWELL driver with IP68 protective Aluminum Housing |
CES-J150 | 144 pcs | 13500 | 90Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||
CES-J120 | 96 pcs | 10800 | 90Lm/W | Natural White: 3700-4500K | >70 | AC100-277V | 350mA | >0.98 | <10% | |
CES-J100 | 84 pcs | 9000 | 90Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||
CES-J80 | 60pcs | 7200 | 90Lm/W | Warm White: 2700-3500K | >70 | AC100-277V | 350mA | >0.98 | <10% | |
CES-J40S | 24pcs | 3600 | 90Lm/W | >70 | AC100-277V | 350mA | >0.98 | <10% | ||

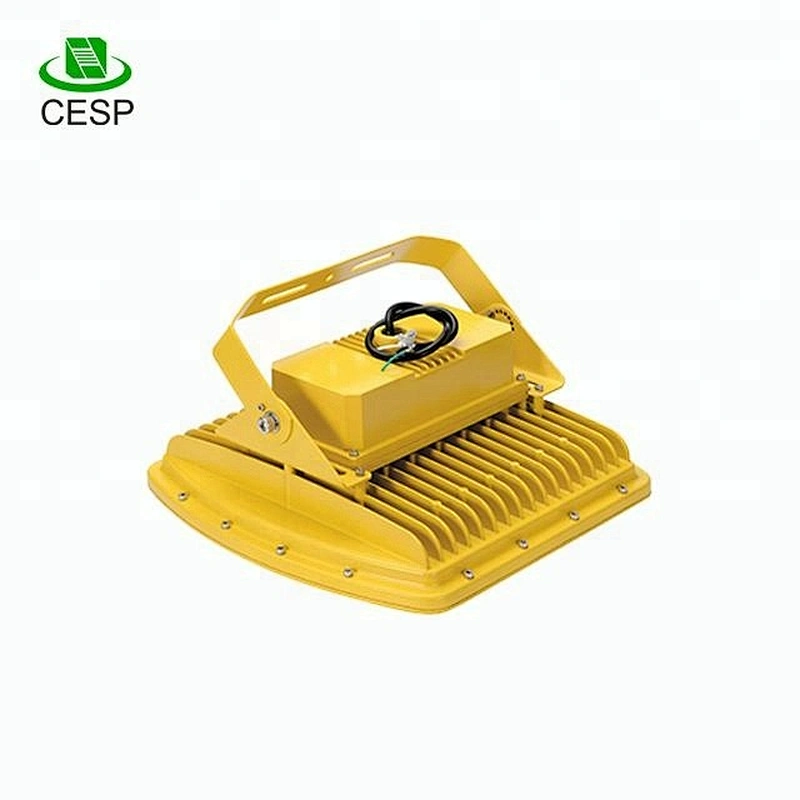

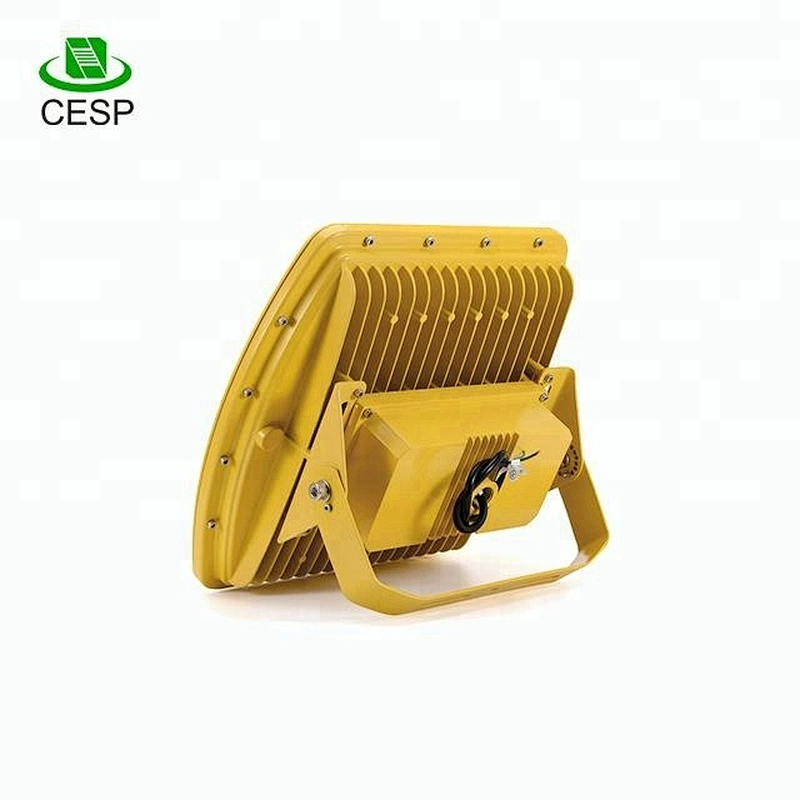

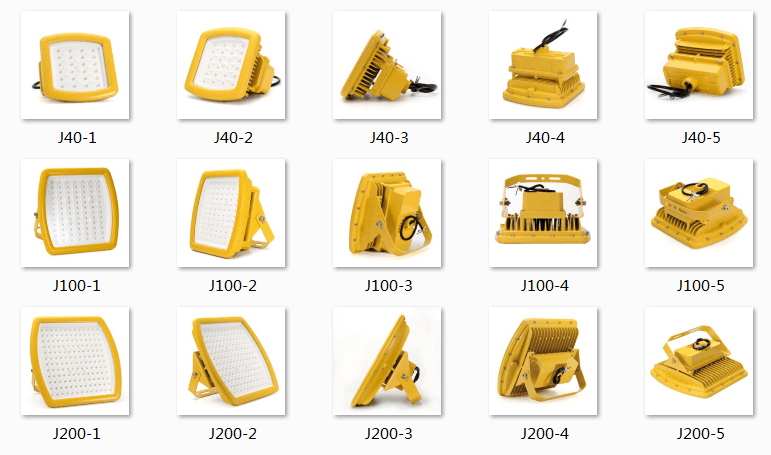

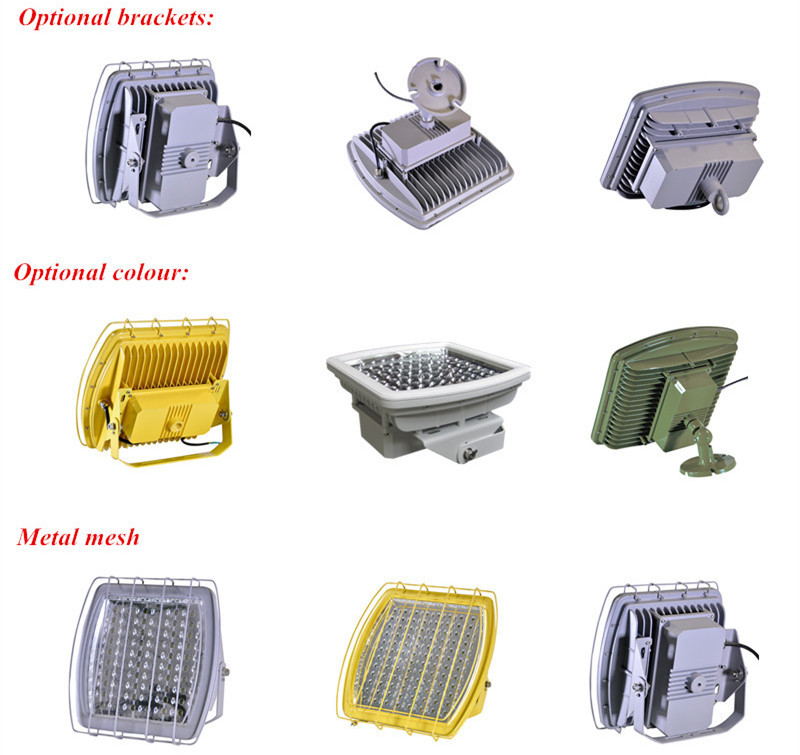

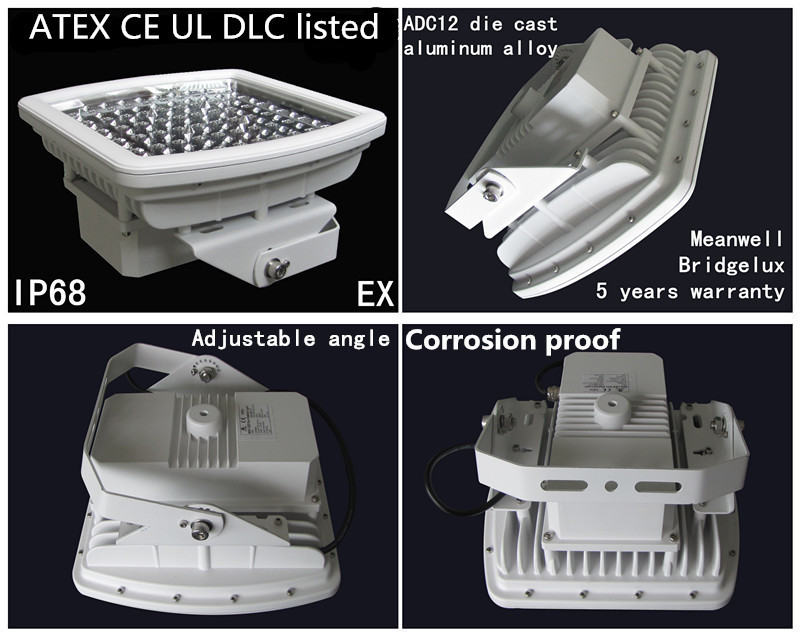

Product image:

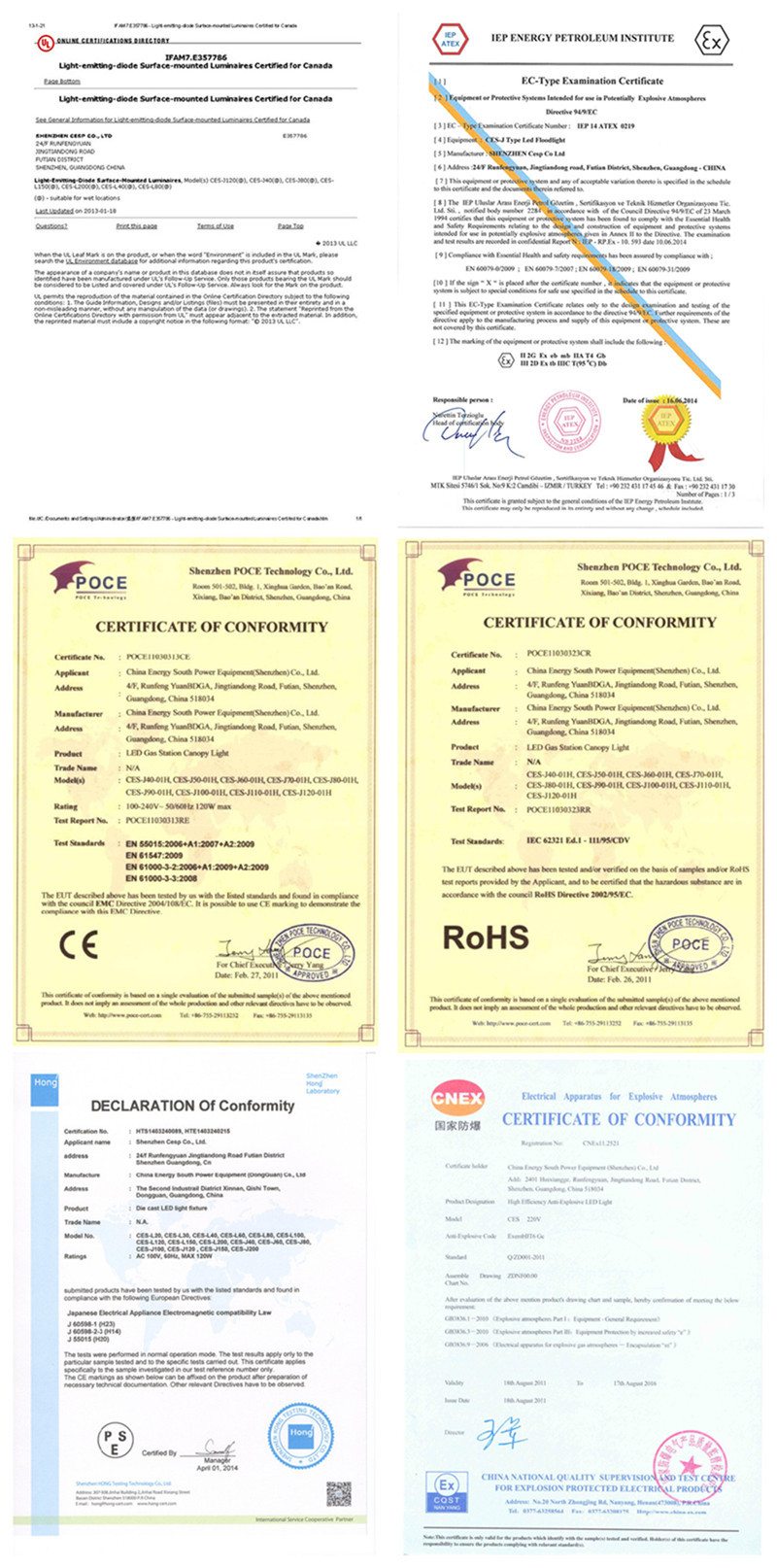

Certification:

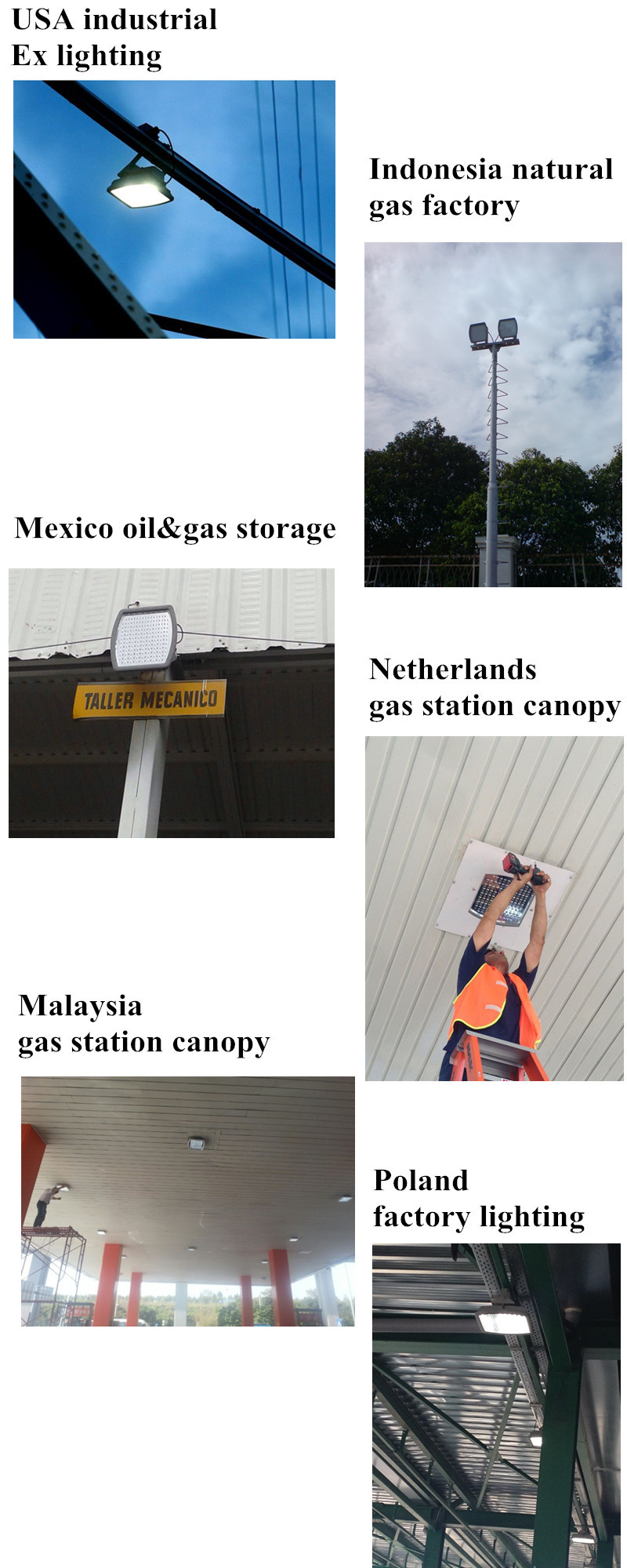

Application:
Shenzhen CESP is the largest production base for LED Explosion proof lights in China, who is also the first company to get UL844 certificate in China, please contact me for more
