- Light Source:LED
- Item Type:Street Lights
- Place of Origin:CN;GUA
- Brand Name:CESP
- IP Rating:IP68
- Lamp Luminous Flux(lm):13500
- CRI (Ra>):80
- Warranty(Year):5
- Working Temperature(℃):-40 - 50
- Working Lifetime(Hour):100000
- Certification:CCC
- Certification:CE
- Certification:Energy Star
- Certification:RoHS
- Certification:UL
- Input Voltage(V):100-277
- Lamp Power(W):150
- Lamp Body Material:Aluminum Alloy
- Model Number:CES-L001-150WL
- LED Light Source:Bridgelux
- Lamp Luminous Efficiency(lm/w):90
- Color Temperature(CCT):Warm White: 2700 - 4000k Cool White: 5500 - 6500k

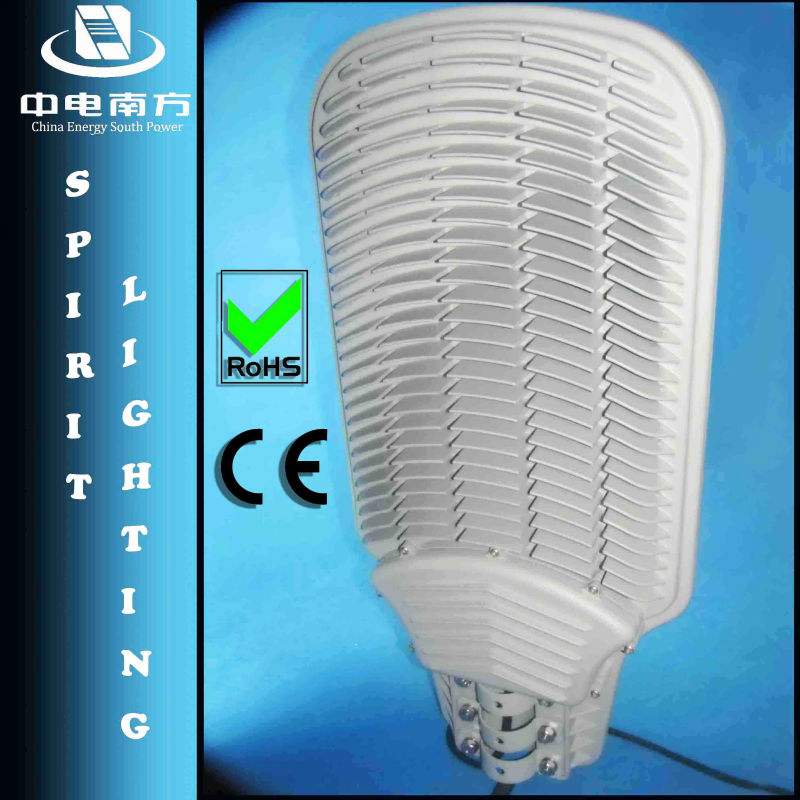

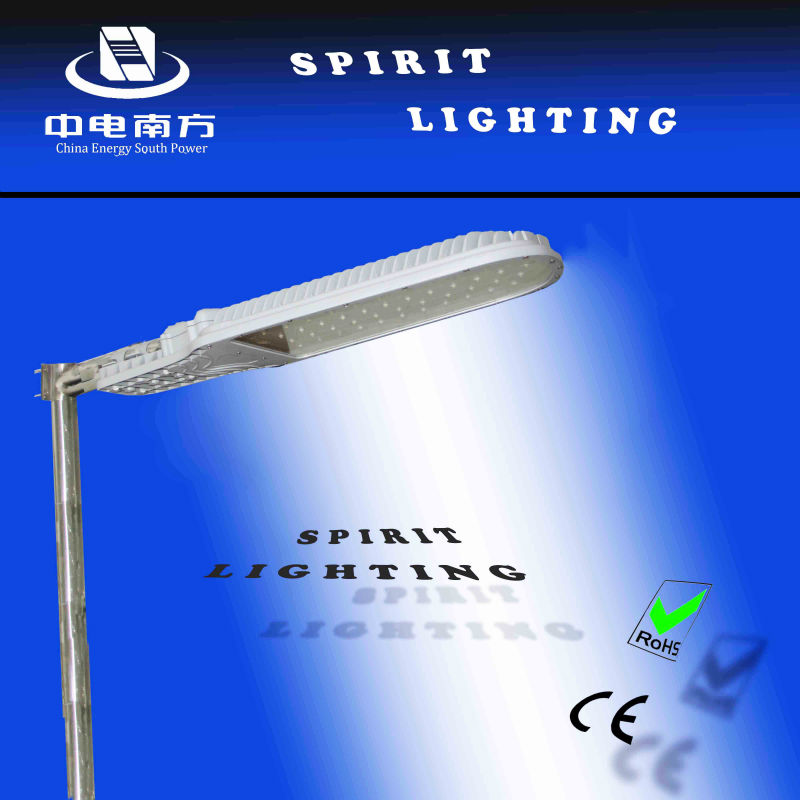

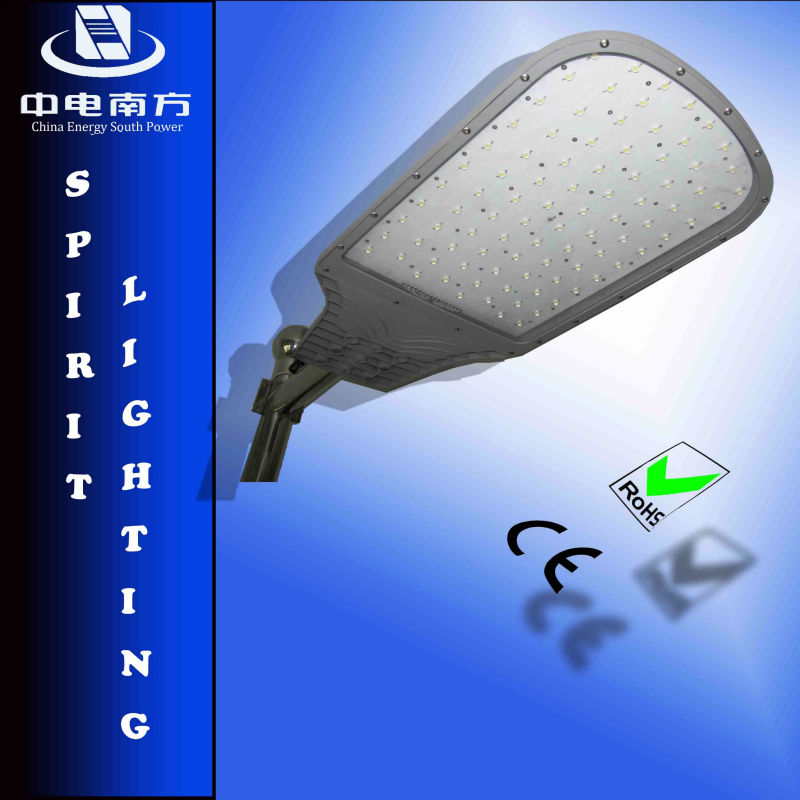

LED street light
| Model No: | CES-L001-150WL | CES-L002-120WL | CES-L002-120WS | CES-L003-90WL | CES-L003-90WS | CES-L004-60WL | CES-L004-60WS | CES-L005-30WL | CES-L005-30WS |
| Power: | 150W | 120W | 120W | 90W | 90W | 60W | 60W | 30W | 30W |
| Voltage/frequency: | 85~265V ,50/60HZ | ||||||||
| Power Factor: | ≥ 0.98 | ||||||||
| Power Efficiency: | ≥ 85% | ||||||||
| CRI: | >80, Could be as much as 90 ~100 | ||||||||
| Colour Temperature: | 5000-6500K | ||||||||
| Illuminance: | equivalent to HPS 550W | equivalent to HPS 400W | equivalent to HPS 250W | equivalent to HPS 150W | equivalent to HPS100W | ||||
| Lamp material: | High pressure intergrated die-casting Aluminium alloy housing, waterproof, anti-dust, anti-corruption, anti-thunderstrike, rapid heat-dissipation. | ||||||||
| Drive Style | Professional Static Sonatant Current | ||||||||
| Protection Grade: | IP68 | ||||||||
| Size: | 795*372*82.8 (mm*mm*mm) | 241*510*90 (mm*mm*mm) | |||||||
| Working Temperature: | -30 to 50 | ||||||||
| Net Weight: | 10kg | 10kg | 10kg | 10kg | 10kg | 8kg | 8kg | 7.5kg | 7.5kg |
| Lifespan: | 50,000-100,000 hours, 20,000 hours luminous maintenance over 97%, 50,000 hours luminous maintenance around 90%. | ||||||||
| Application: | for the lighting of streets, bridges and communities etc. | ||||||||
| Quantity of LED beads :(pcs) | 150*1 | 120*1 | 2040*5 | 90*1 | 1452*5 | 60*1 | 945*5 | 30*1 | 680*5 |
| Luminous Efficiency: | ≥80lm | ||||||||
| Luminous Flux | ≥ 12000lm | ≥ 9600lm | ≥9600lm | ≥ 7200lm | ≥ 7200lm | ≥ 4800lm | ≥ 4800lm | ≥ 2400lm | ≥ 2400lm |
| Price Terms | 1, MOQ 50pcs 2, Leadtime: 25~30 days 3, Payment by irrevocable L/C at sight or T/T in advance, 30% deposit, balance against B/L copy. | ||||||||
| Quality Warranty: | 5 years, 0.3~0.5% spare parts offered as aftersales service. | ||||||||
