- Place of Origin:CN;GUA
- Brand Name:Sprite
- Model Number:CES-L120-RF
Introduction:
1, Unique integrate Die-Cast Aluminum with self- clean feature, enable efficient heat transmit function, effectively increase the life- span of light fixture.
2, Unique Integrate Light distribution system, enable maximization of Light output.
3, With world class quality LED chip and electronic component, enabling reliable quality.
4, High energy saving, energy saving result immediately.
Key Feature:
- 50,000 to 100,000 hours’ life, 10 times long as fluorescent lamp
- Die-cast aluminum by 1800 Ton of pressure to make the body strong enough.
- Powder Coated (similar to vehicle’s coating) and holder are cover with a thin layer of Zink, color can be customizable.
- IP 68, highest rating of protection.
- Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.
- 5 year warranty.
- Best driver: Meanwell driver.
Specifications:
Total Power Consumption | 120w |
Initial Luminous Flux | ≥ 12,000 lm |
LED chip | 120 pc 700ma USA BridgeLux |
Luminous Efficacy (/Efficiency) | 120lm-130lm @ 350ma (350ma =1Watt) |
Fixture Luminous Flux | ≥ 9,840lm |
Illuminant: | Equivalent to HPS 300~400 W* |
Input Voltage | 100-277VAC |
FrequencyRange: | 50/60HZ |
Power Factor: | ≈ 0.98 |
Power Efficiency: | ≈ 90% |
CRI: | ≥ 70 |
Color Temperature: | Warm White : 2700-3500K Day Light White : 5500-6500K |
Drive Style | Professional Static Sonatant Current |
Protection Grade: | IP68 |
Light Body & Lampshade Material | High Pressure integrated die-casting Aluminum alloy housing & Toughened Tempered Glass |

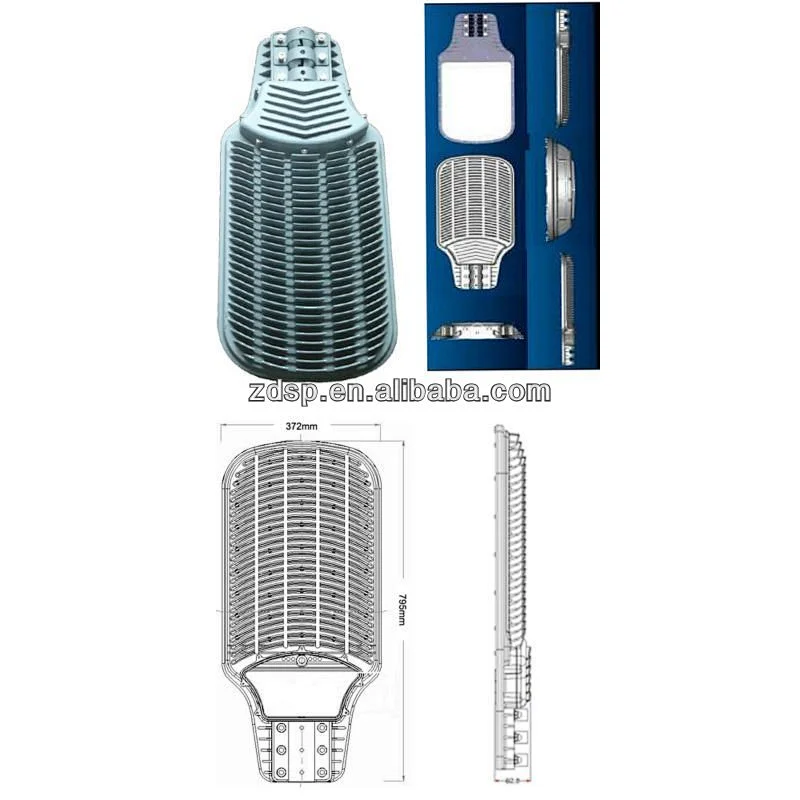

Lamp Dimension | 795 x 372 x 82.8 mm |
Package size | 860 x 450 x 160 mm |
Working Temperature: | -40°C to 50°C |
Net Weight (lamp): | 13 KG |
Lifespan: | 50,000-100,000 hours |
Application

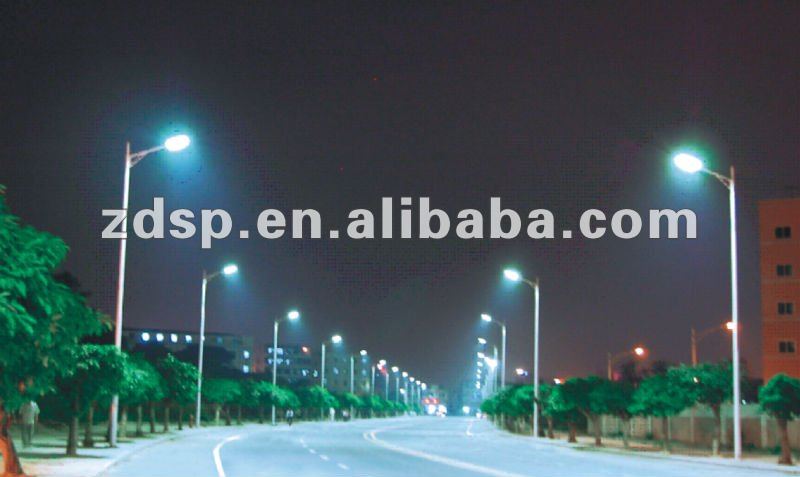

To be use in Main road, sub-road, high-way, village street (solar & wind power friendly)
Certificates Show:

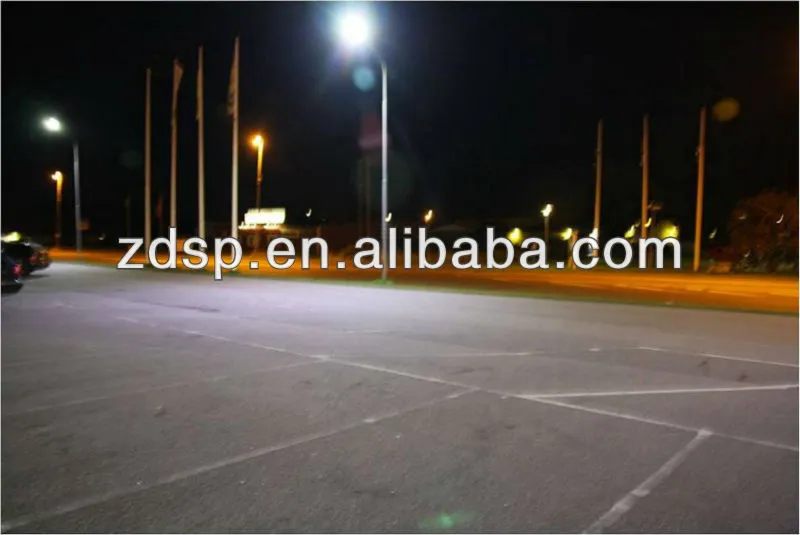

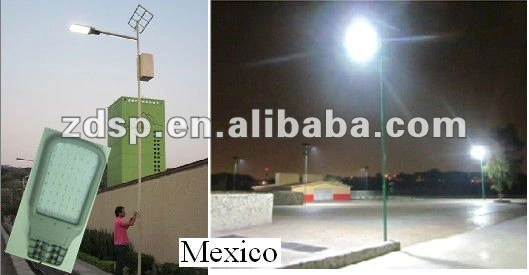

Projects Show:
Why us?
1). Original the superconducting heat ADC12 die-cast aluminum arc heat sink system, exponentially increase the natural cooling area, and has super air convection cooling function, effectively extending the lamp life and improve the use of performance.
2). Original designed die casting lamp shell completely closed, and the use of high-performance waterproof and fireproof silicone, protection grade IP68 waterproof anti-leakage effectively prevent the failure occurred, safe and reliable.
Experienced production team and quality control team make sure the better quality.
3). Unique heat sink wash tank design and anti-dust, anti-corrosion material, make lamp shell has a self-cleaning function, effectively prevent the accumulation of dust, grease, to protect lighting performance.

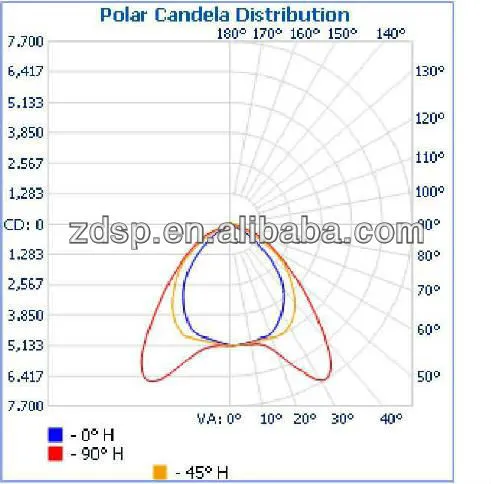

4). Original second optical design of the the integrated overall mirror condenser Cup and diamond-shaped reflector cone, utilized the light energy and greatly enhanced lighting effects.
5). Gas station lights, tunnel lights, stadium lights series by the Chinese explosion-proof certification, and has passed CE, RoHS, UL, cUL certification.
