- Light Source:LED

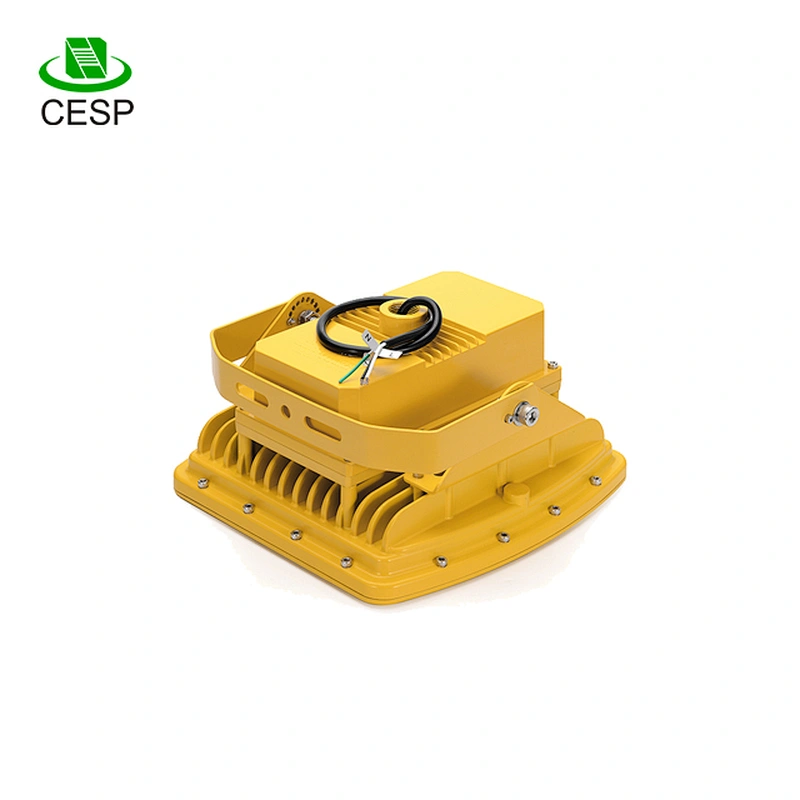

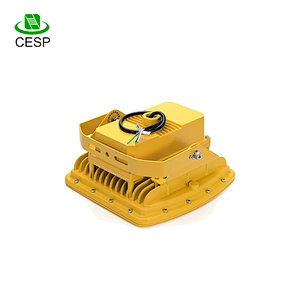

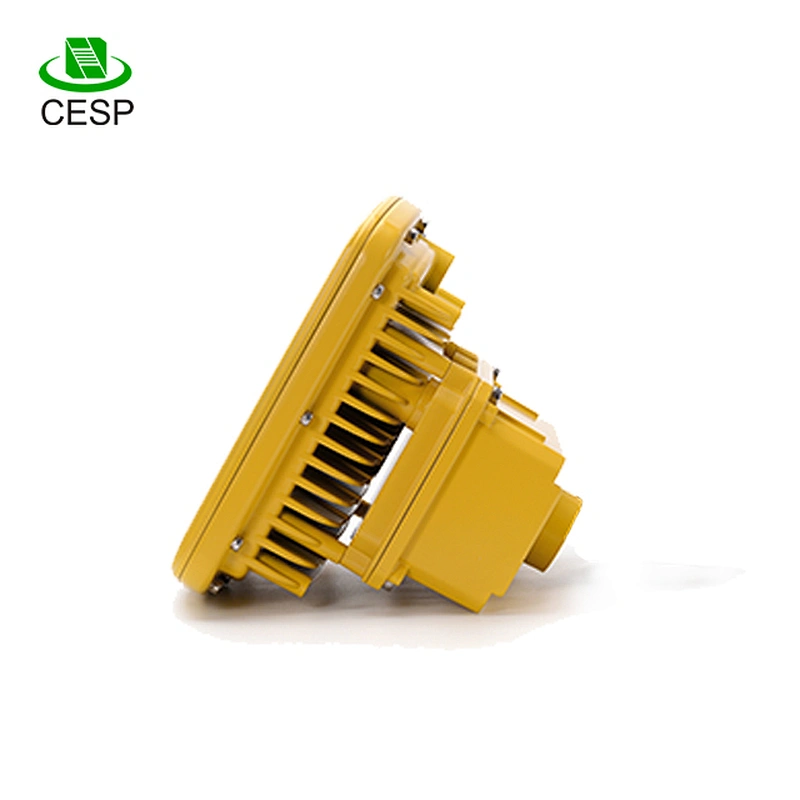

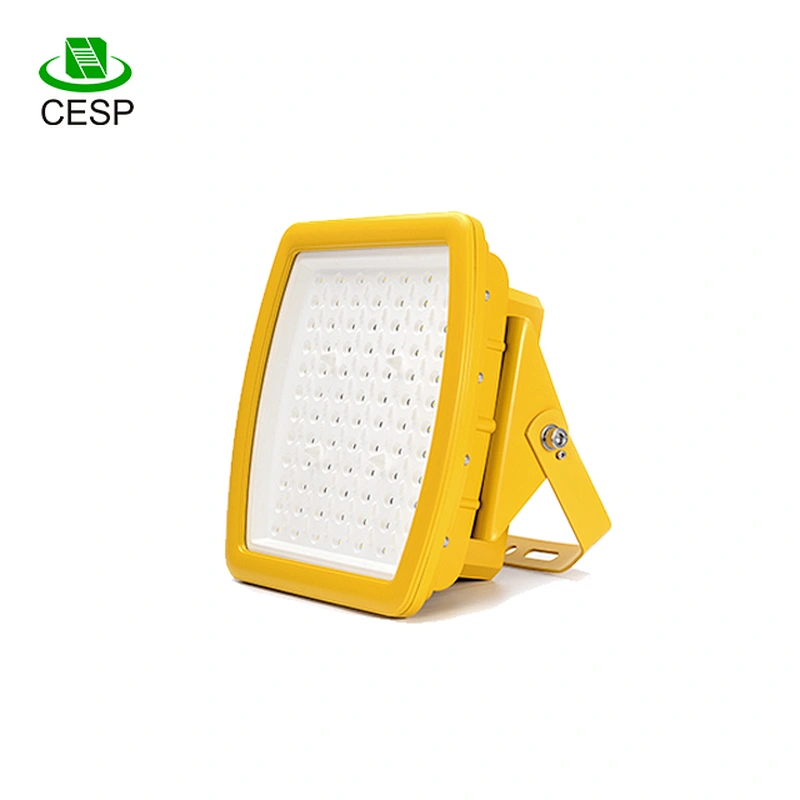

- Item Type:Explosion-proof Lights
- Place of Origin:CN;GUA
- Color Temperature(CCT):Cool White
- Model Number:CES-J40~120-01H
- Brand Name:CESPE
- Input Voltage(V):AC100-277V
- Working Temperature(℃):-40 - 50
- CRI (Ra>):73
- LED Light Source:Bridgelux
- IP Rating:IP67
- Working Lifetime(Hour):1000000
- Lamp Luminous Flux(lm):200000
- Lamp Power(W):185
- Emitting Color:White
- Certification:C-tick
- Certification:CCC
- Certification:CE
- Certification:CQC
- Certification:EMC
- Certification:PSE
- Certification:RoHS
- Certification:SAA
- Certification:UL
- Lamp Luminous Efficiency(lm/w):115
- Base Type:
ATEX: Group II Zone1&Zone2, Zone21&Zone22
UL844: Class I Division 2 Group A B C D
IECEx&CNEX
FEATURES
1.High Efficacy low decay 700MA 45 Mil LED chip
2.High heat transmit die cast housing ADC12 aluminum, patent design, IP68
3.Shock and vibration resistant tempered glass, super clear 95% light transmit rate
4.Anti-glare.Scientific optical reflector design, making the light more focus,even, comfortable for eyes
5.Original Bridgelux LED source,high luminous efficacy and long lifespan
6.MEANWELL HLG series driver, the highest level of MEANWELL driver
7.Surface treatment-Powder painted, salt resistant and chemical resistant, also hard for dust to accumulate on the surface
8.2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature
9.Working temperature: -30ºC to 50ºC.
Certification: ATEX, UL, CUL, DLC, PSE, SAA&C-TICK, CQC, CE, ROHS, IP68
SPECIFICATION
CERTIFICATES
APPLICATIONS
- Suitable for gas station, petroleum and chemical industries, coal mine, military, airport, warehouse, marine etc.
- Zone1 & Zone2 gaseous environment, and Zone21 & Zone22 dust environment.
