- Type:canopy led canopy light
- Certification:ATEX CE UL DLC SAA

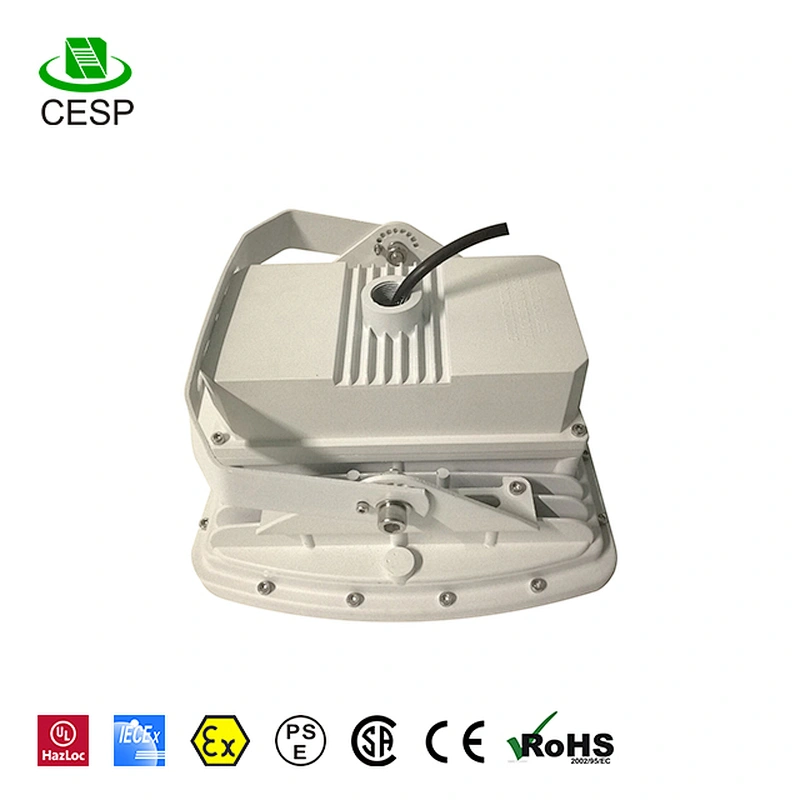

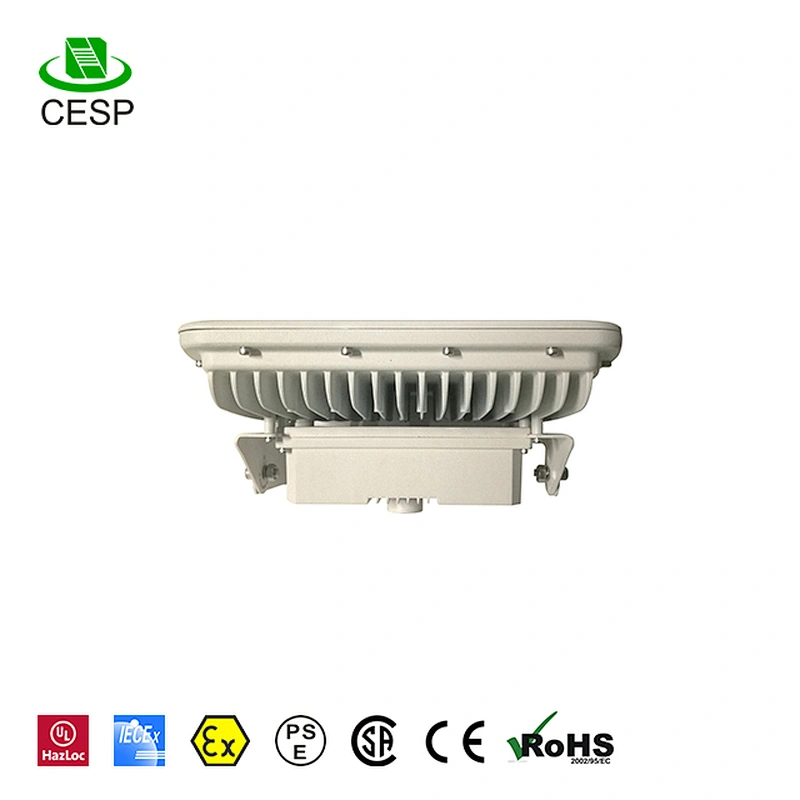

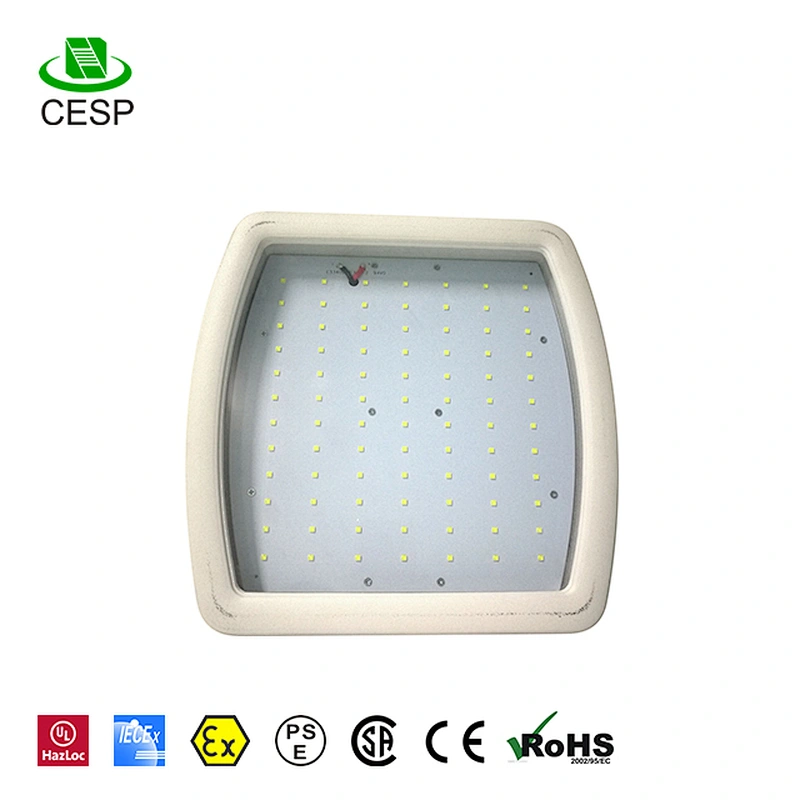

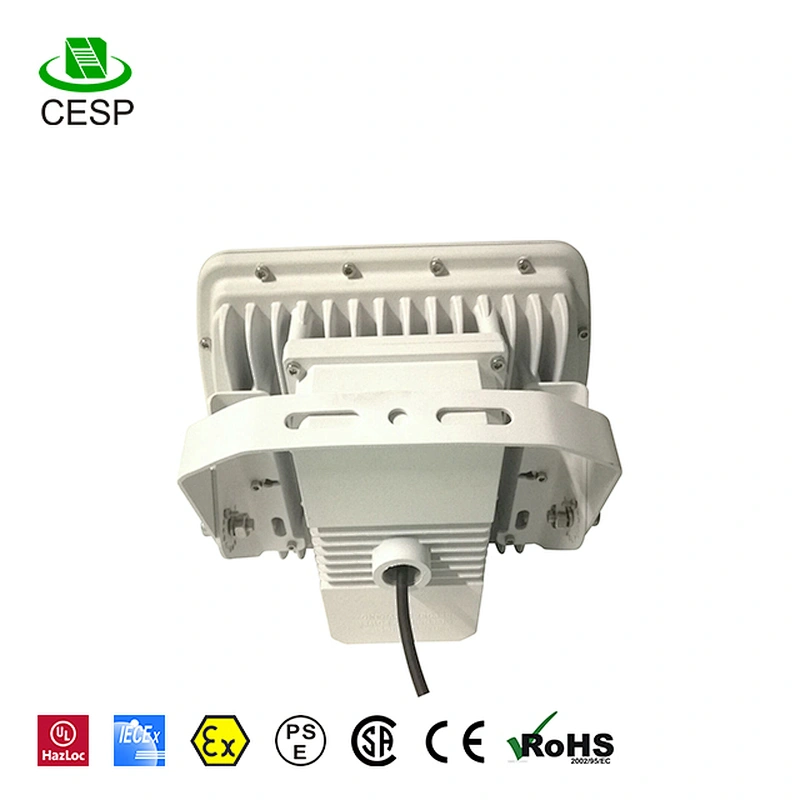

CE UL ATEX listed gas station led canopy light fixture
Key features;
-Die-cast aluminum by 1800 Ton of pressure to make the body strong enough.
-Powder Coated (similar to vehicles coating) and holder are cover with a thin layer of Zink, color can be ---customizable.
-IP 68, highest rating of protection.
-Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.
-5 year warranty.
-Best driver: Meanwell HLG driver.
Main Technology | |
LED Chips: | BridgeLux LED chips packaged professionally ensure the light source kept in optimum performance; mirror surface processed technology collect and reflect the invalid light into efficiency; use of lens controls the horizontal and vertical beam angle actively. |
Power Supply: | To use world’s leading brand MeanWell power supply ensure the fixture works in stableness with better performance and enjoy its long life; power supply is CE RoHS TUV CB certificated. |
Heat Dissipation: | LEDs combined with aluminum radiator directly and closely make the LEDs have better performance of heat dissipation; sufficient area of aluminum radiator and full range air permeability of the fixture reduce the optical attenuation and control LEDs failure. |
Specification:
Total Power Consume | 120w |
Whole Fixture Lumen | 10800 lm |
LED Chip/Brand | Bridgelun or Cree |
LED Efficacy | 120lm-130lm(350Ma) |
Illuminant | Equal to HPS 400-500w |
Input voltage | AC100-277V |
Frequency | 50/60Hz |
Power Factor | > 0.976 |
Driver Efficiency | >90% |
Color Rendering Index | CRI >70 |
Color Temperature | Warm White: 2700K-4000K Cool White: 5500-6500K |
Driver | Meanwell HLG Series |
Protection Grade | IP68 |
Body Material | Die Cast Aluminum |

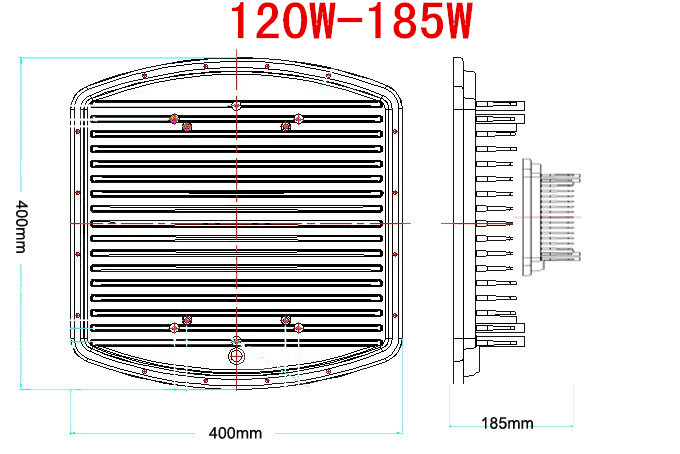

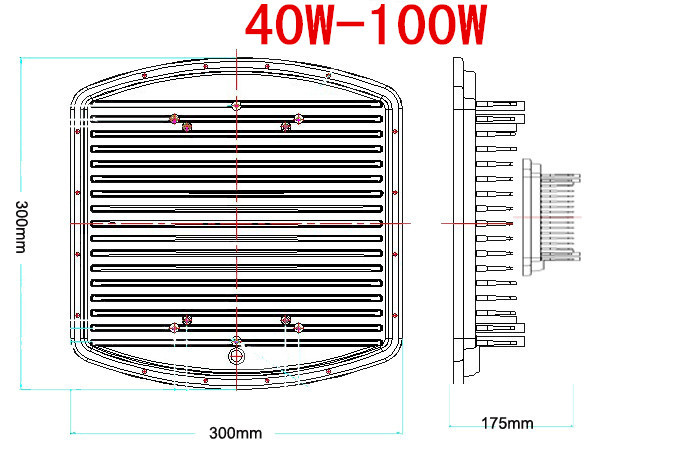

| Dimension
| 400mm*400mm*185mm |
Feature | Anti Explosive: Class E Gas filled environment- Exem T6 Gc e class |
Operating Environment: | -40C~50C |
LED Chip | USA Bridgelux chip or Cree chip |
LED Life Span | >50,000-100,000 hours |
Housing material | ADC12 high thermal conductivity material, anti-dust thermal conductivity coatings |
Protection screen material | 4mm(thickness) toughened glass |
Net weight | 12.5kg |

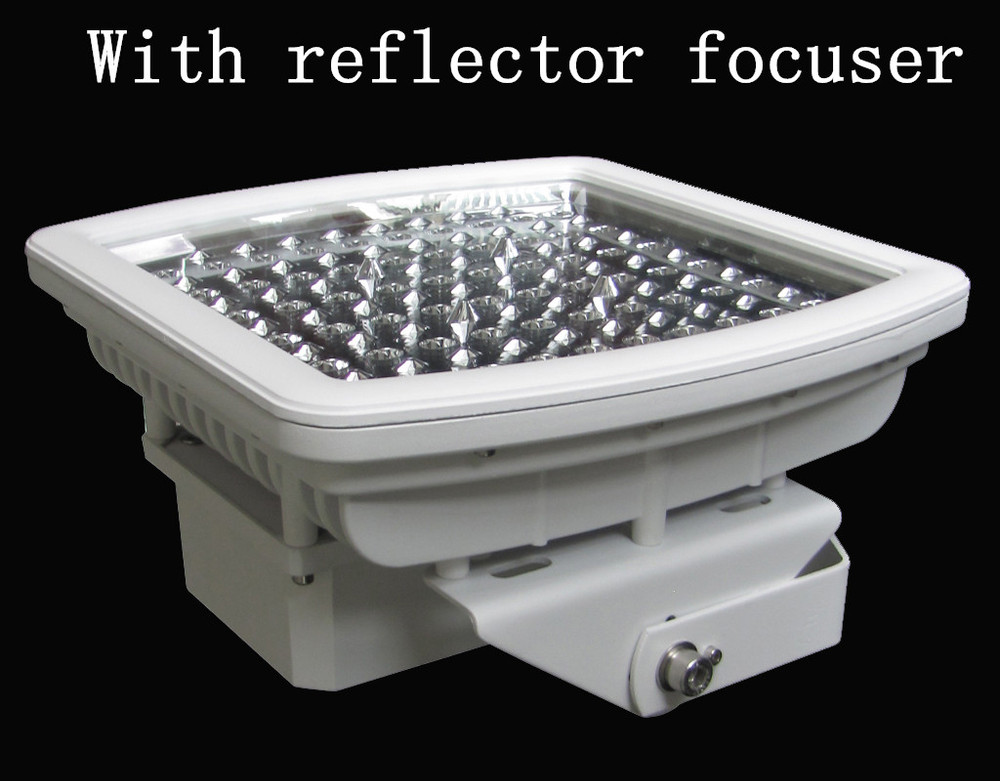

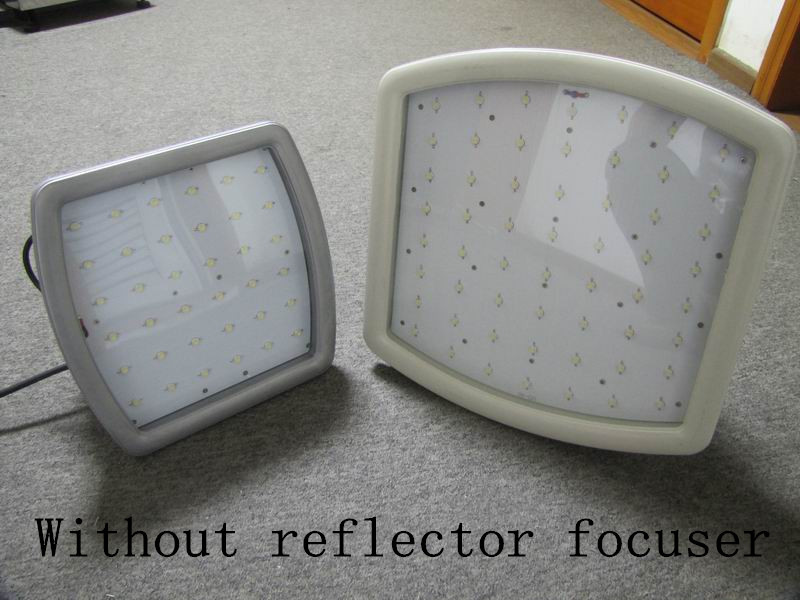

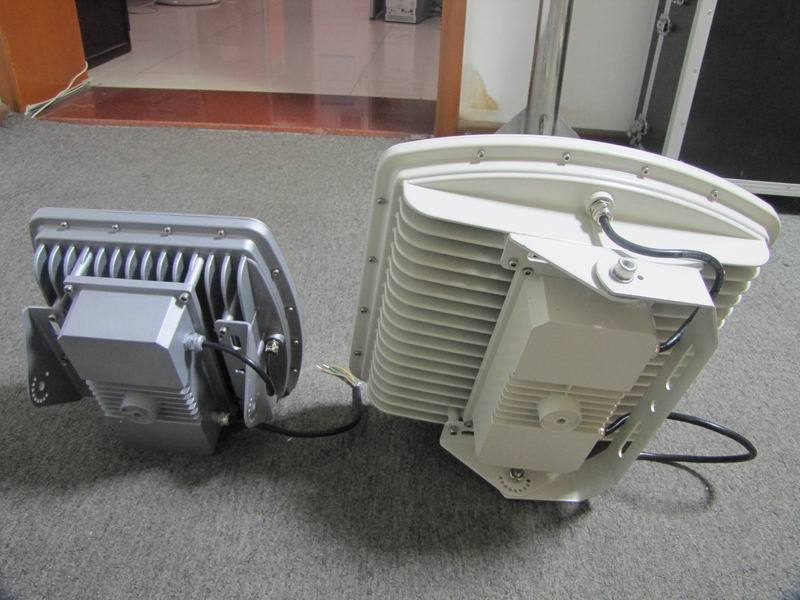

Product image:

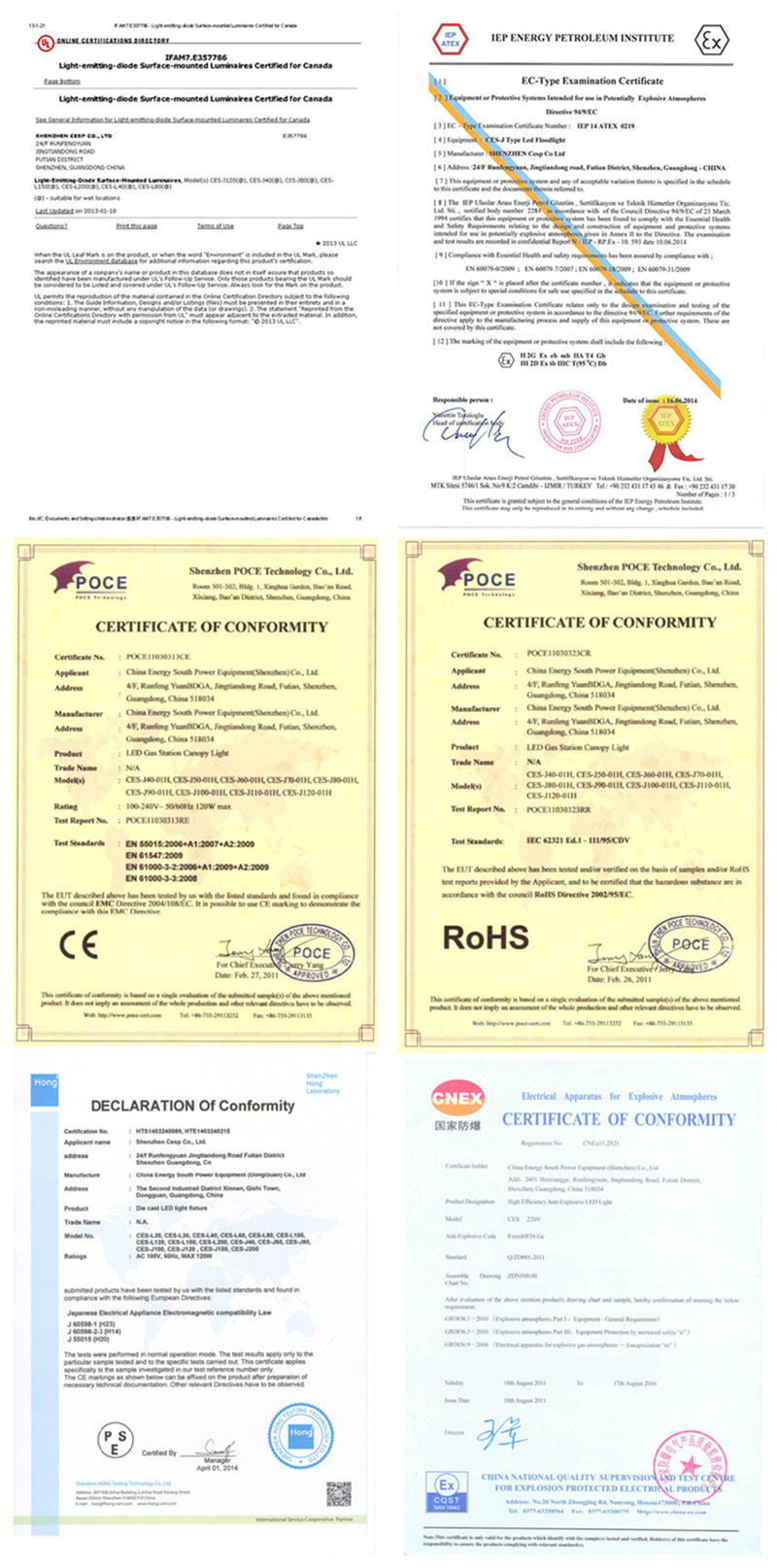

Certification:

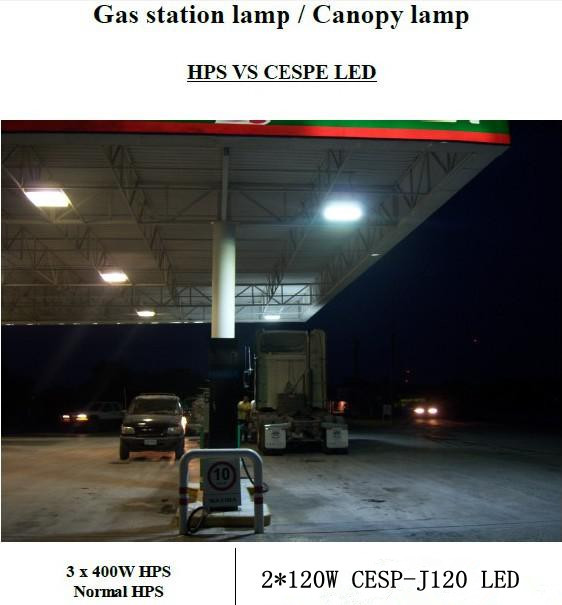

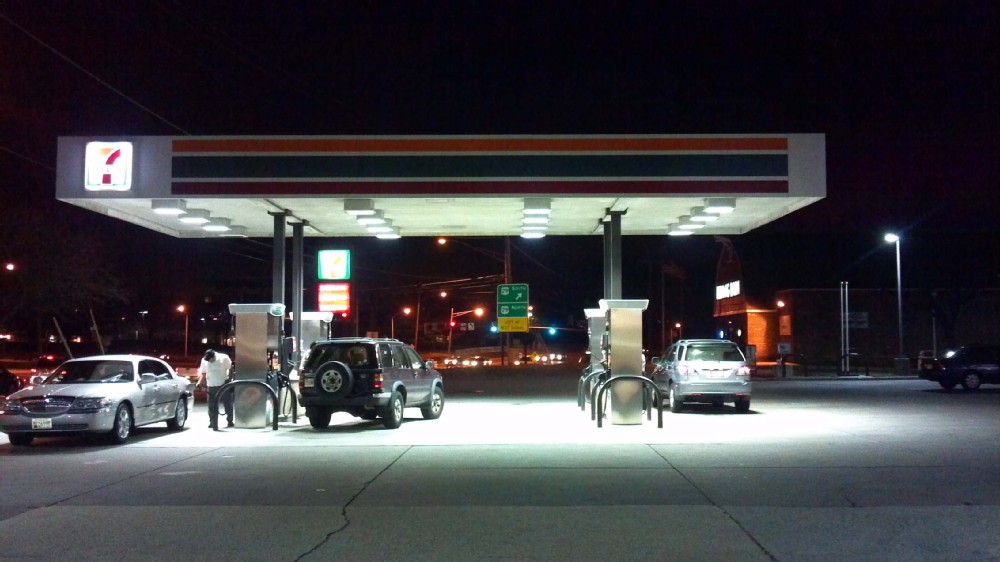

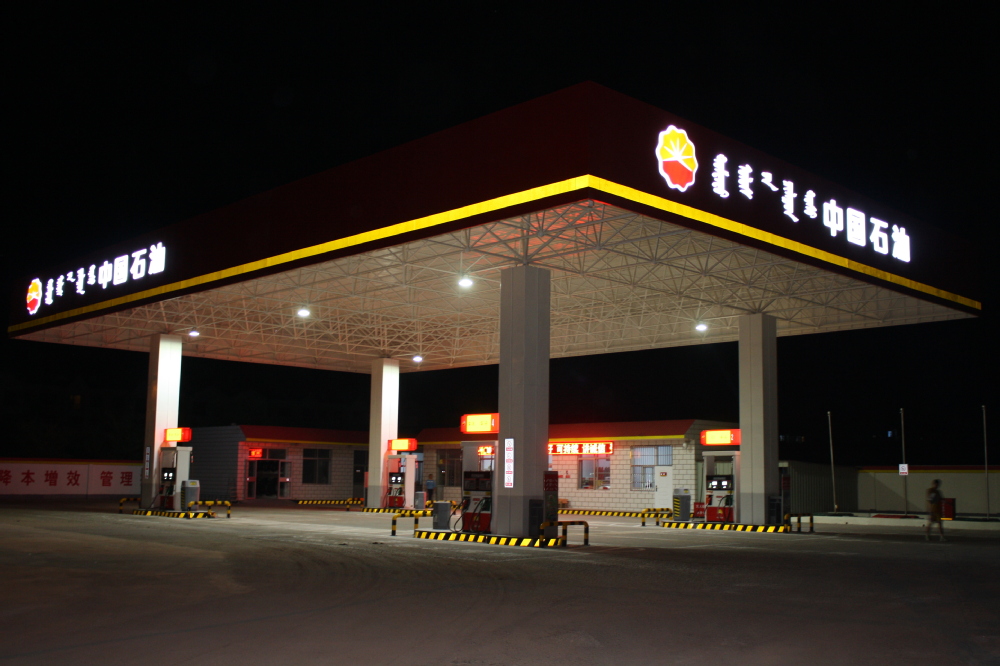

Project show:

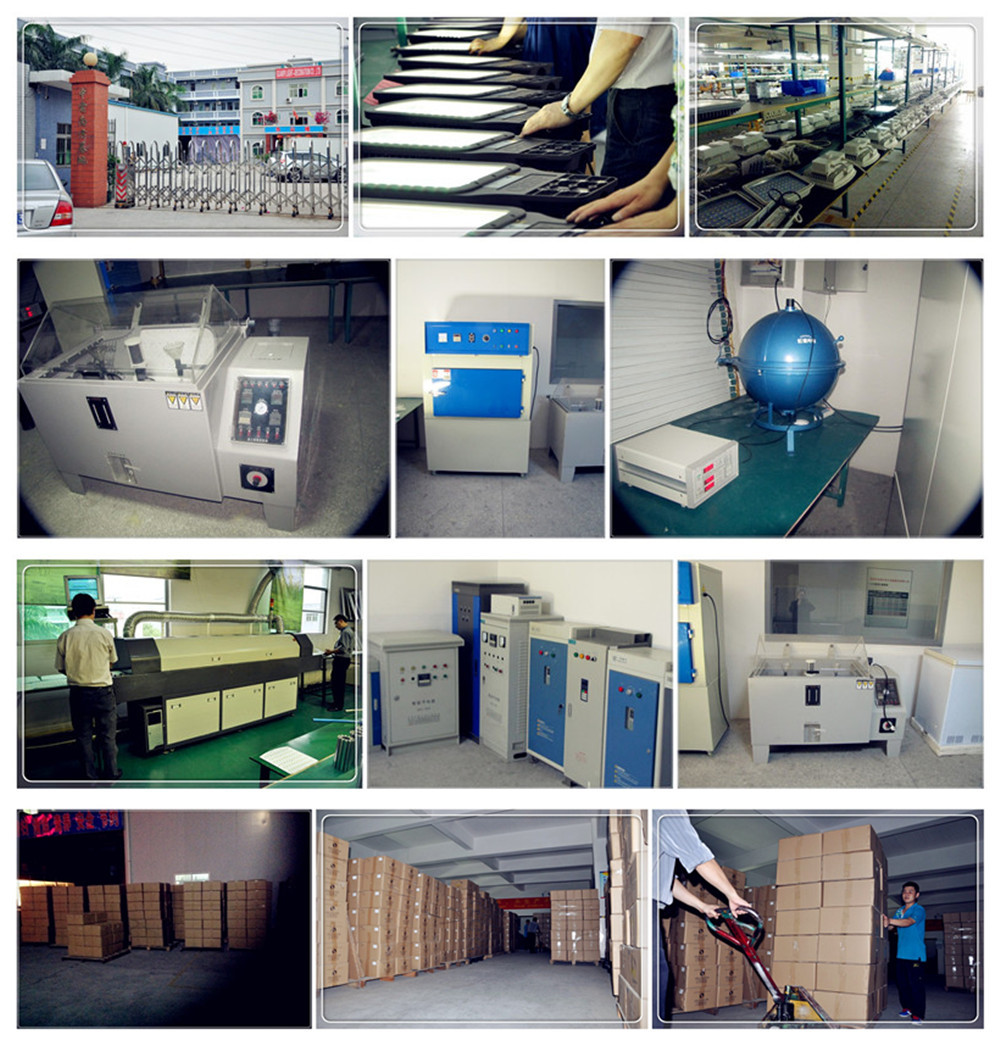

Factory show:
