- Place of Origin:CN;GUA
- Model Number:CES-J40-S
- Brand Name:Spirit
1.led Explosion-proof LED Miner light 1.5 years warranty
2:Light Source: Bridgelux/C
3:Patent unique design
4.led miner lamp

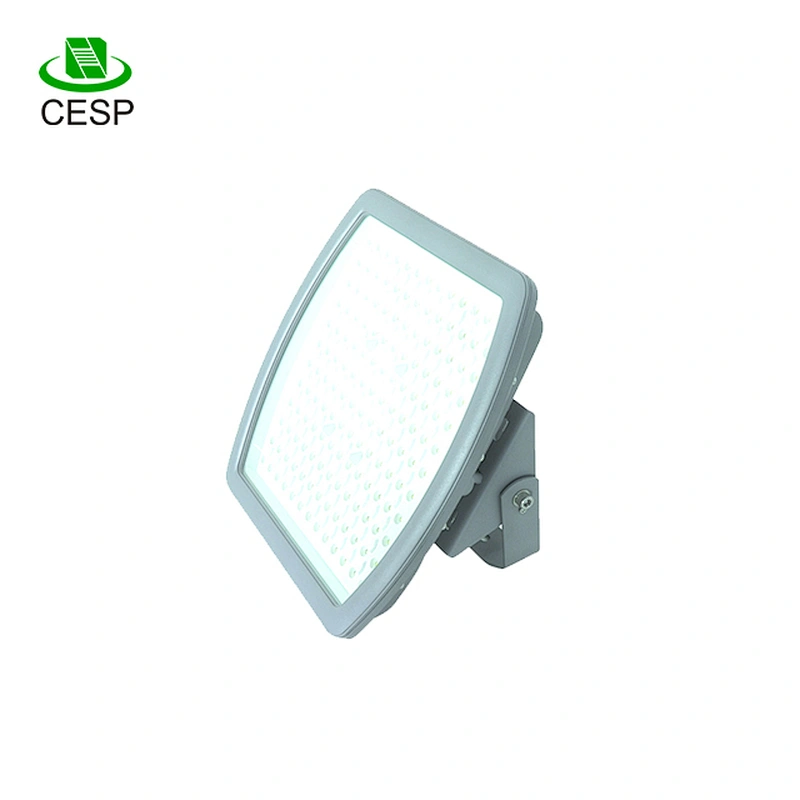

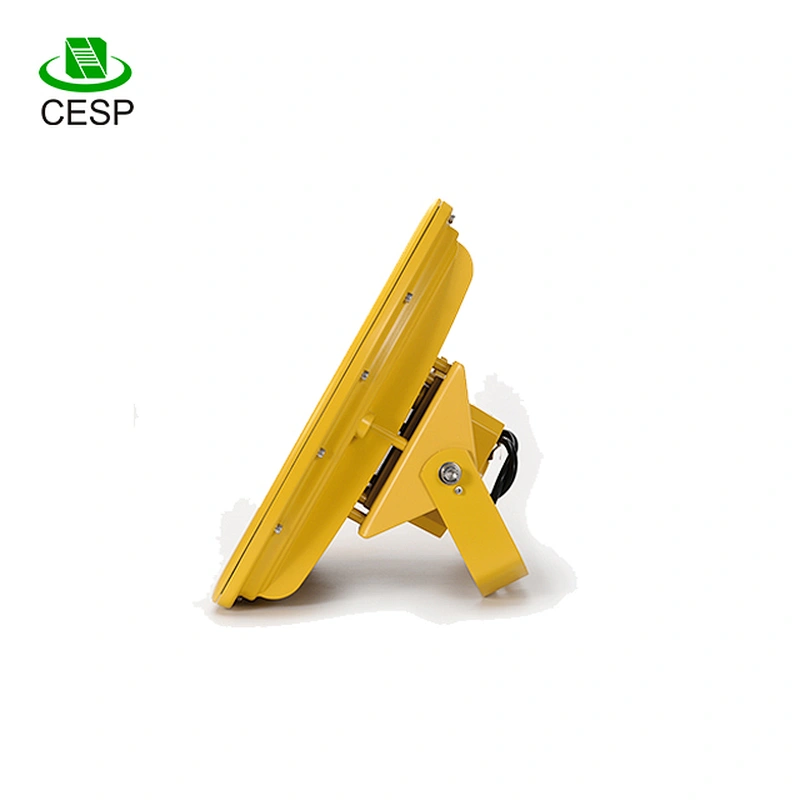

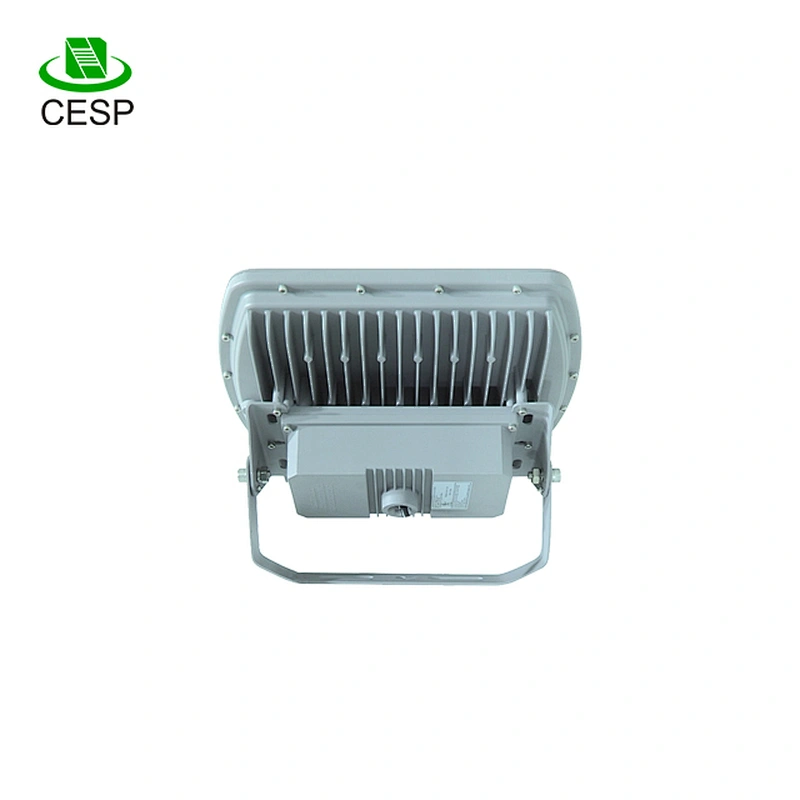

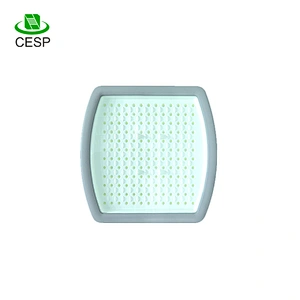

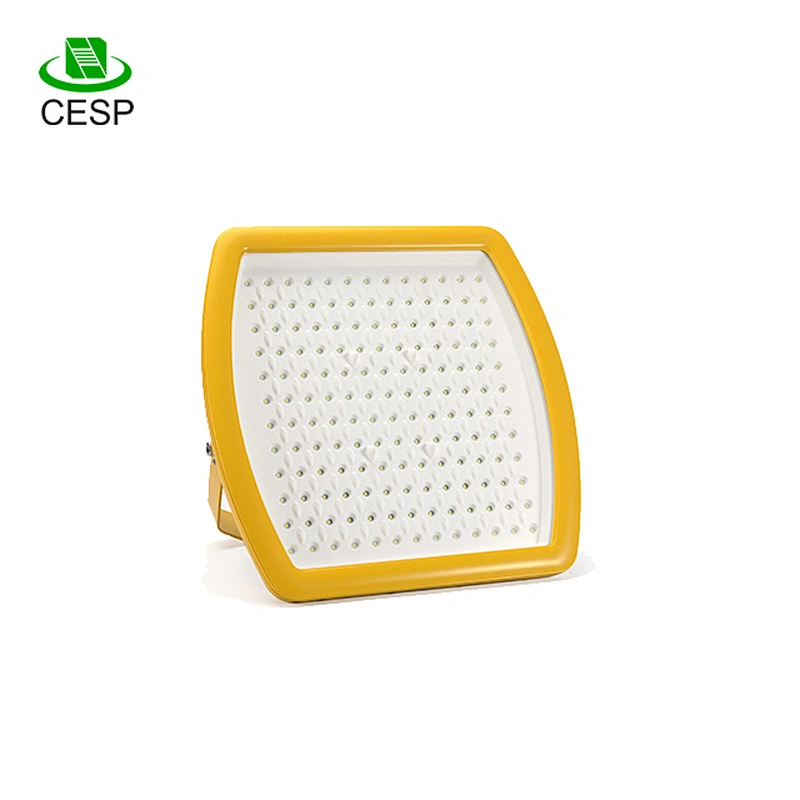

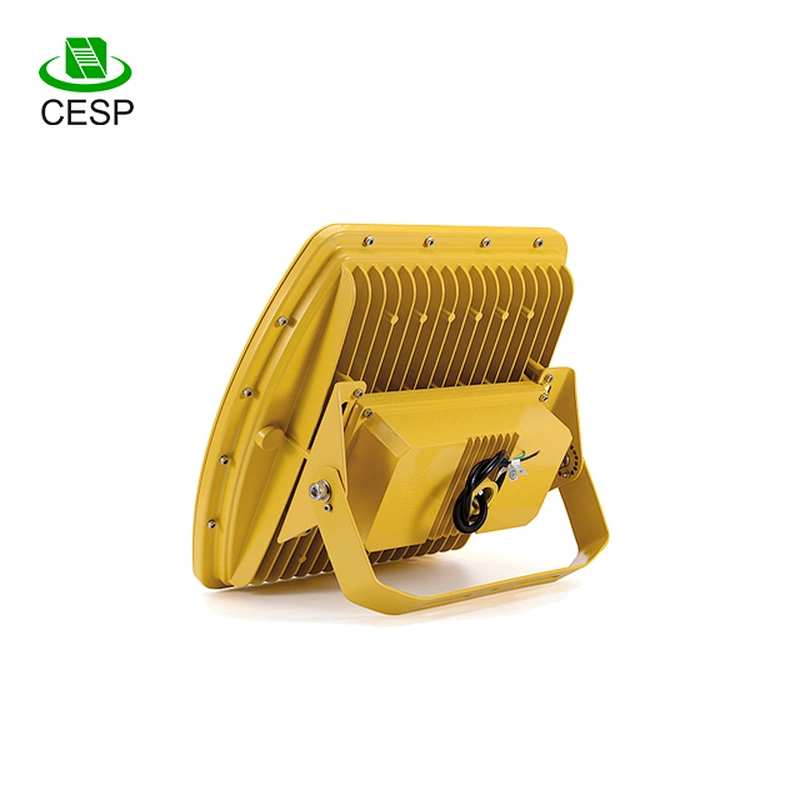

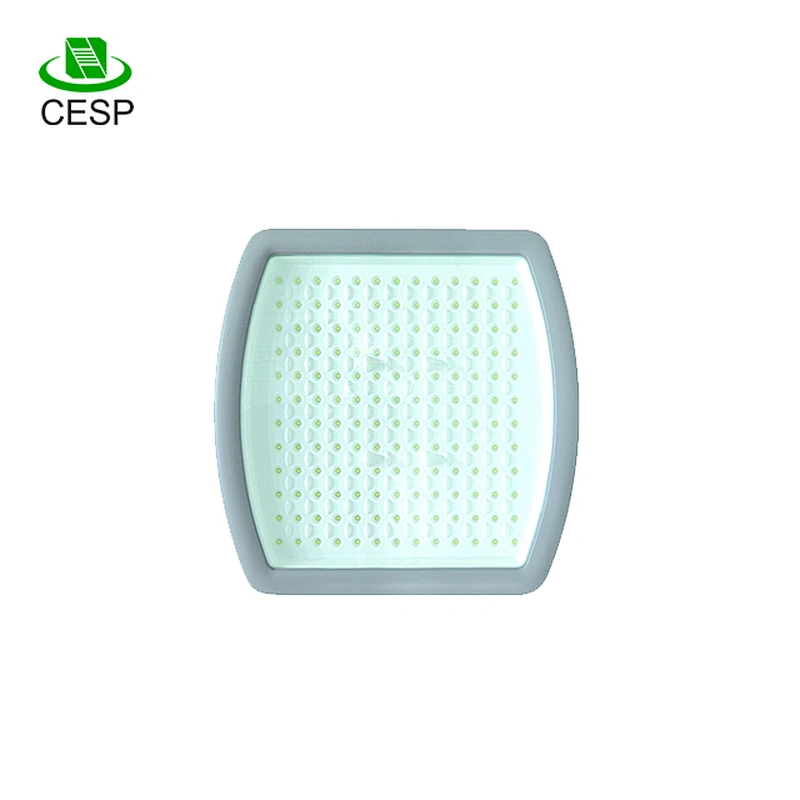

Explosion-proof LED Miner light :
1.Power: 20W/30W/40W
2.Input voltages: AC100-277V
3.Warranty: 5 years warranty
4.Certification: UL/CUL/DLC/CE/ROHS
Model No. | CES-J40-S | CES-J40-S (D30W) | CES-J40–S (D20W) |
Description | Replacing 150 w HPS | Replacing 100 HPS | Replacing 70 w HPS |
Total power | 40 | 30 | 20 |
Angle | 120 | 120 | 120 |
Nominal lumens | 3,600 | 2700 | 1800 |
Drive current | 350 mA | 350 mA | 350 mA |
# of leds | 24 | 24 | 24 |
System efficacy | 90 LM/W | 90 LM/W | 90 LM/W |
Dimensions | LENGTH : 200mm WIDTH : 200mm HEIGHT : 270mm WEIGHT: 4 KG | ||
Led light engine | High quality Bridgelux 700Ma 45Mil Efficacy : up to 150lm @ 350mA (per watt) Rated Life of 100,000+ hrs Operation temp: -30 ºC to +50 ºC No toxic chemicals/Rohs compliant 70%-80% saving compare to HPS/MH | ||
Product feature | 5 years warranty Highest Ingress Protection rating : IP68 | ||
Appearance | Material: Die Cast Aluminum Light Color option: Cool White Warm White Custom color LENS: Super Clear Tempered Glass | ||
Electrical characteristics | Wide AC input: 90-305 VAC Power Factor: ~0.98 Total Harmonic Distortion: < 10% Surge protection: IEC/EN 61000-4-5 EMC test standard Meanwell HLG Series (Taiwan Excellence 2011 award). | ||
Installation | Easy installation – plug and play Wall mount/Celing mount bracket Adjustable Angle | ||
Qualification | CE: Recognition with CNAS ISO 14001: Recognition with IAF & CNAS ISO 9001: Recognition with IAF & CNAS | ||
1) Professional team will provide personalized solutions for your project;
2) Die-cast aluminium alloy housing guarantees its high soundness;
3) Project rectangular light spot with bat-wing distribution curve flux and keep good light evenness within 40m distant;
4) Excellent heat radiation character reach a temperature raise below 23K;
5) Tool free for maintenance,easy to instal it;
6) Horizontal or vertical installation are available;
7) Original America imported CREE /Bridgelux leds and Mean well HLG Series power supply
8) Superior tempered glass diffuser has a good light transmittance and invariant color;
9) Long life power driver ensures above 50000 hours use-life and has short,open-circuit and over-heat protection.
10) Our products had adopted ISO9001:2008,ISO14001:2004
Quality System Authorities and passed UL,CUL,DLC,IP68,CNEX,ATEX,CE,ROHS etc.
11) 5Years warranteefrom the time we make delivery, the longest guarranty in the market.
12) MOQ: 1pc. anyway small order or big order
13) Ability of production:
for sample: within 3-7working days, for normal order: within 10-20 working days.
14) Customernized products are welcome, OEM, ODM service accept.
15) Free Customernized packing box, with your company logo, slogan etc.
